Pinout Values and Diagnostic Parameters
PREPARATION -

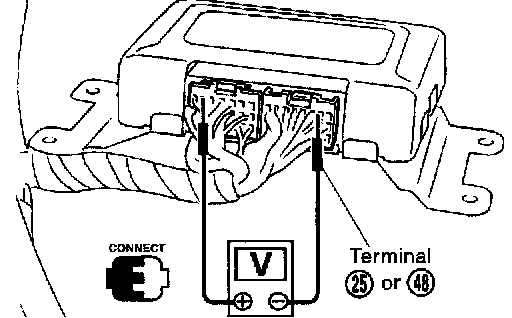

Measure voltage between each terminal and terminal 25 or 48 by following "
TCM INSPECTION TABLE".

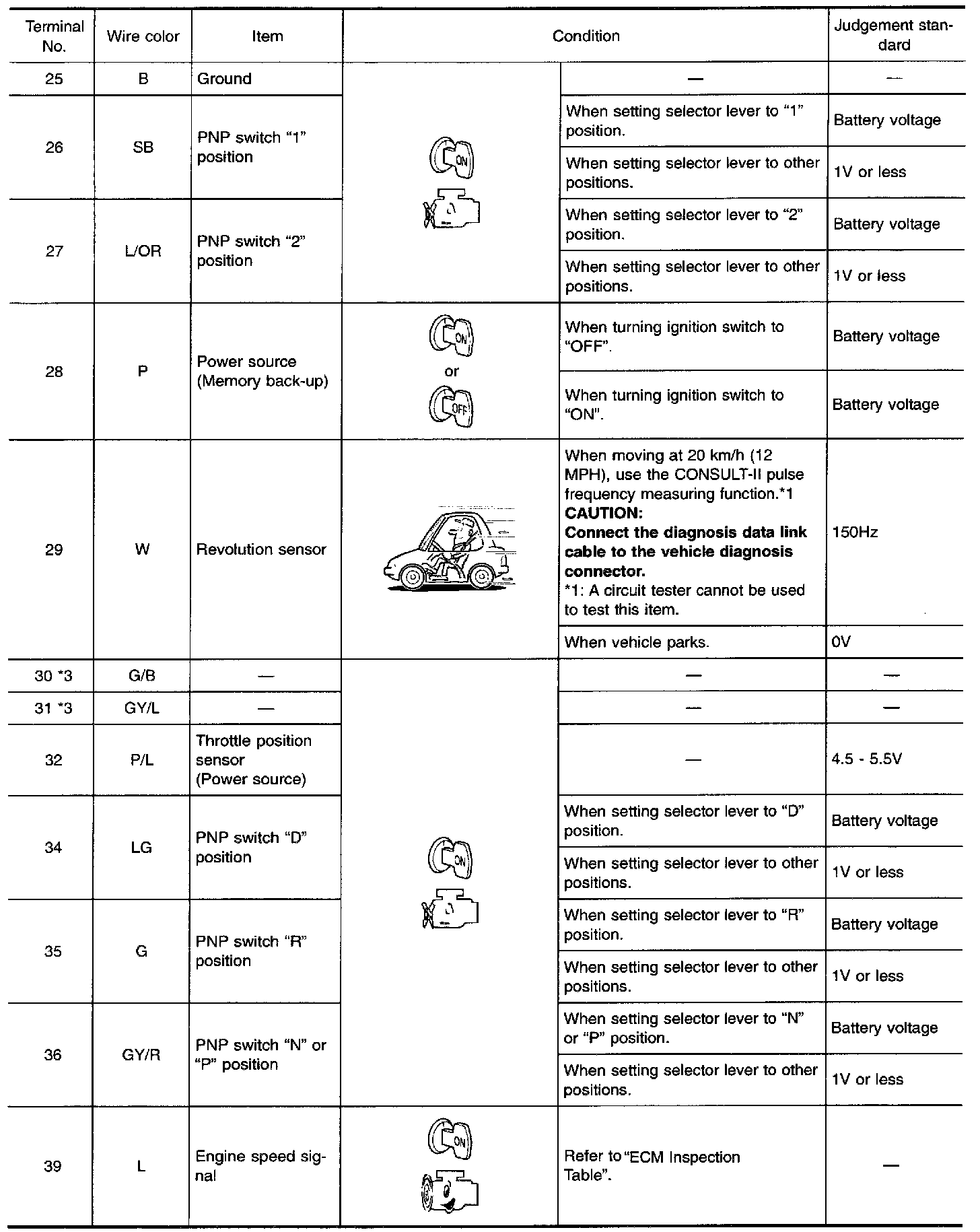

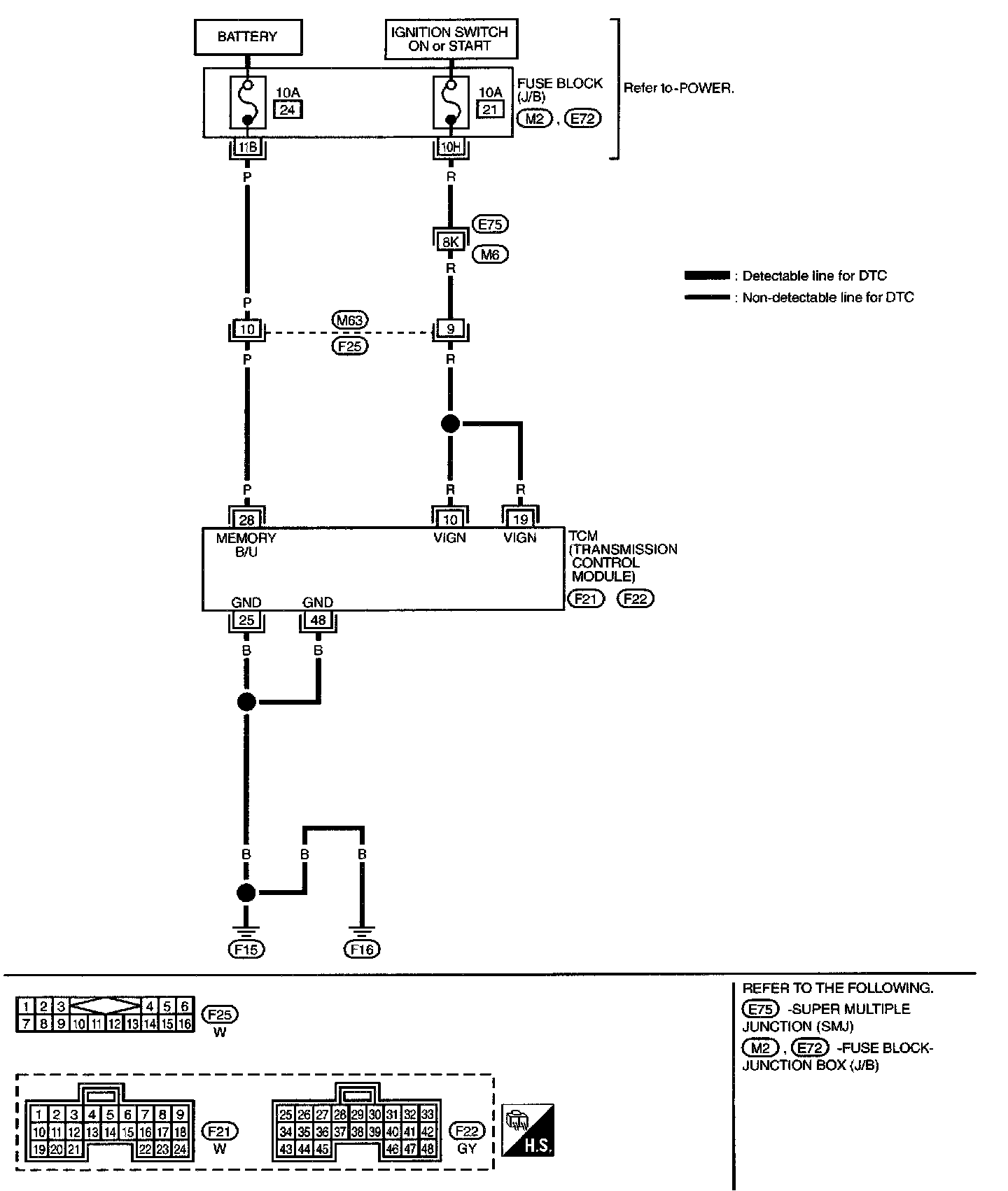

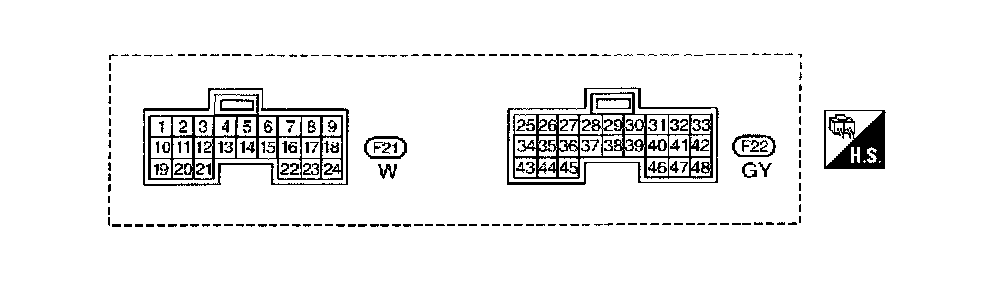

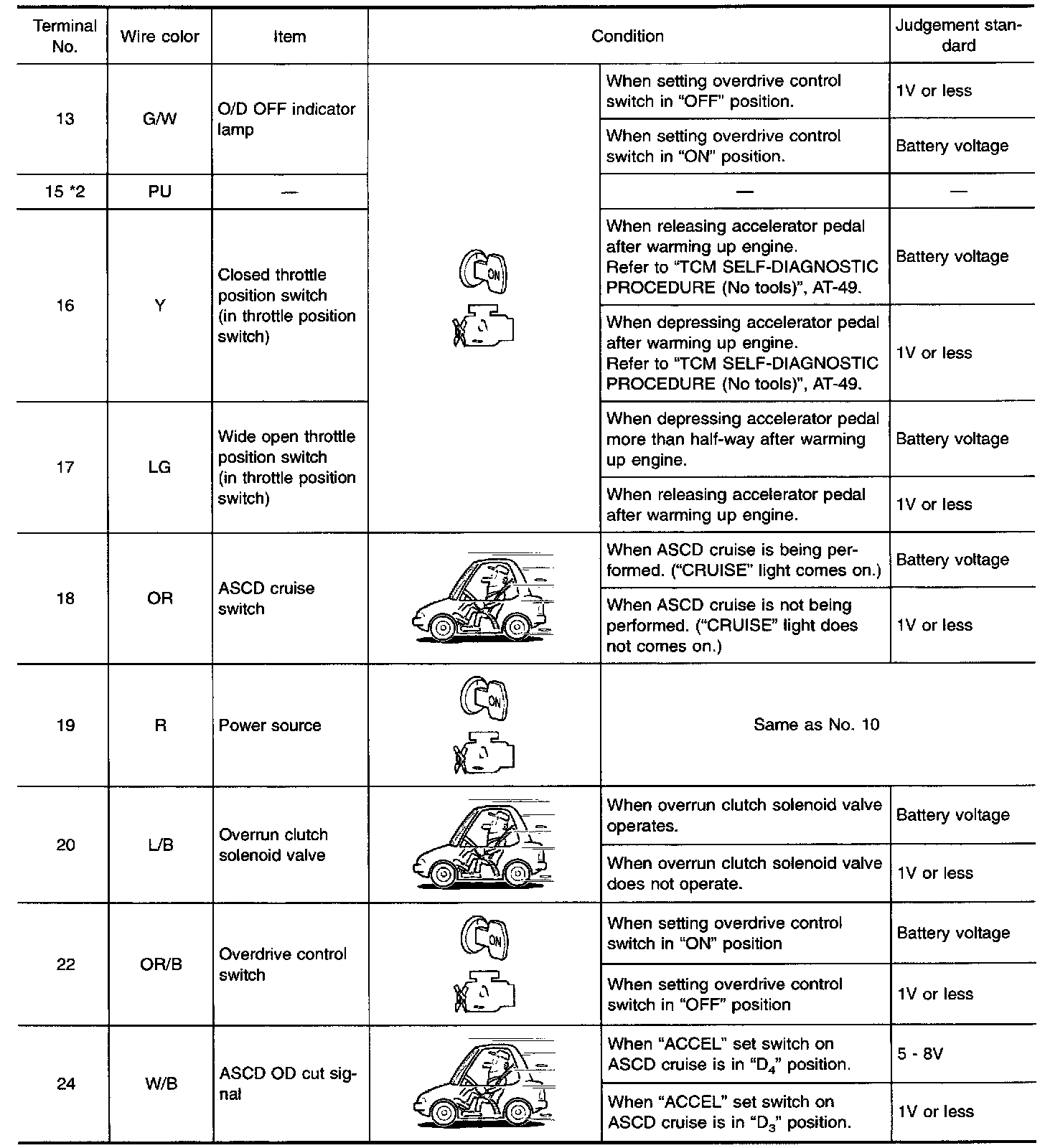

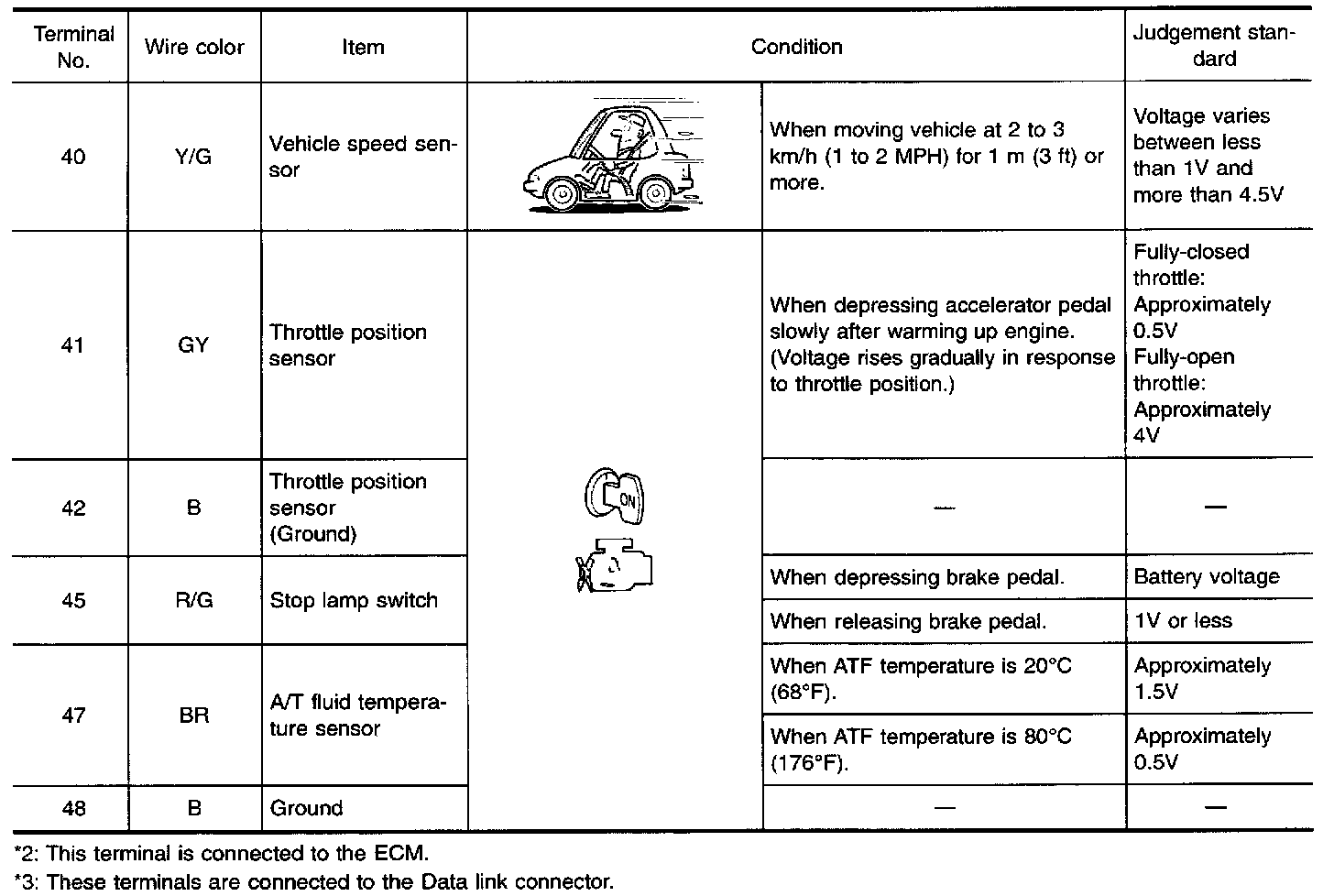

TCM HARNESS CONNECTOR TERMINAL LAYOUT TCM INSPECTION TABLE (Data are reference values.) Part 1 of 4 Part 2 of 4 Part 3 of 4 Part 4 of 4 Wiring Diagram - AT - MAIN TCM TERMINALS AND REFERENCE VALUE
