Procedure 13

13. A/T Does Not Hold Lock-up Condition
SYMPTOM: A/T does not hold lock-up condition for more than 30 seconds.

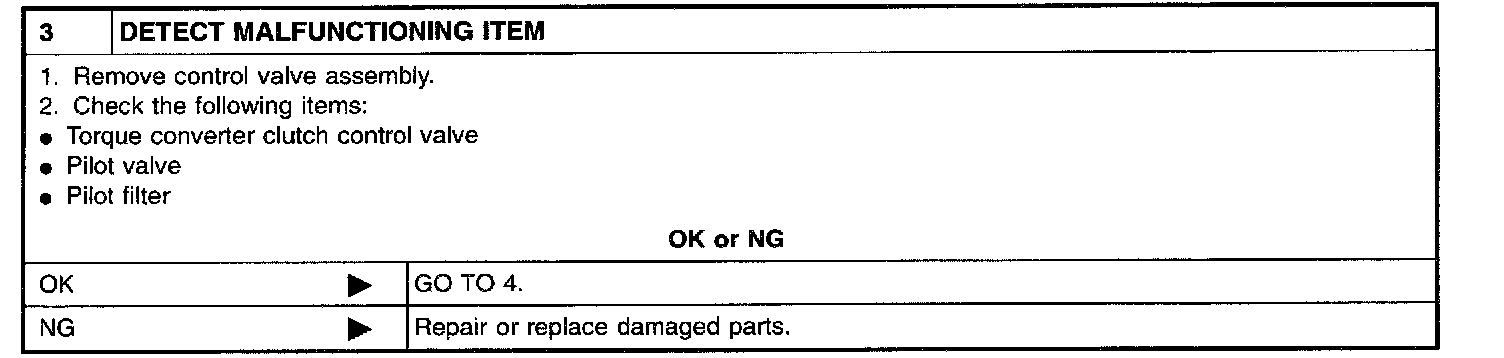

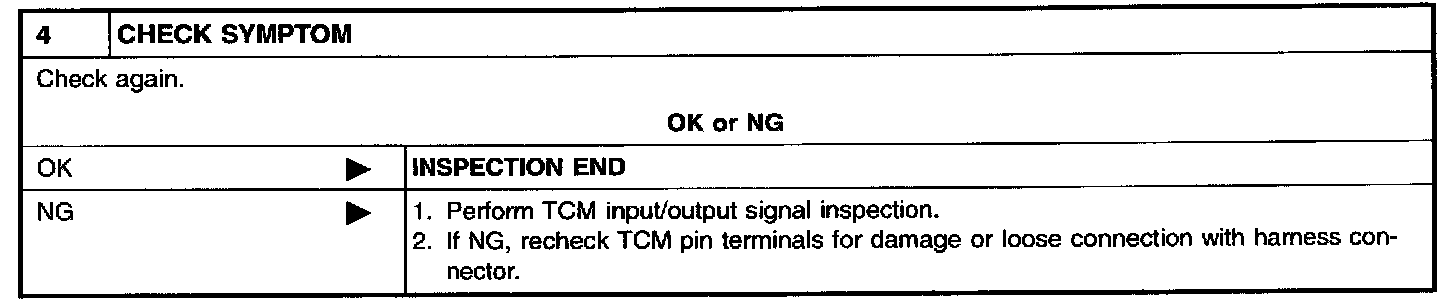

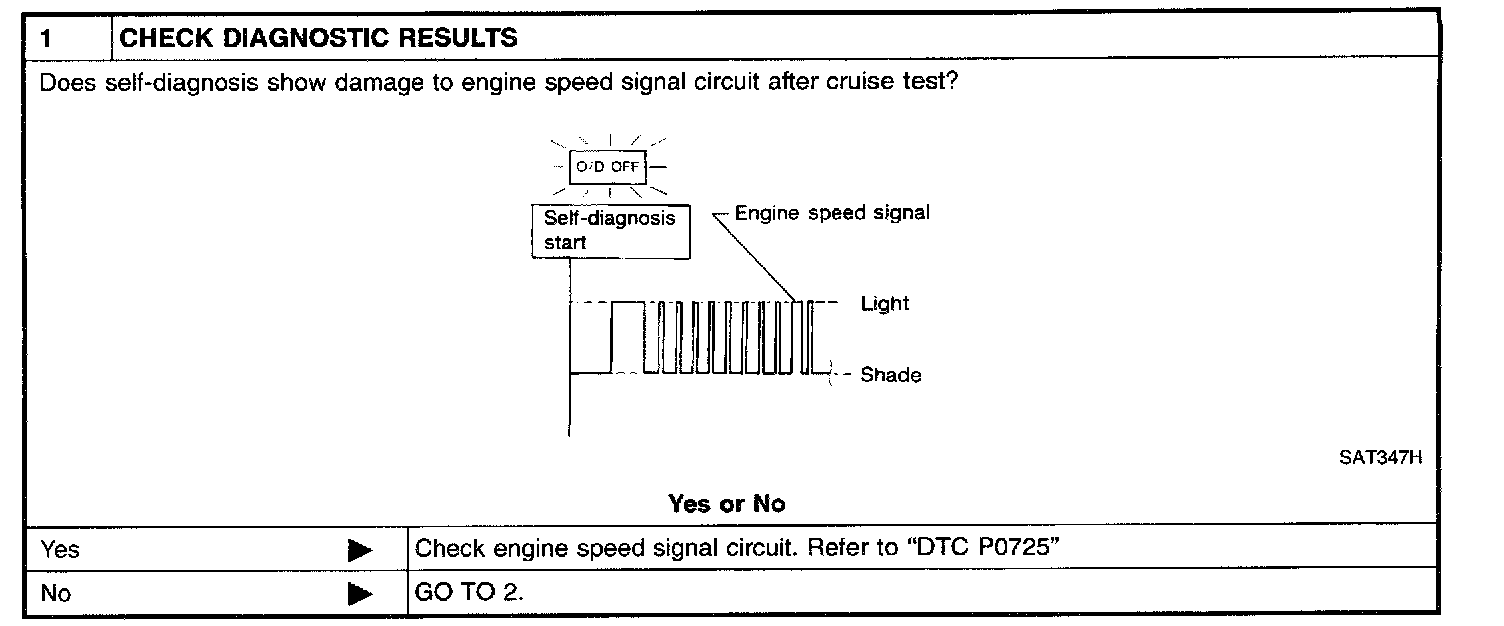

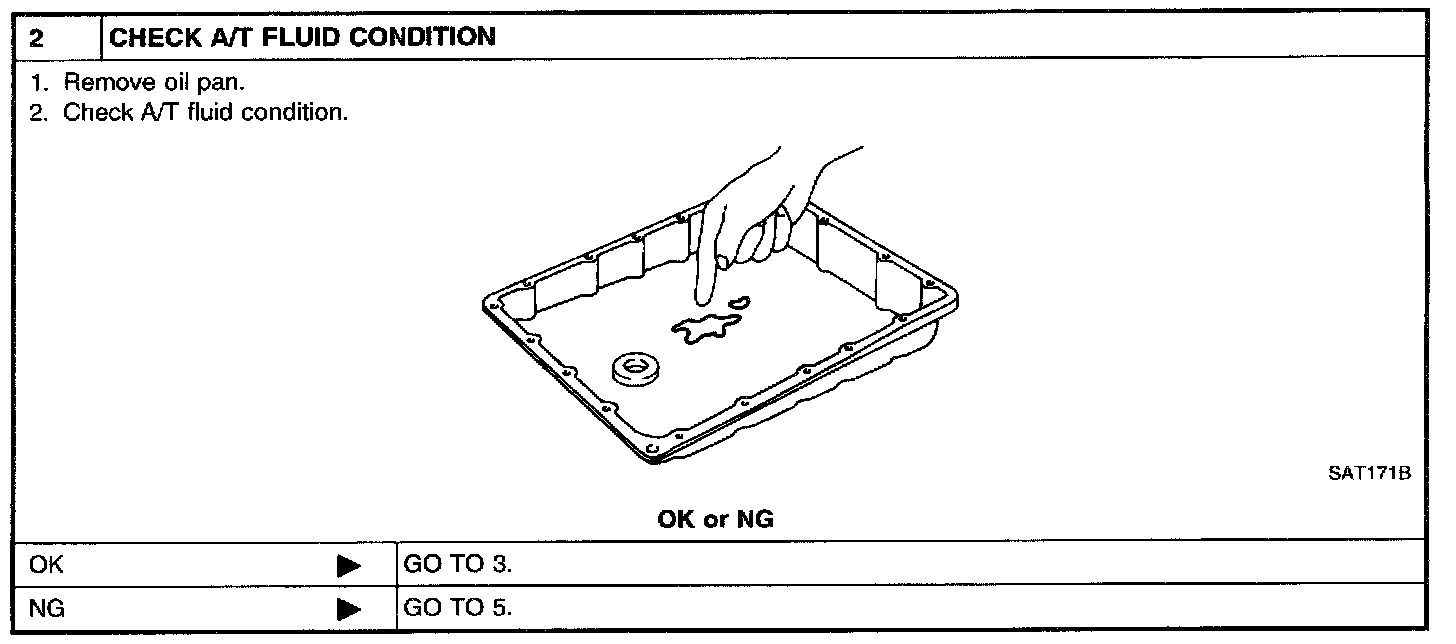

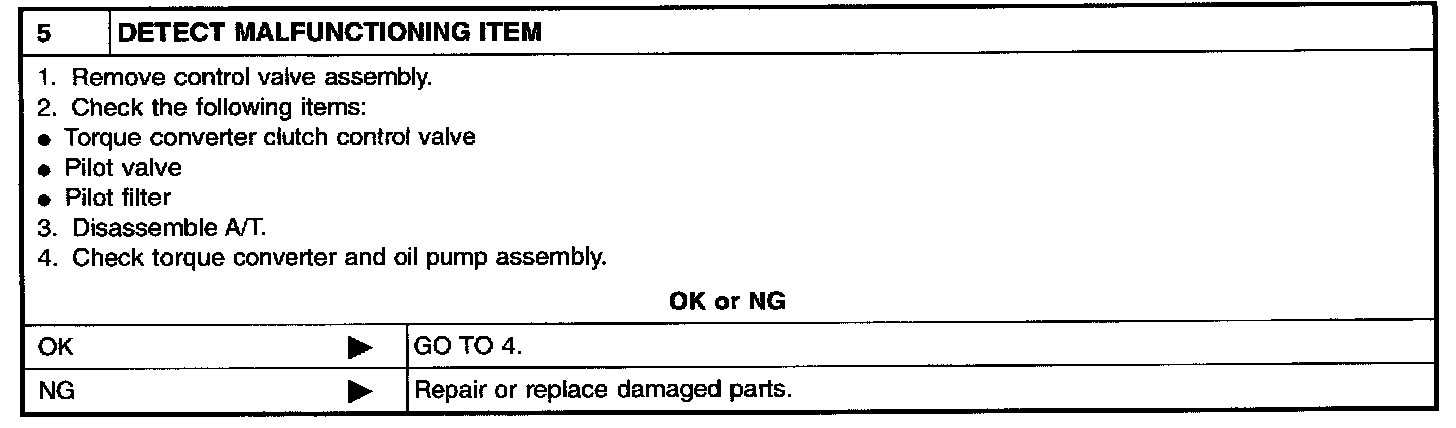

Part 1 of 5





Part 2 of 5





Part 3 of 5





Part 4 of 5





Part 5 of 5
