Procedure 15

15. Engine Speed Does Not Return To Idle (Light Braking D4 -> D3)
SYMPTOM:
- Engine speed does not smoothly return to idle when A/T shifts from D4 to D3.
- Vehicle does not decelerate by engine brake when turning overdrive control switch OFF.
- Vehicle does not decelerate by engine brake when shifting A/T from "D" to "2" position.

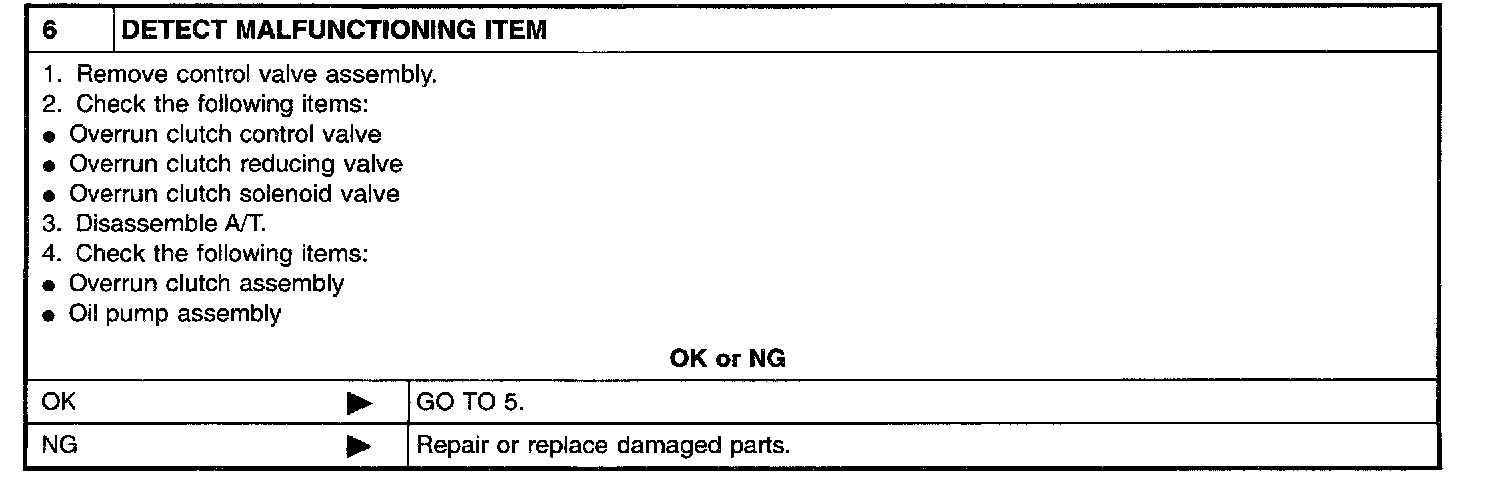

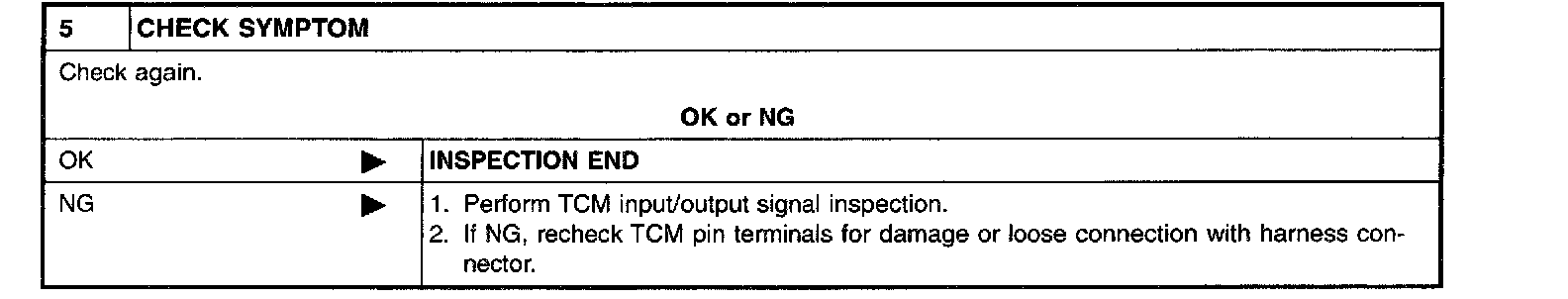

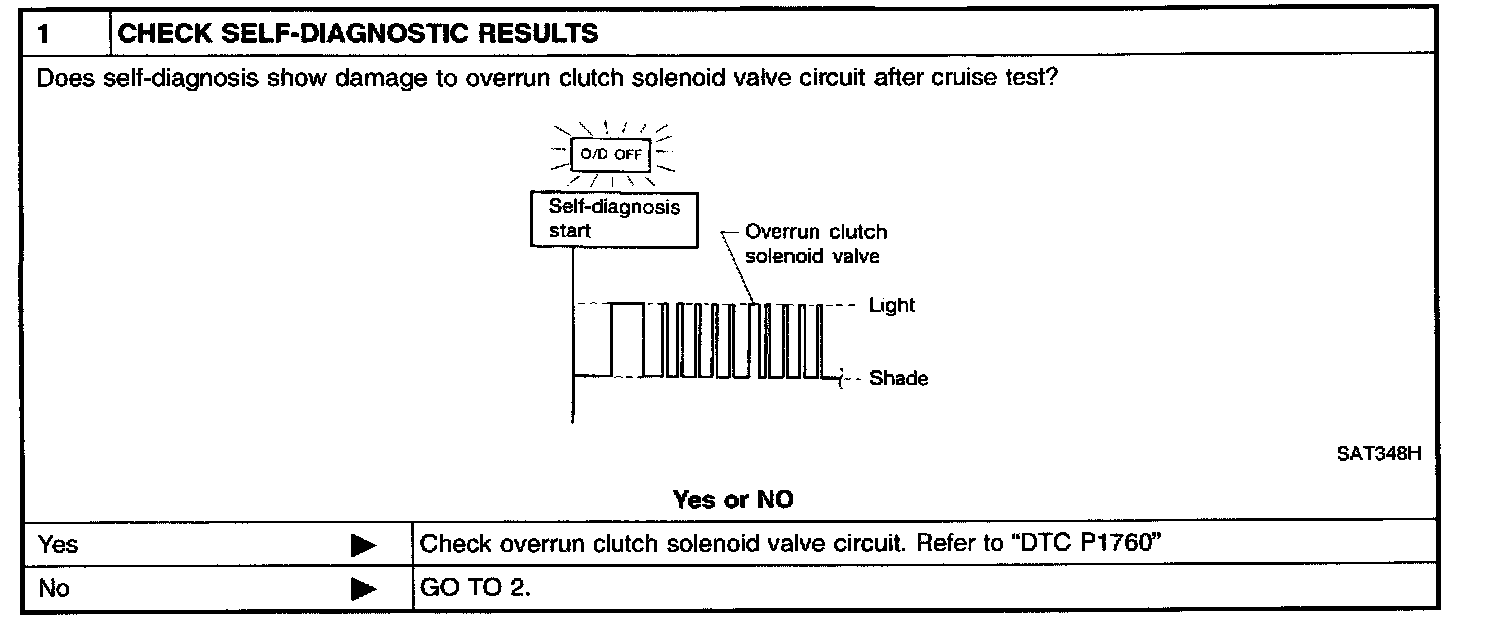

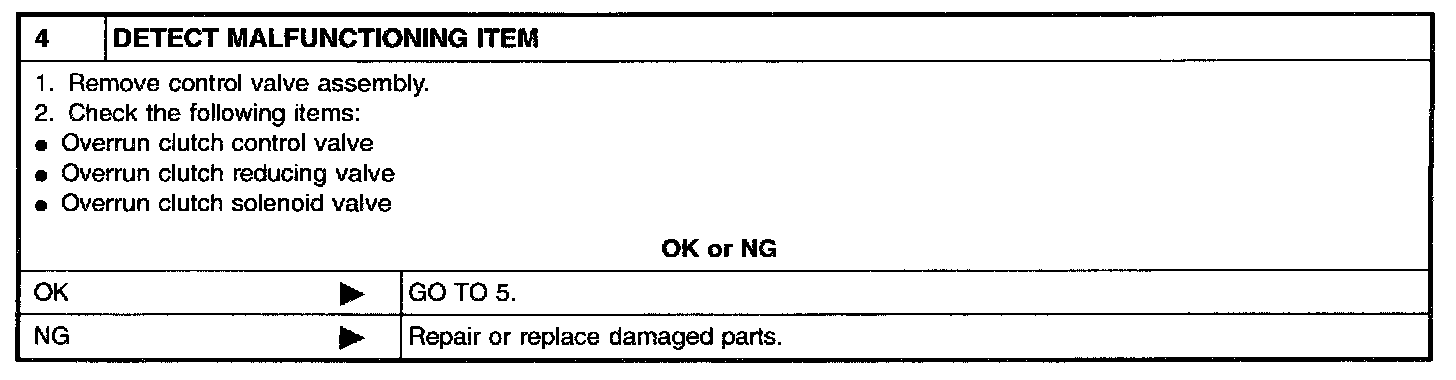

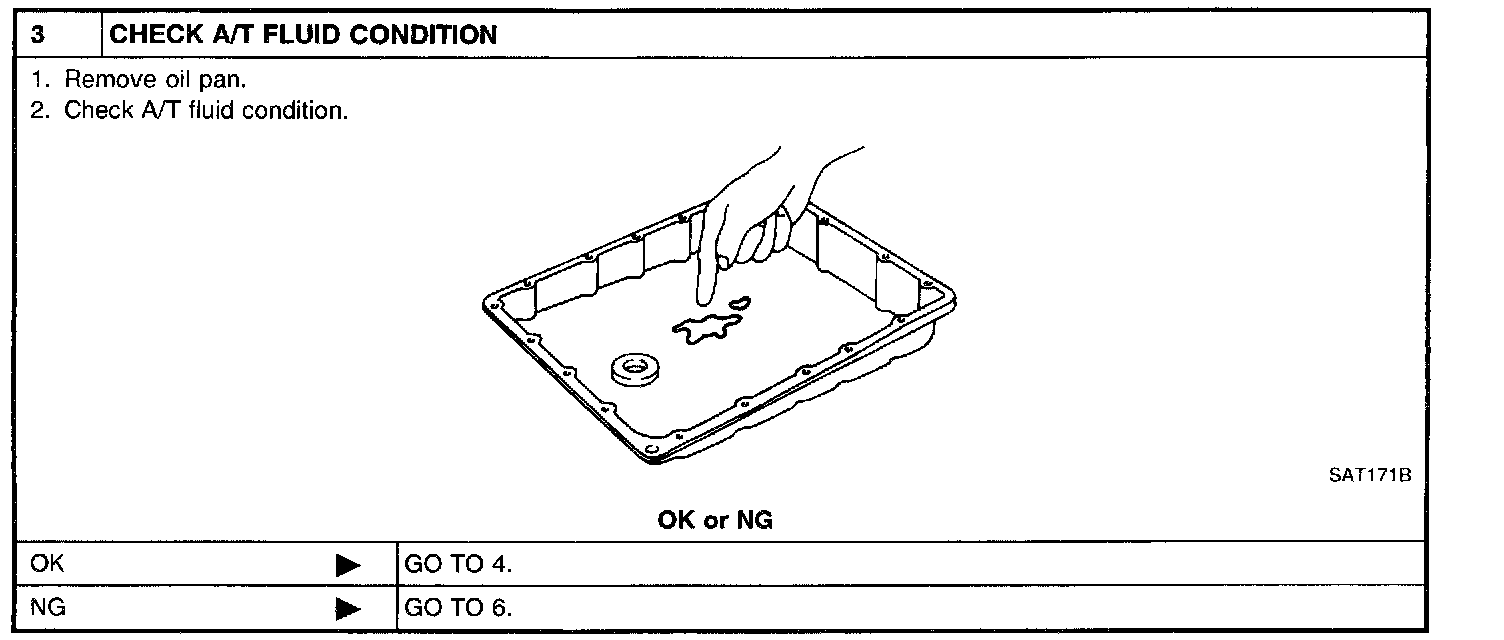

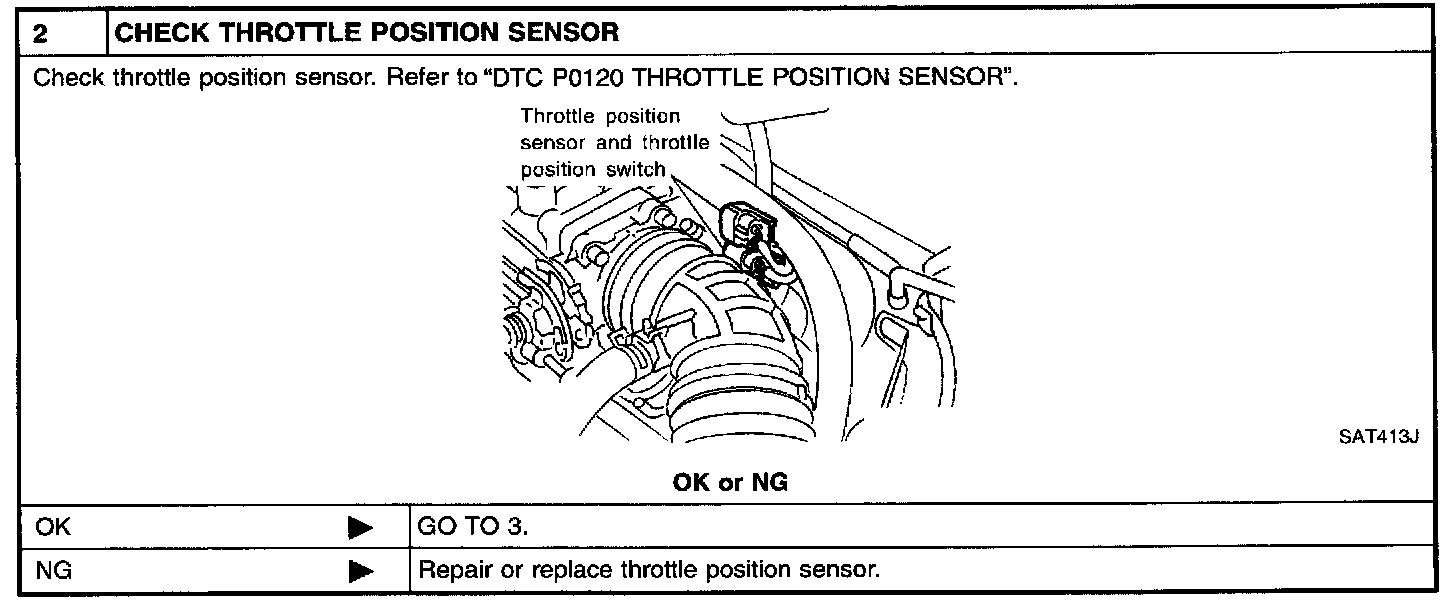

Part 1 of 6





Part 2 of 6





Part 3 of 6





Part 4 of 6





Part 5 of 6





Part 6 of 6
