System Specifications




COMPRESSOR

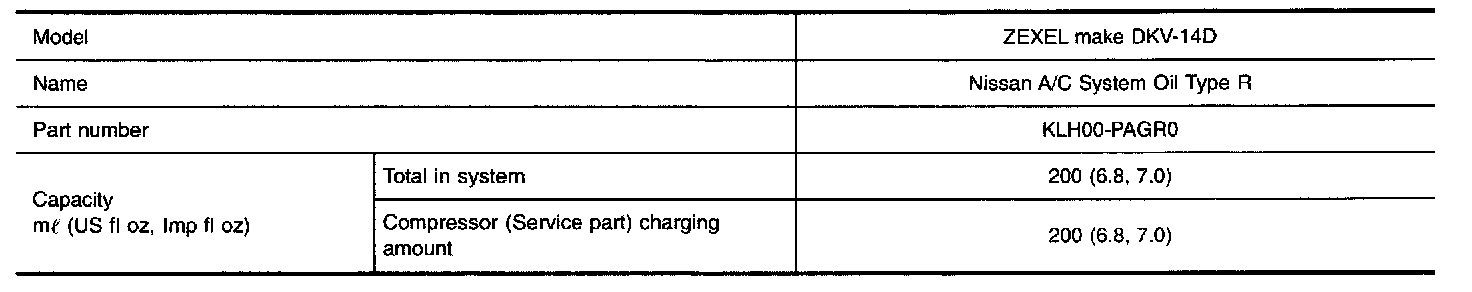

LUBRICANT

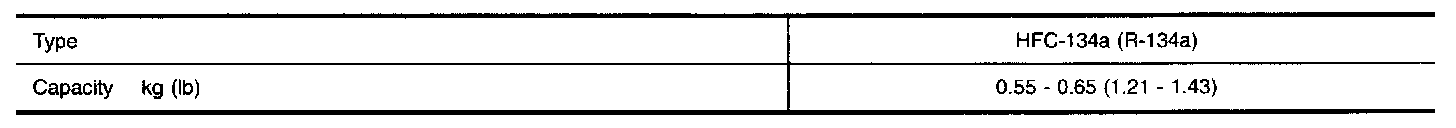

REFRIGERANT

ENGINE IDLING SPEED (WHEN A/C IS ON)
Refer to "Idle Speed and Ignition Timing".

BELT TENSION
Refer to "Checking Drive Belts".
