Manual Transaxle
GENERAL SPECIFICATIONS

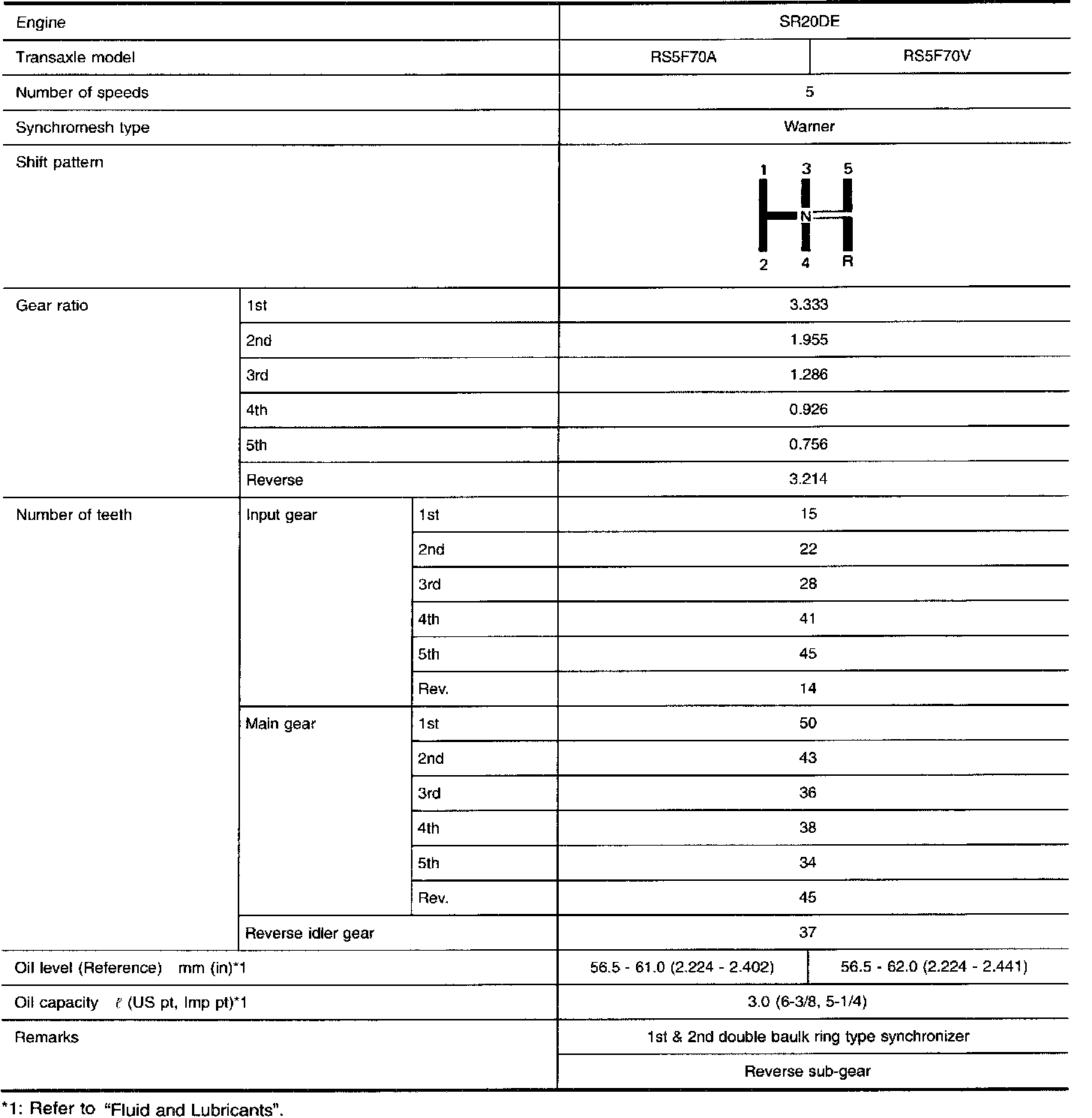

TRANSAXLE

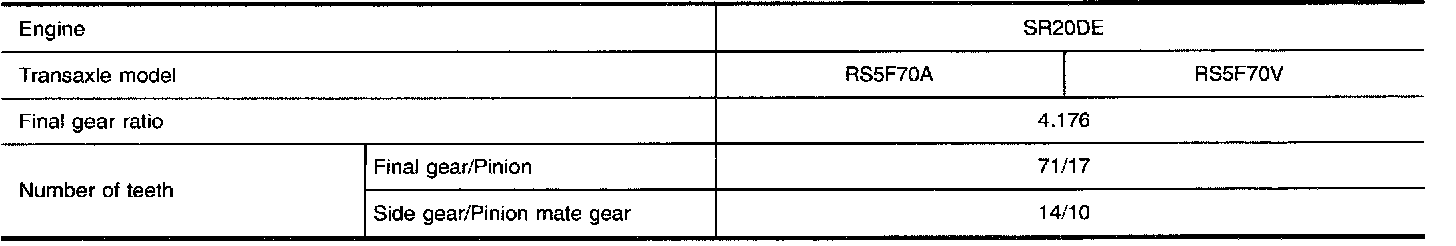

FINAL GEAR

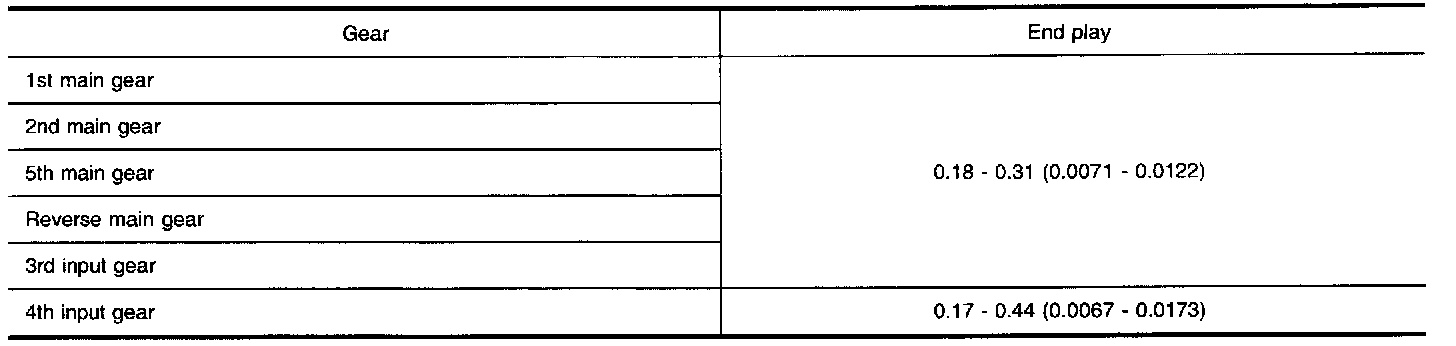

GEAR END PLAY
CLEARANCE BETWEEN BAULK RING AND GEAR

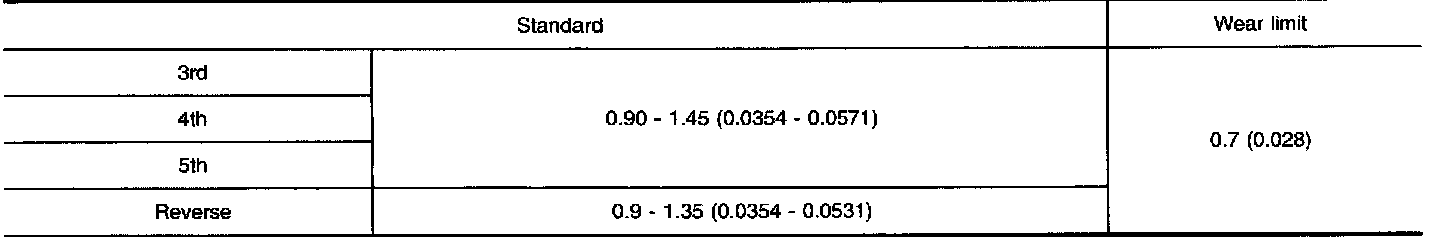

3RD, 4TH, 5TH, REVERSE BAULK RING

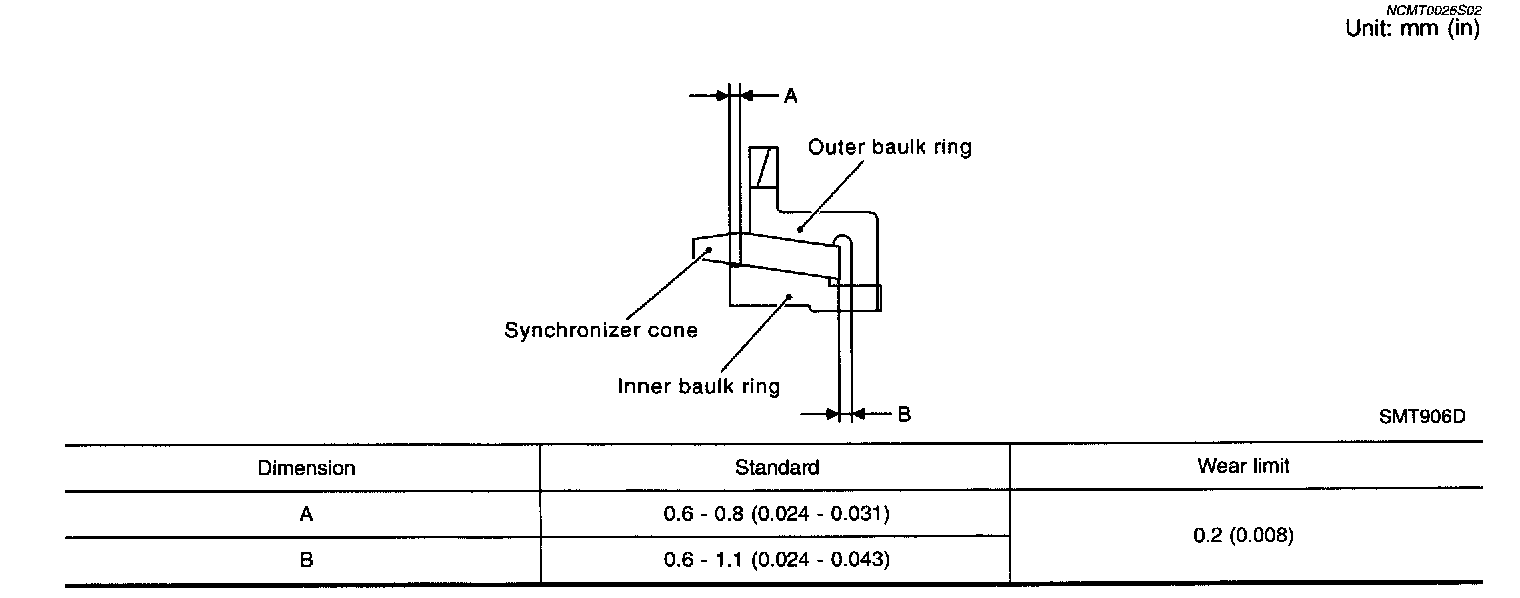

1ST AND 2ND BAULK RING
DIFFERENTIAL SIDE BEARING PRELOAD AND ADJUSTING SHIM
BEARING PRELOAD
