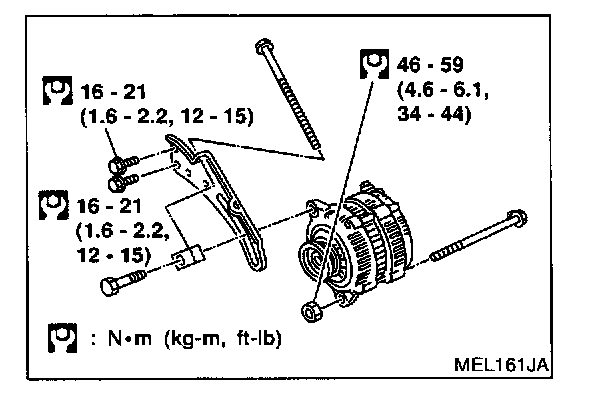

Alternator: Service and Repair
1.
Remove A/C compressor assembly fixing bolt and move the compressor assembly under the vehicle.
2.
Remove
alternator adjusting bar.
3.
Remove
alternator bracket with alternator.
4.
Pull out
alternator assembly under the vehicle.
5.
Remove
alternator pivot bolt from bracket.
6.
Install in the reverse order of removal.
