Wiper and Washer Systems: Service and Repair

Removal And Installation

WIPER ARMS




1. Prior to wiper arm installation, turn on wiper switch to operate wiper motor and then turn it "OFF" (Auto Stop).

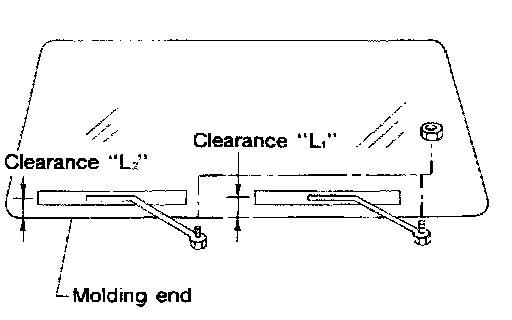

2. Lift the blade up and then set it down onto glass surface to set the blade center to clearance "L1" & "L2" immediately before tightening nut.
3. Eject washer fluid. Turn on wiper switch to operate wiper motor and then turn it "OFF".
4. Ensure that wiper blades stop within clearance "L1" & "L2".
Clearance "L1": 18.5 - 33.5 mm (0.728 - 1.319 in)
Clearance "L2": 19.5 - 34.5 mm (0.768 - 1.358 in)
- Tighten wiper arm nuts to specified torque.
Front wiper: 17 - 23 Nm (1.7 - 2.3 kg.m, 12 - 17 ft-lb)




- Before reinstalling wiper arm, clean up the pivot area as illustrated. This will reduce possibility of wiper arm looseness.

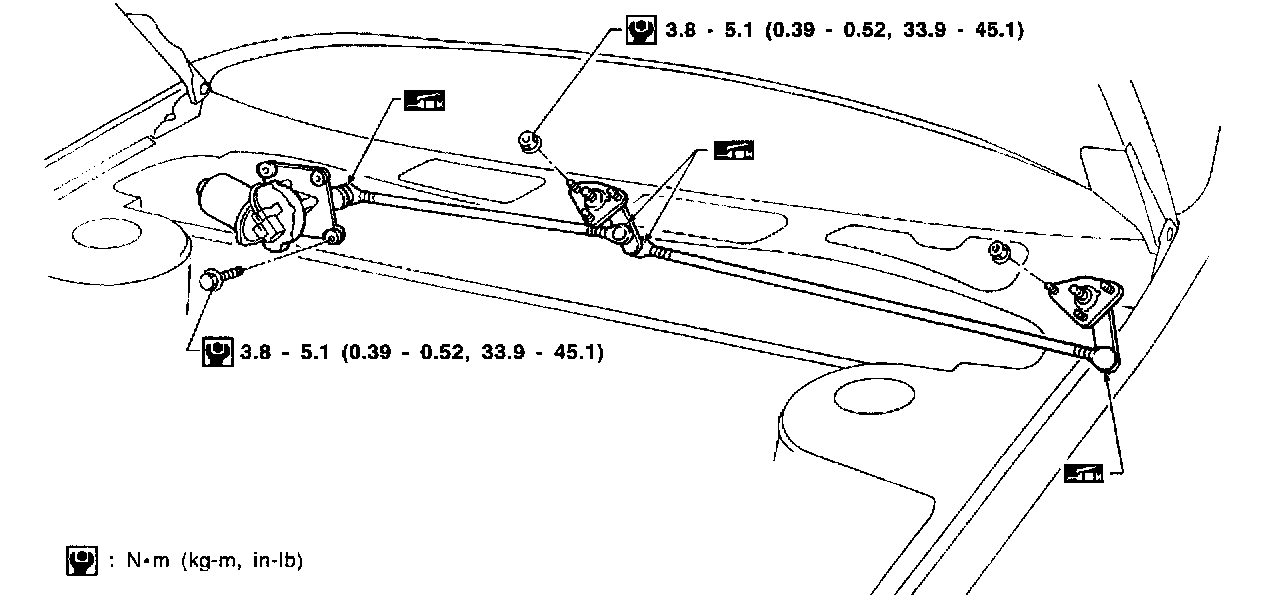

WIPER LINKAGE

Removal
1. Remove 4 bolts that secure wiper motor.
2. Detach wiper motor from wiper linkage at ball joint.
3. Remove wiper linkage.
Be careful not to break ball joint rubber boot.

Installation
- Grease ball joint portion before installation.
1. Installation is the reverse order of removal.
