Distributor Cap: Testing and Inspection

RESISTOR
1. Disconnect resistor harness connector.

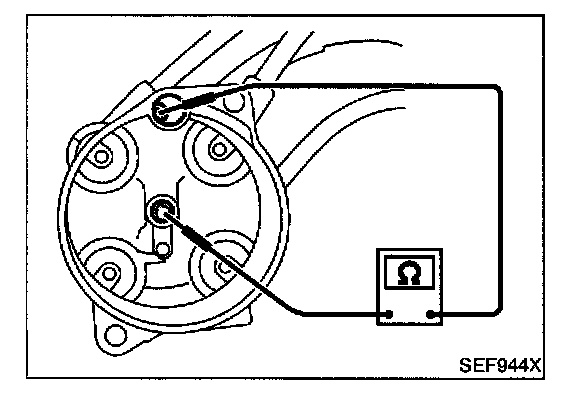

2. Check resistance as shown in the figure.

Resistance: 4 - 8 kOhms [at 25 °C (77 °F)]

If NG, replace distributor cap.
