Control Unit (RAM) Control Unit (ROM)

Description

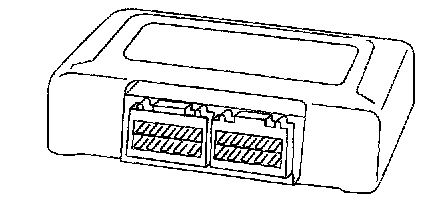

The TCM consists of a microcomputer and connectors for signal input and output and for power supply. The unit controls the A/T.

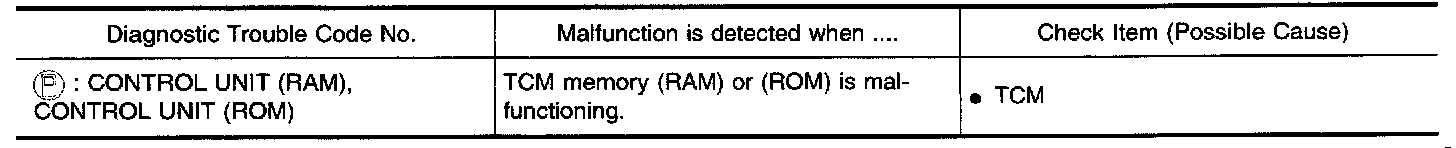

ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

With CONSULT-II

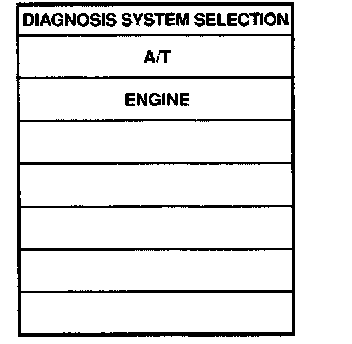

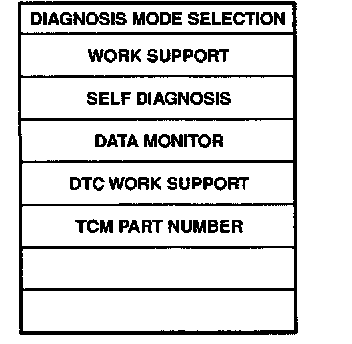

1) Turn ignition switch "ON" and select "DATA MONITOR" mode for A/T with CONSULT-II.
2) Start engine.





3) Run engine for at least 2 seconds at idle speed.

Diagnostic Procedure

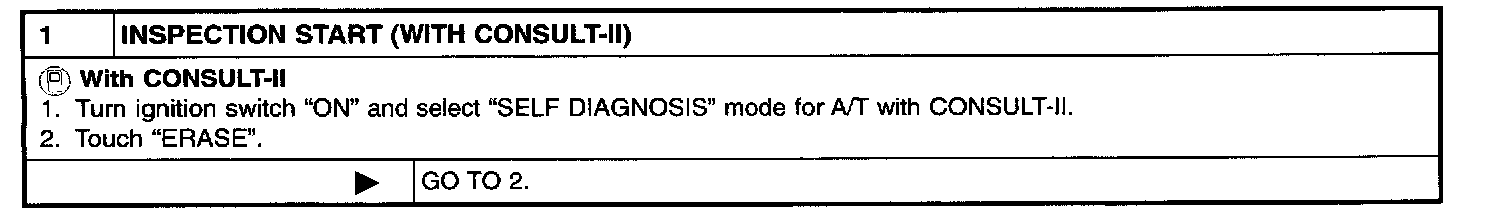

Part 1 of 3

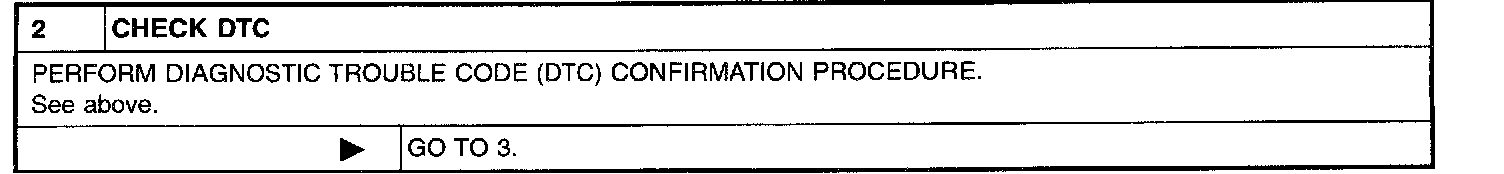

Part 2 of 3

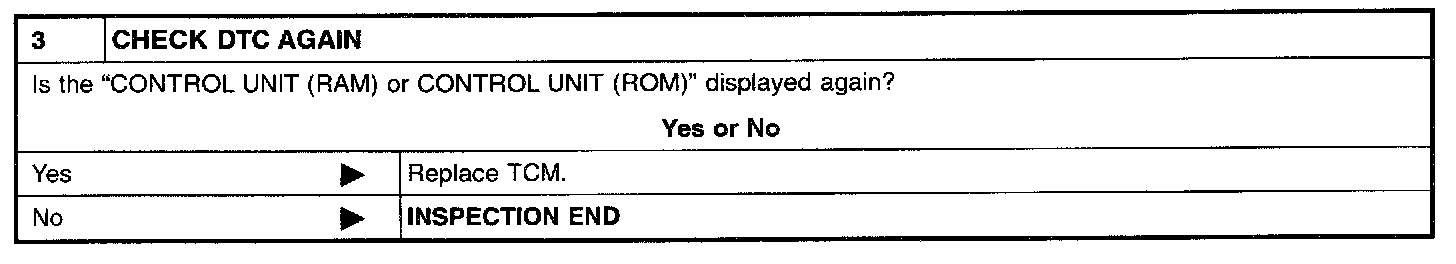

Part 3 of 3
