Major Overhaul

COMPONENTS

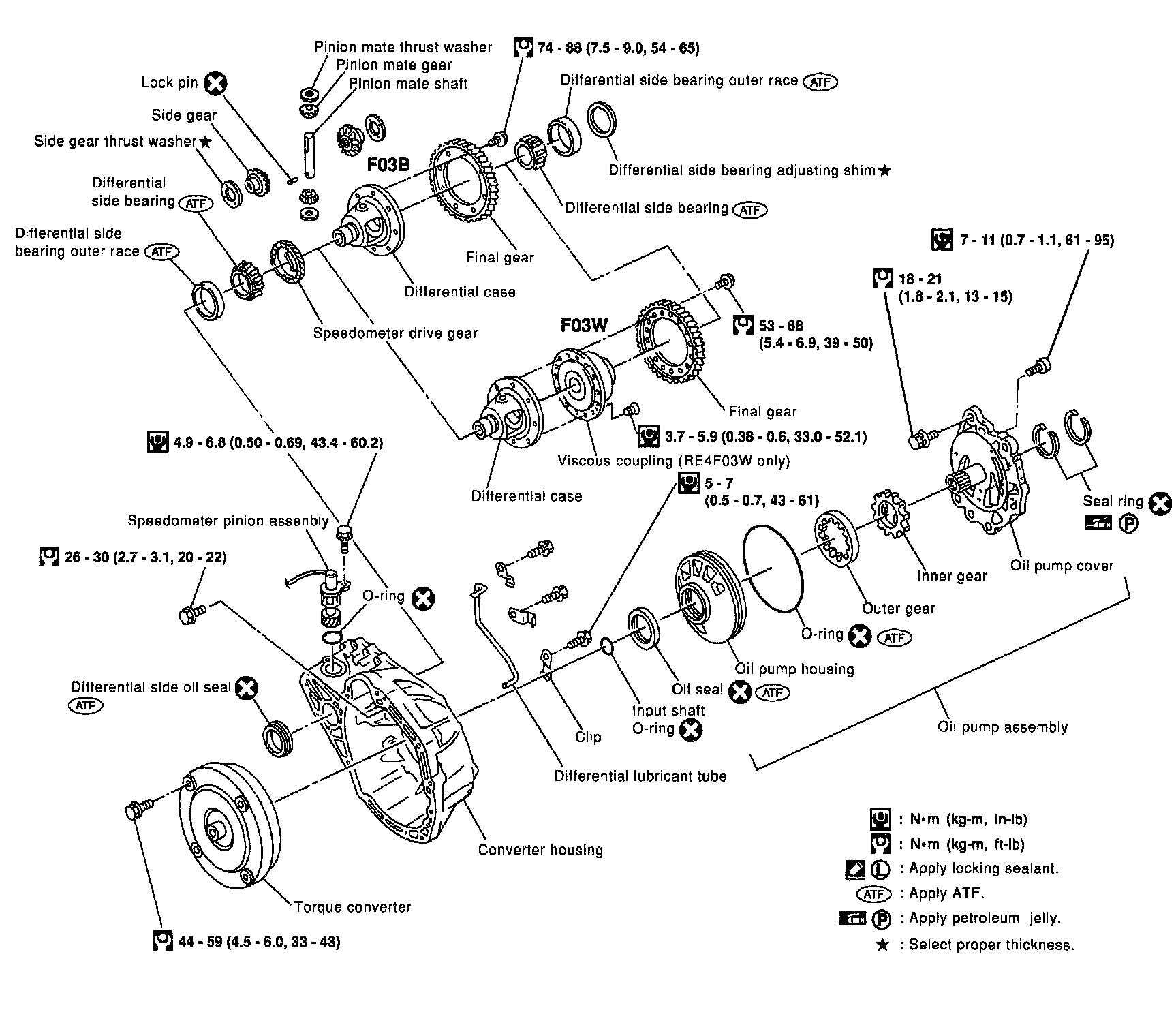

1 of 3

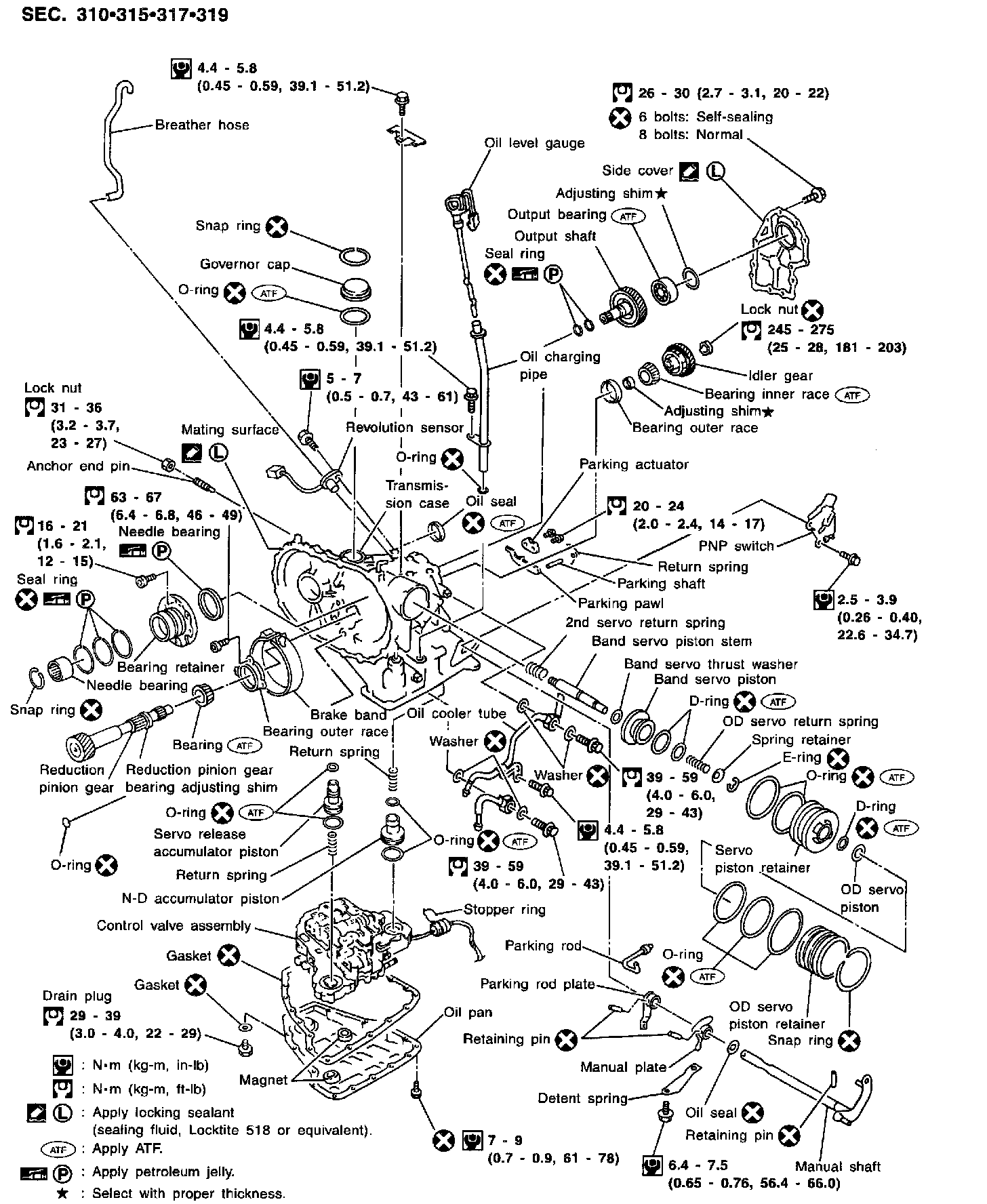

2 of 3





3 of 3

COMPONENTS

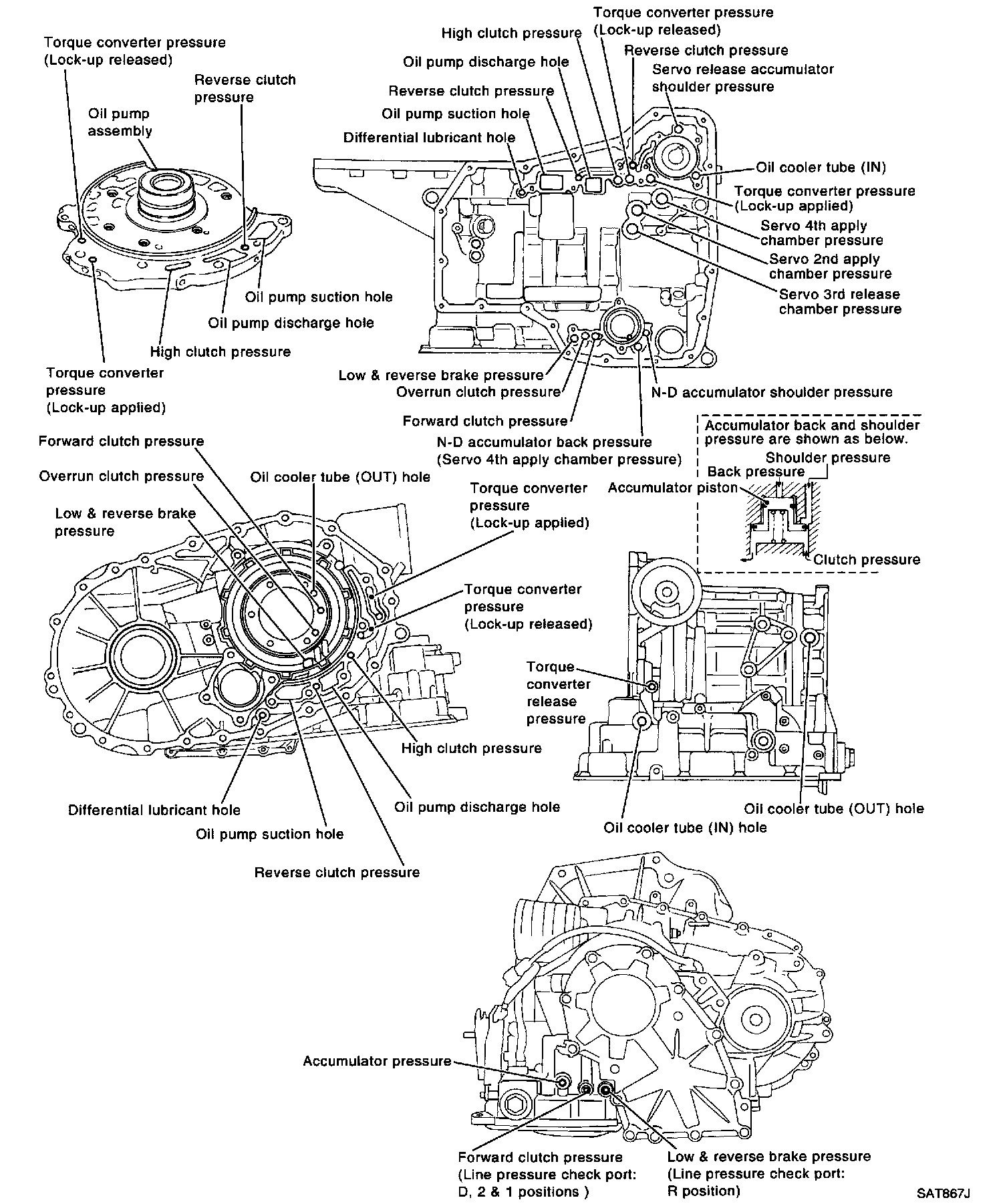

OIL CHANNEL

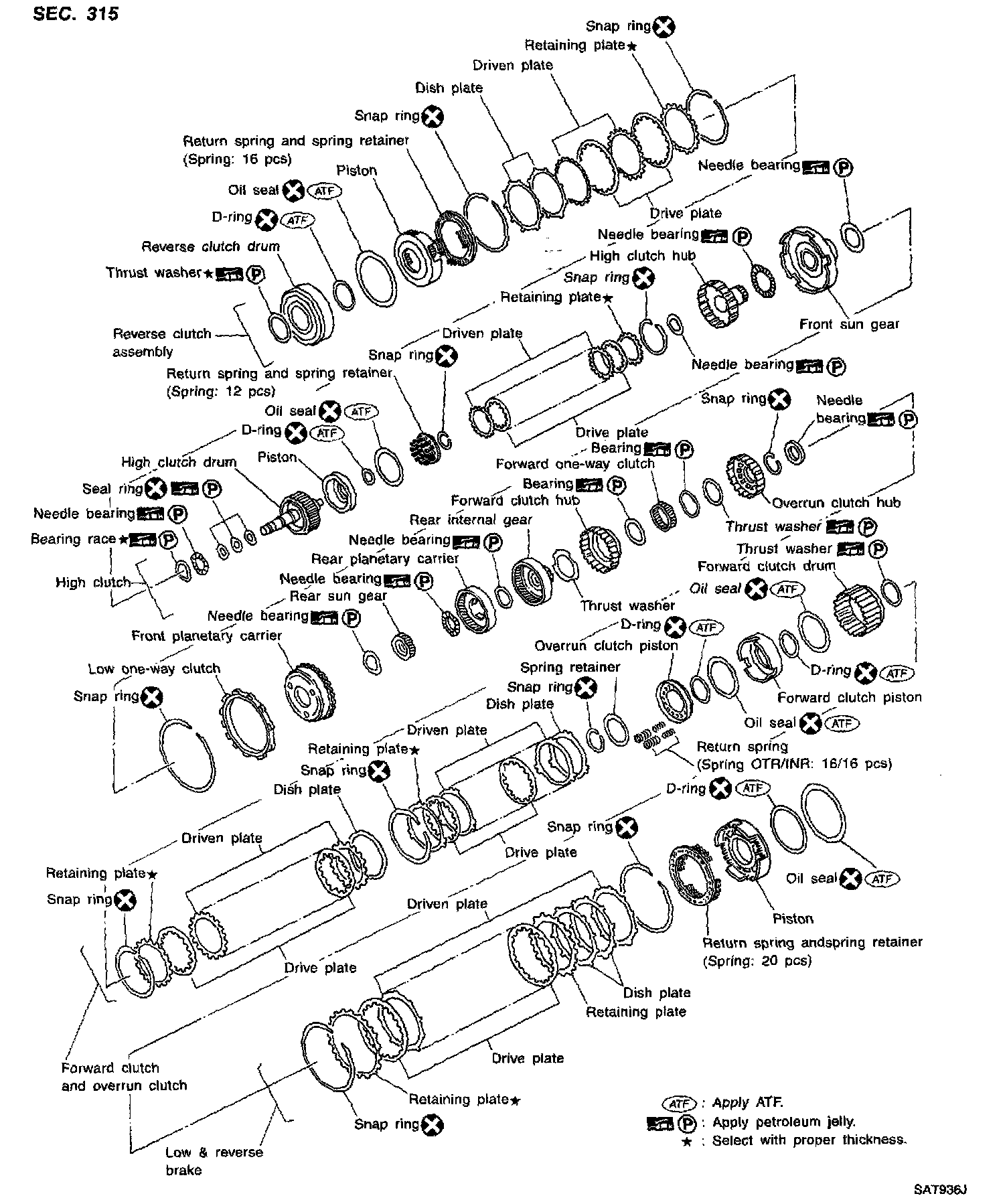

LOCATIONS OF ADJUSTING SHIMS, NEEDLE BEARINGS, THRUST WASHERS AND SNAP RINGS
