Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2001
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Repair For Component Parts
>>

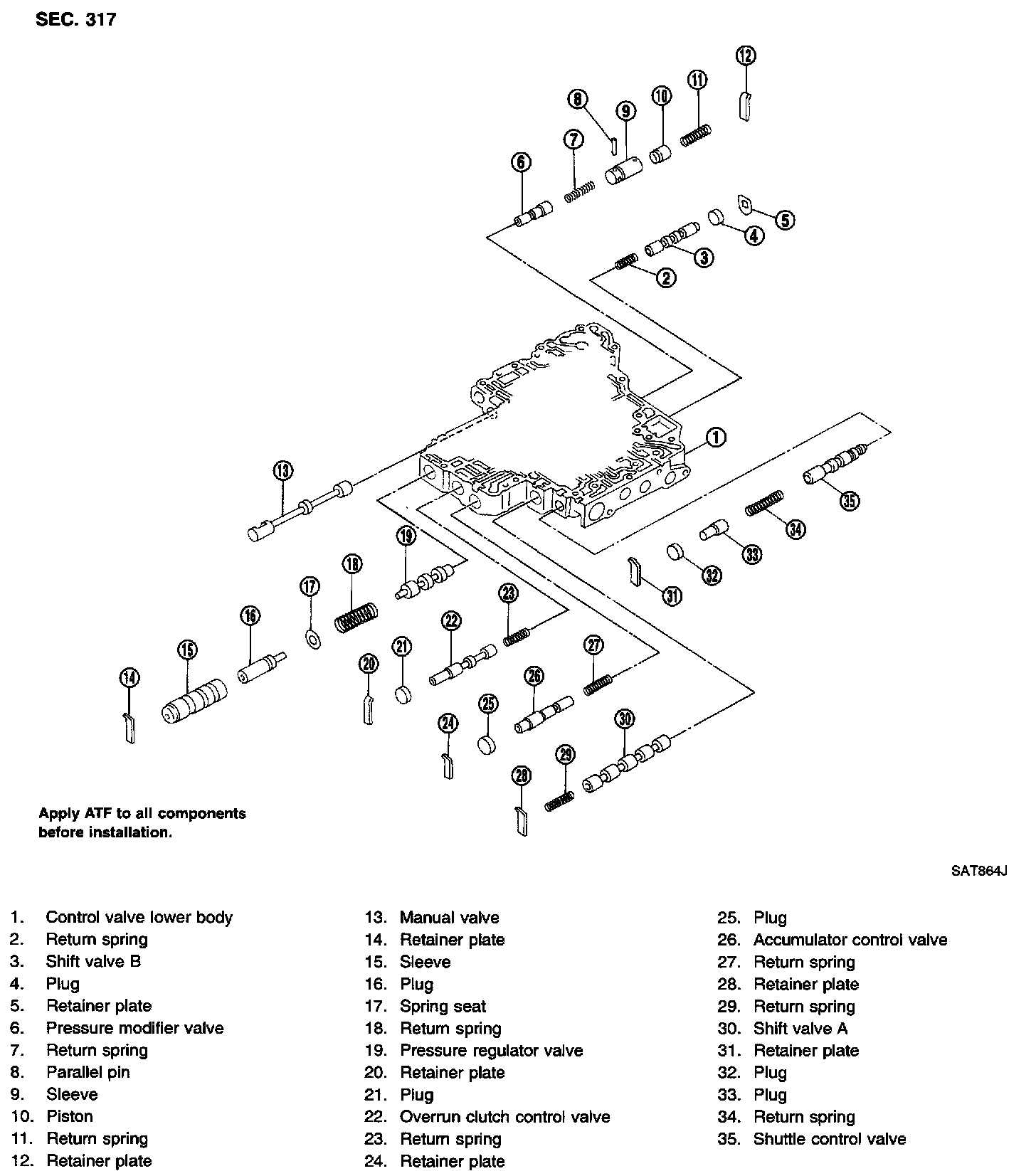

Control Valve Lower Body
Control Valve Lower Body
Control Valve Lower Body
Numbers preceding valve springs correspond with those shown under Specifications; Mechanical.
