With Automatic Air Conditioner

SYSTEM DESCRIPTION

Component Parts

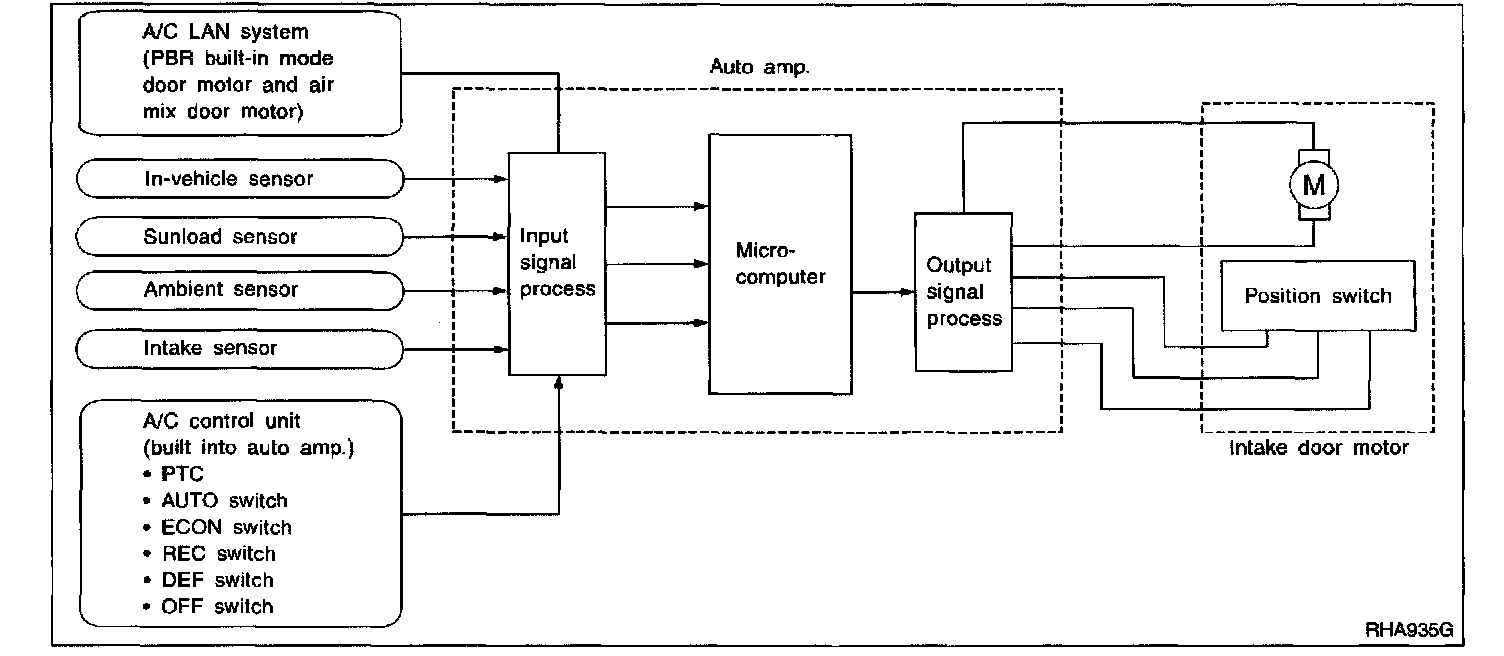

Intake door control system components are:
1. Autoamp.
2. Intake door motor
3. A/C LAN system (PBR built-in mode motor and air mix door motor)
4. In-vehicle sensor
5. Ambient sensor
6. Sunload sensor
7. Intake sensor




System Operation
The intake door control determines intake door position based on the ambient temperature, the intake air temperature and the in-vehicle temperature. When the ECON, DEFROST, or OFF switches are pushed, the auto amplifier sets the intake door at the "Fresh" position.

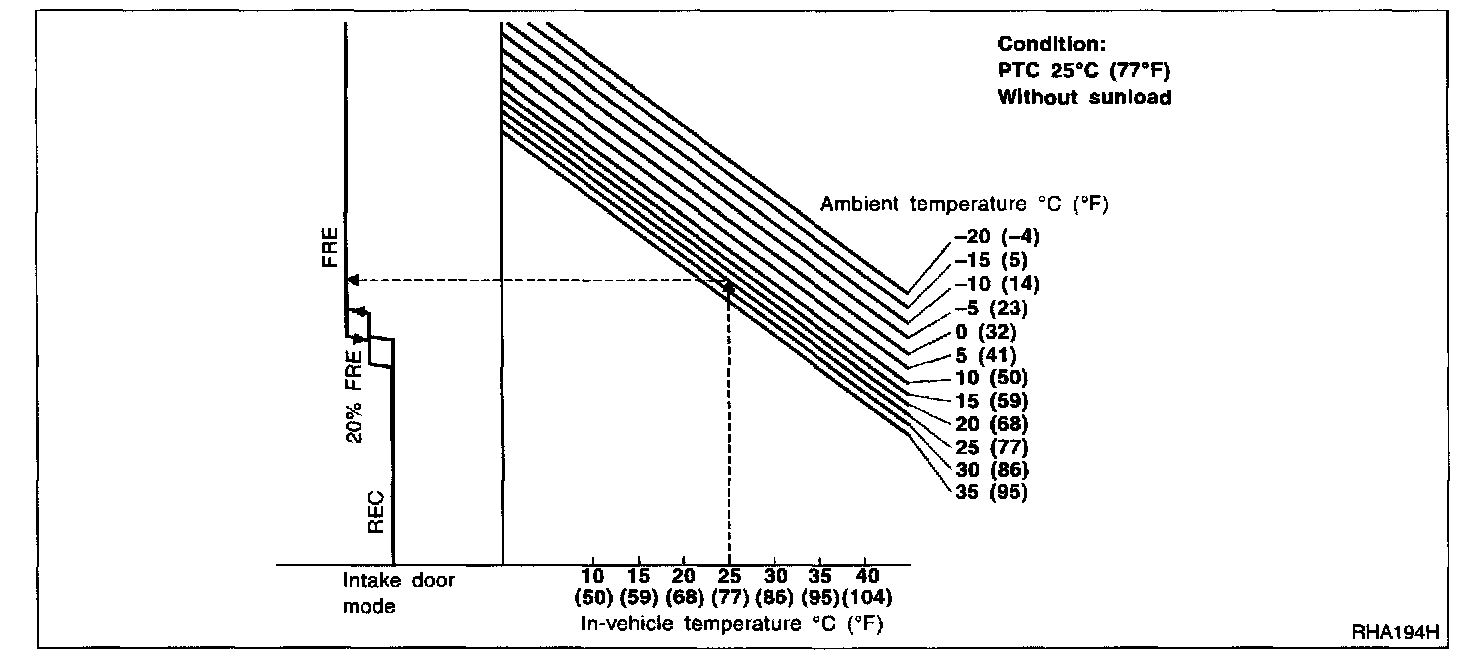

Intake Door Control Specification:

COMPONENT DESCRIPTION
The intake door motor is attached to the intake unit. It rotates so that air is drawn from inlets set by the auto amplifier. Motor rotation is conveyed to a lever which activates the intake door.
