Start Signal Circuit

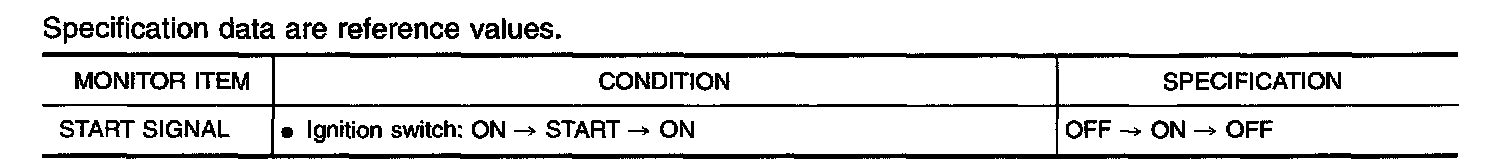

Consult-II Reference Value In Data Monitor Mode:

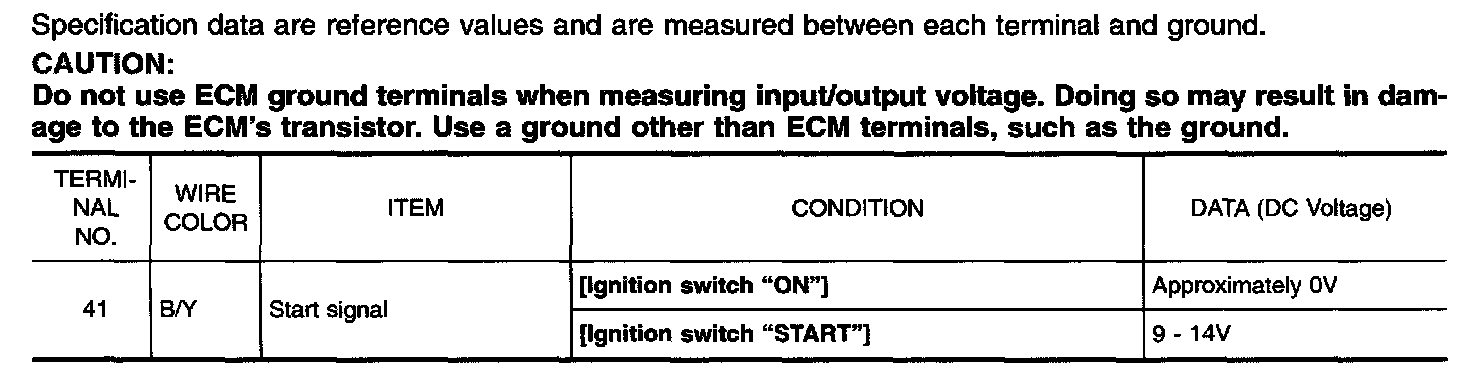

ECM Terminals And Reference Value:

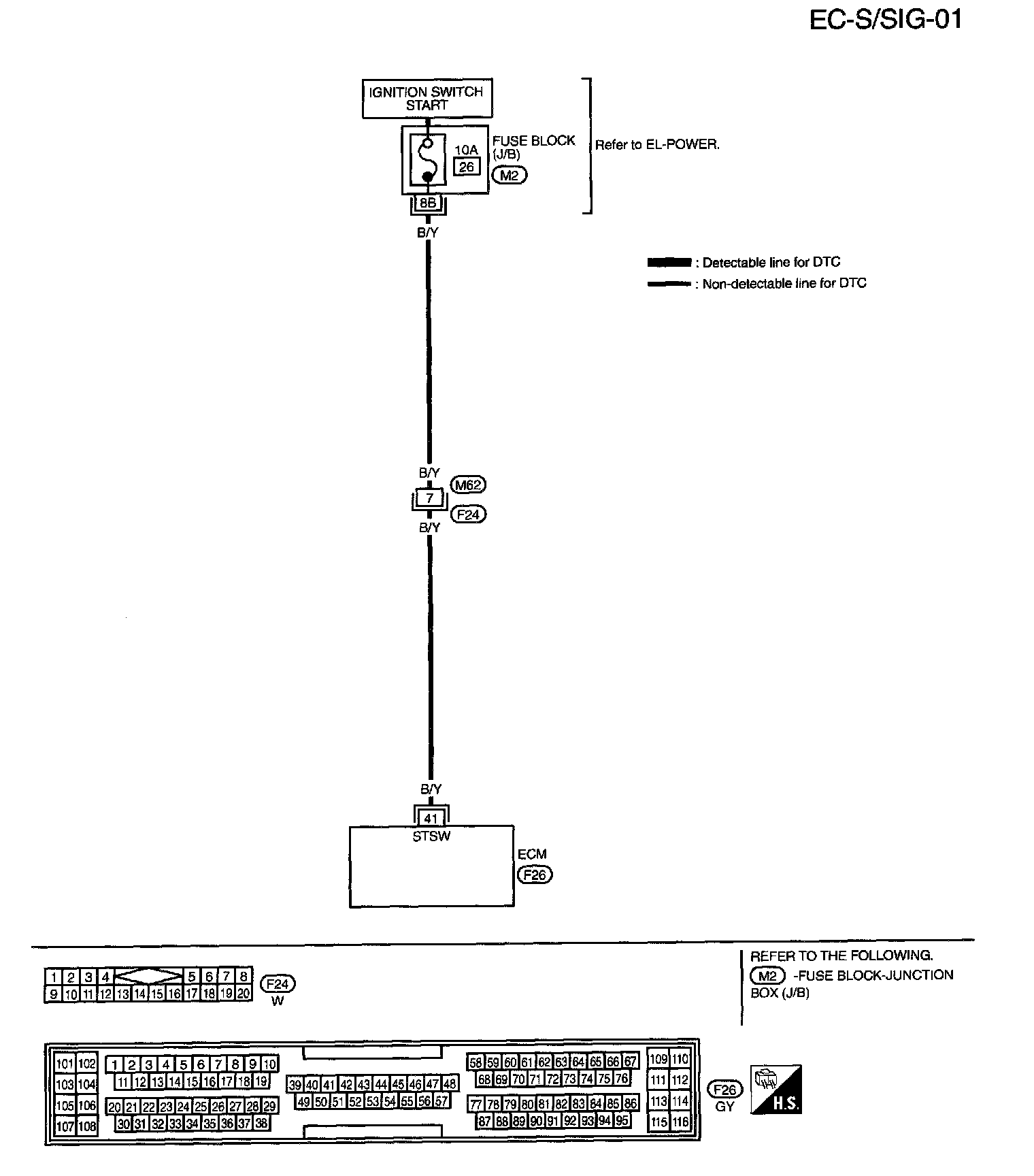

EC-S/SIG-01:

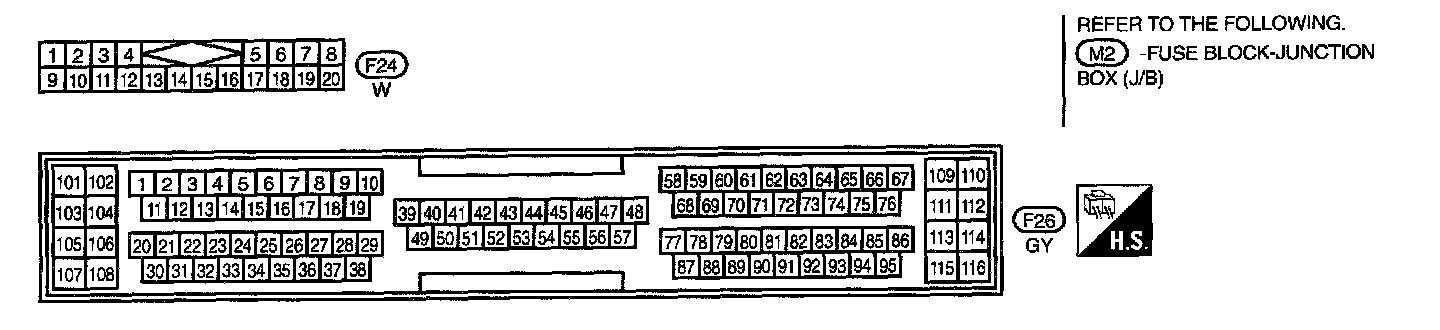

EC-S/SIG-01 Connector View:

Fuse Block - Junction Box (J/B) Terminal Arrangement (B1, E71, E72, E73, M1, M2, M3, M4, M5):

Steps 1 - 3:

Steps 4 - 5:
