Rear Suspension

REAR SUSPENSION PARTS
Check axle and suspension parts for excessive play, wear or damage.

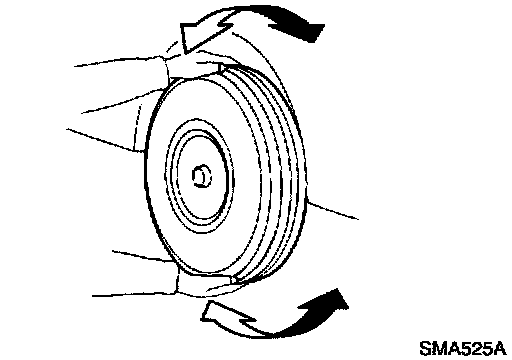

- Shake each rear wheel to check for excessive play.

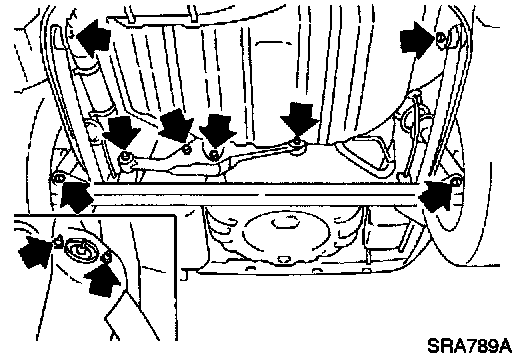

- Retighten all nuts and bolts to the specified torque.
Tightening torque: Refer to Diagrams; Exploded Views.

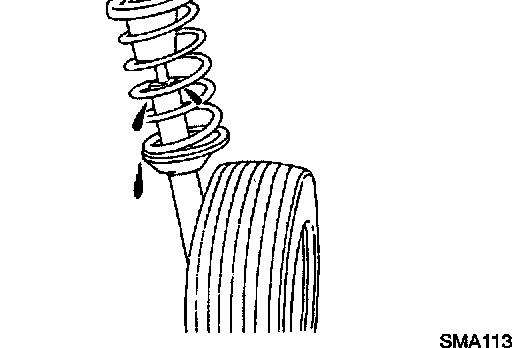

- Check shock absorber for oil leakage or other damage.
- Check wheelarch height. Refer to Alignment; Specifications.
