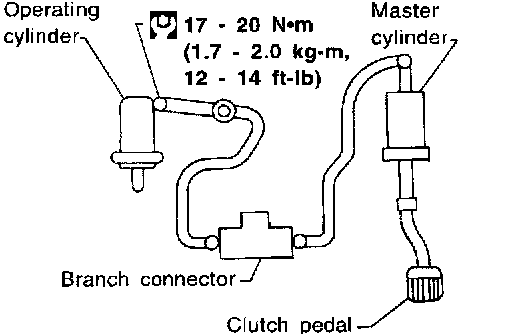

Piping

Removal





1. Remove fuel filter mounting bracket.
2. Remove air cleaner and air duct.
3. Drain brake fluid.

CAUTION: Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.

4. Remove flare nut using a flare nut wrench.
5. Remove clutch hose and clutch tube.

Installation

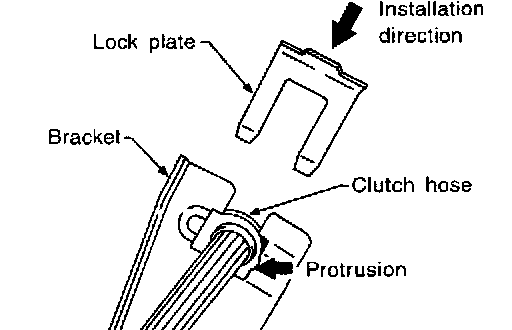

1. When installing clutch hose to bracket, face lock plate in the correct direction as shown to secure clutch hose.

CAUTION: Install clutch hose without twisting or bending it.

2. Tighten flare nut to the specified torque, using a flare nut wrench.
15 - 18 Nm (1.5 - 1.8 kg-m, 11 - 13 ft. lbs.)

CAUTION: Be careful not to damage flare nut and clutch tube.

3. Install clutch hose to operating cylinder, and tighten mounting bolts to the specified torque.
17 - 20 Nm (1.7 - 2.0 kg-m, 12 - 14 ft. lbs.)
4. After finishing the operation, bleed air from the clutch piping.
