Demonstration Mode

SYSTEM OPERATION CHECK

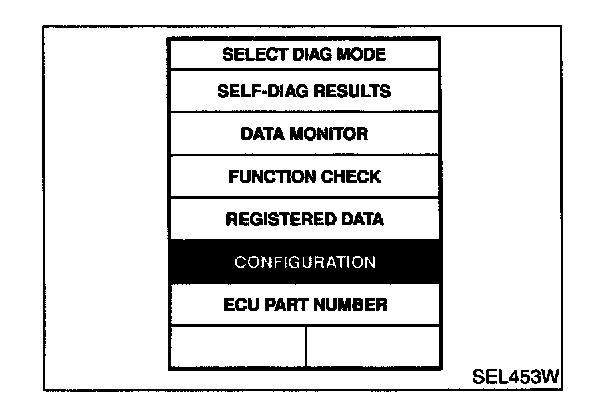

1. Touch "CONFIGURATION".

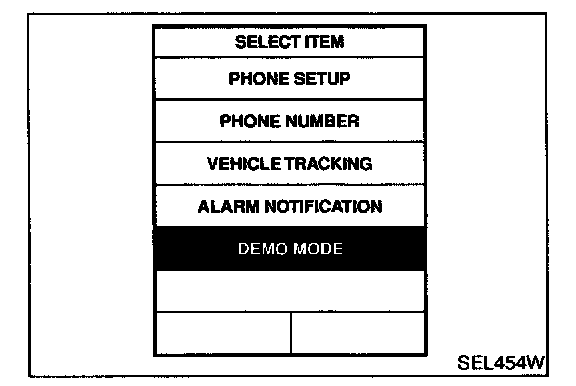

2. Touch "DEMO MODE".

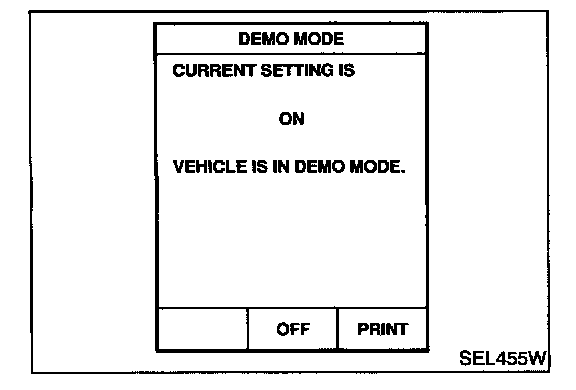

3. Touch "ON". Now, the system is in demonstration mode. (To return to normal mode, touch "OFF".)




4. Touch "BACK" key of CONSULT-II until "SELECT SYSTEM" appears, then turn off CONSULT-II.
5. Turn ignition switch to the OFF position.
6. Disconnect CONSULT-II DDL connector.
7. Start the engine.

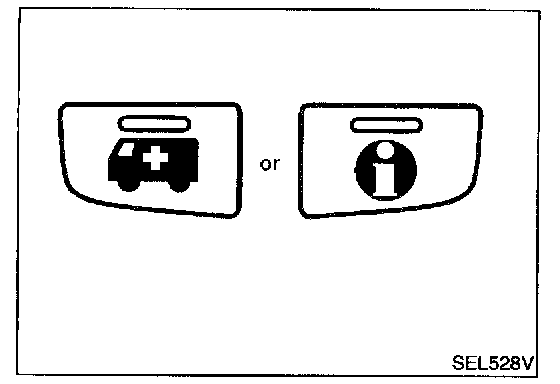

8. Touch the "MAYDAY" or "INFORMATION" switches. Then the system will call the demonstration center.




9. Check INFINITI Communicator operation.

- If contact with Communicator Response Center is successful, system is OK.

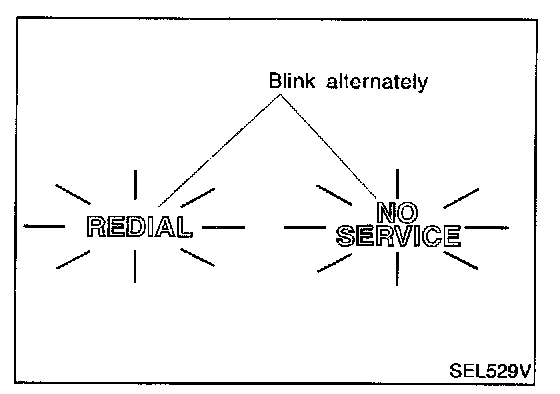

NOTE: During the system contact to Communicator Response Center in demonstration mode, "REDIAL" and "NO SERVICE" indicators blink alternately.

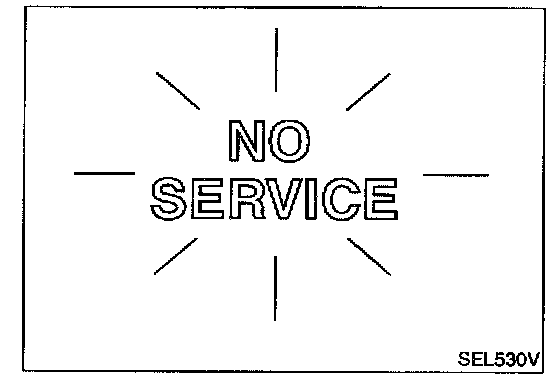

- If "NO SERVICE" indicator illuminates and the contact to Communicator Response Center is unsuccessful, retry from other location where the cellular connection seems good. (e.g.; move the vehicle outside of the workshop and retry.)

NOTE: If "NO SERVICE" indicator frequently illuminates from a location where the cellular connection seems good, check the connection of the feeder cable for the cellular phone antenna.

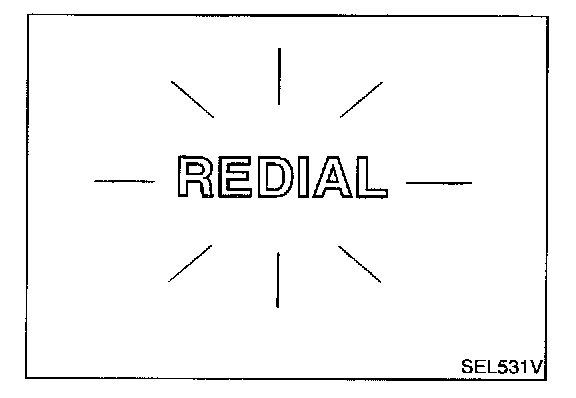

- If "REDIAL" indicator lamp illuminates and the contact to Communicator Response Center 5 unsuccessful, the cellular network is busy or there are no open cellular channels. The system will redial automatically.

NOTE: If redial fails several times, confirm whether the roaming agreement of customer's cellular provider at the vehicle location is available or not.

WARNING:
- Make sure to turn the demonstration mode OFF before returning the vehicle to the owner.
- In the demonstration mode, any service from Communicator Response Center is not available. Therefore, even if the customer encounters an emergency, no service will be dispatched.
