Transmission Position Sensor/Switch: Adjustments

Park/Neutral Position (PNP) Switch Adjustment

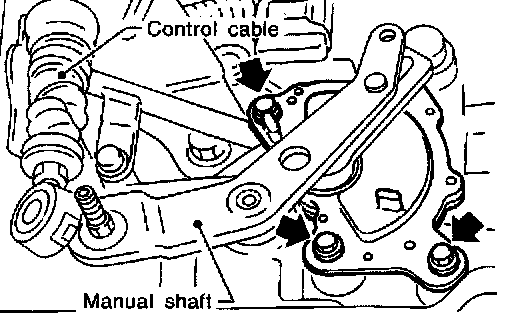

1. Remove control cable from manual shaft.
2. Set manual shaft in N position.





3. Loosen Park/Neutral Position (PNP) switch fixing bolts.

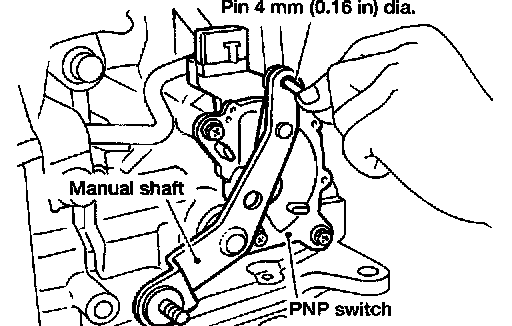

4. Insert pin into adjustment holes in both Park/Neutral Position (PNP) switch and manual shaft as near vertical as possible.
5. Reinstall any part removed.
6. Check continuity of Park/Neutral Position (PNP) switch.
