Board-On Lift






CAUTION: Make sure vehicle is empty when lifting.

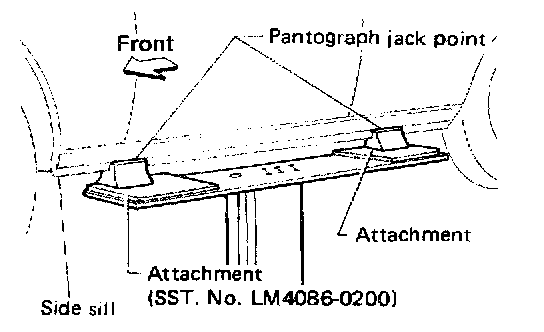

- The board-on lift attachment (LM4086-0200) set at front end of vehicle should be set on the front of the sill under the front door opening.
- Position attachments at front and rear ends of board-on lift.
