Control Valve Lower Body

Apply ATF to all components before their installation. Numbers proceeding valve springs correspond with those shown under Specifications; Mechanical.

DISASSEMBLY

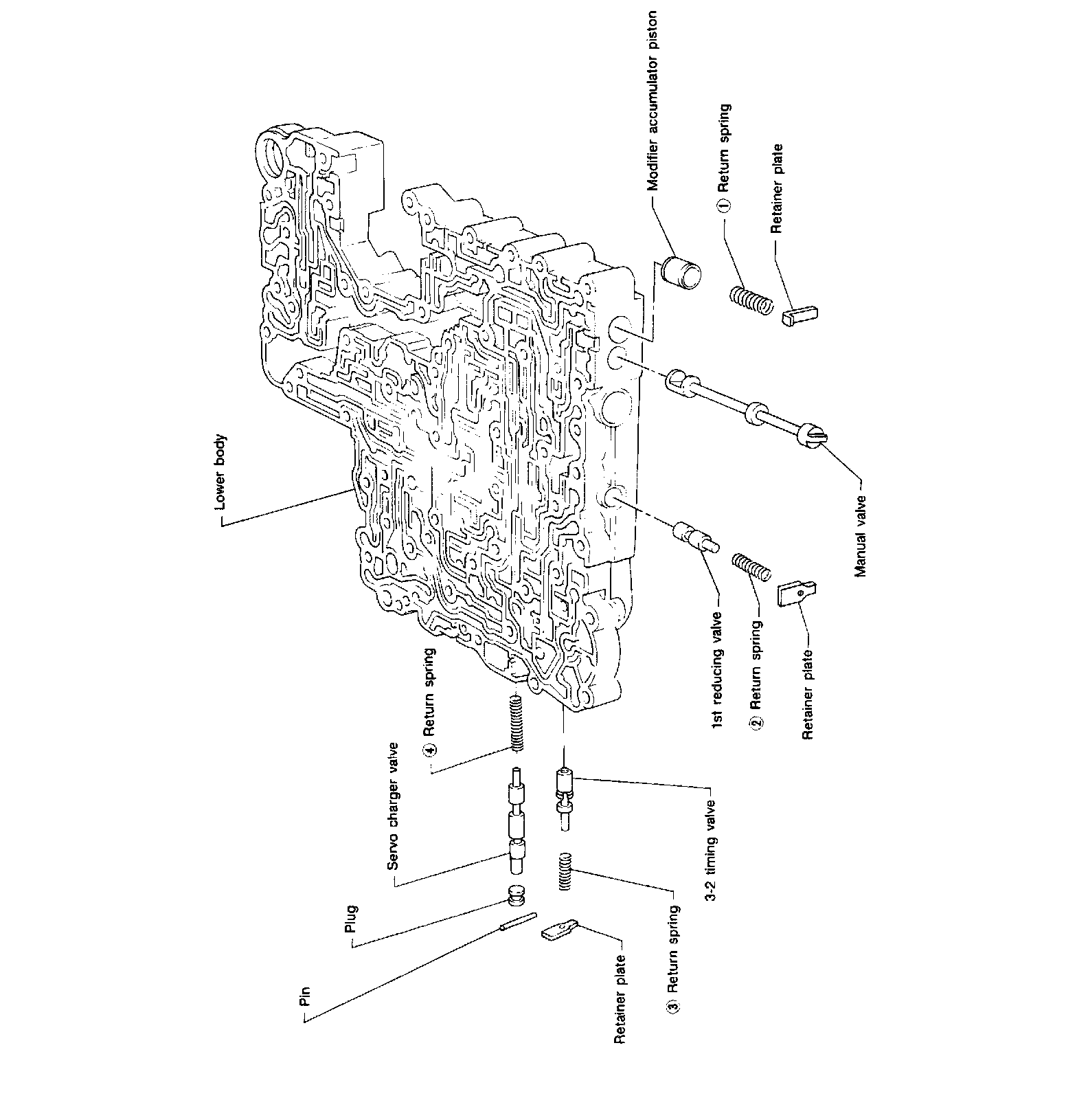

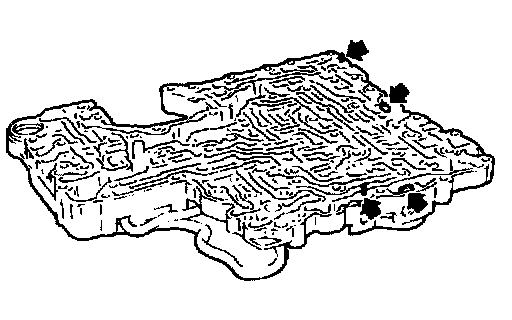

1. Remove valves at parallel pins.
2. Remove valves at retainer plates. For removal procedures, refer to "DISASSEMBLY" in "Control Valve Upper Body".

INSPECTION
Valve springs

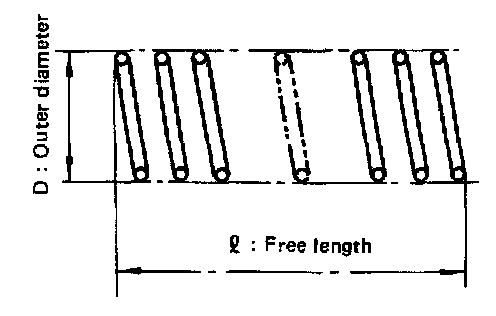

- Check each valve spring for damage or deformation. Also measure free length and outer diameter.
Inspection standard: Refer to Specifications; Mechanical.
- Replace valve springs if deformed or fatigued.

Control valves
- Check sliding surfaces of control valves, sleeves and plugs for damage.

ASSEMBLY





- Install control valves. For installation procedures, refer to "ASSEMBLY" in "Control Valve Upper Body".
