Front Door Panel: Service and Repair

Part 1:

Part 2:

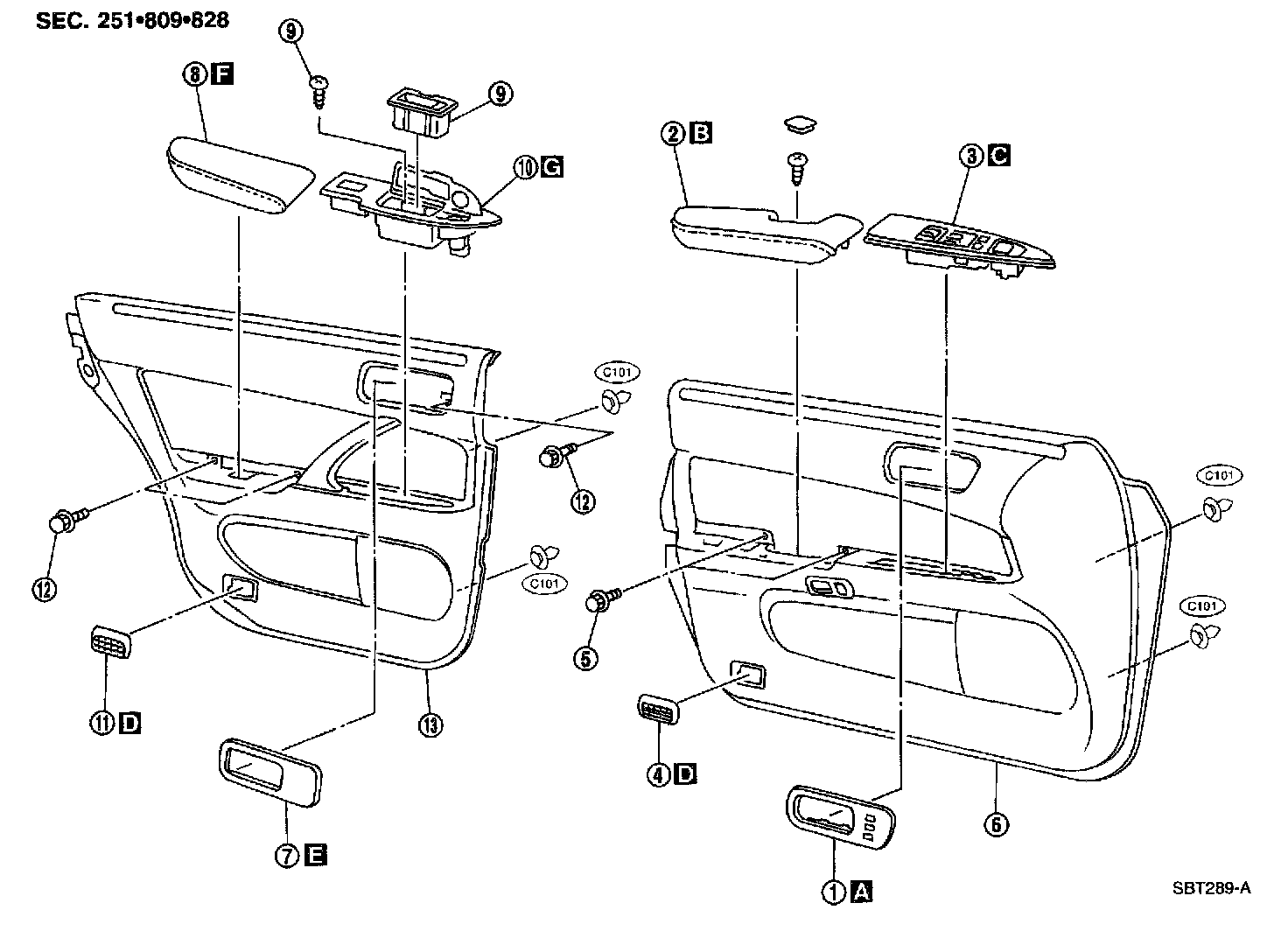

REMOVAL - Door trim

Front door trim
1. Remove inside handle escutcheon, then disconnect auto drive positioner connector. A
2. Remove door armrest. B
3. Remove power window switches, then disconnect the connectors. C
4. Remove door step lamp, then disconnect step lamp connector. D
5. Remove bolts securing door finisher.
6. Pull on door finisher to remove clip from door panel and remove door finisher, then disconnect trunk lid and fuel lid opener switch connector.
