Keyless Entry: Service and Repair

REMOTE KEYLESS ENTRY SYSTEM
OPERATED PROCEDURE

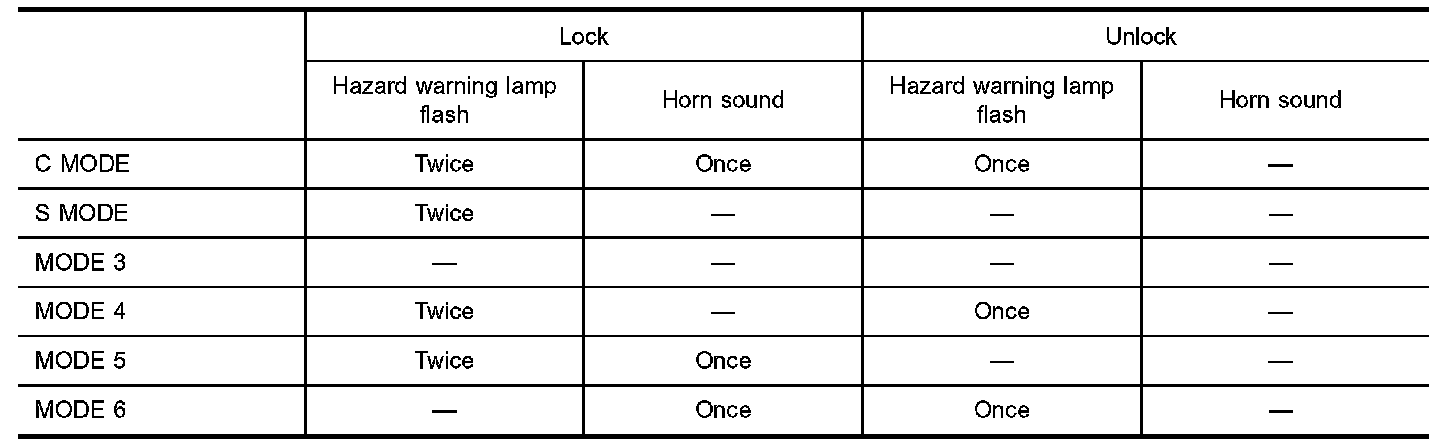

The hazard and horn reminder has six steps.

Operating Function Of Hazard And Horn Reminder:

How to change hazard and horn reminder mode

With CONSULT-II
Hazard and horn reminder can be changed by CONSULT-II.


Without CONSULT-II

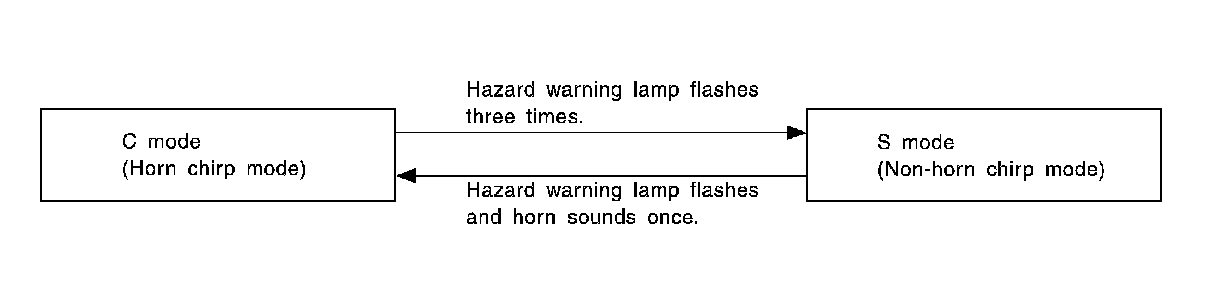

When LOCK and UNLOCK signals are sent from the keyfob for more than 2 seconds at the same time, the hazard and horn reminder mode is changed and hazard warning lamp flashes and horn sounds as shown above:

NOTE: Reminder mode setting cannot be changed without CONSULT-II for MODES 3, 4, 5, and 6. However, C and S MODES can be changed without CONSULT-II.
