Memory Automatic Set


MEMORY AUTOMATIC SET
Two drive positions can be retained in the memory. Press memory switch to set driver's seat to preset position.

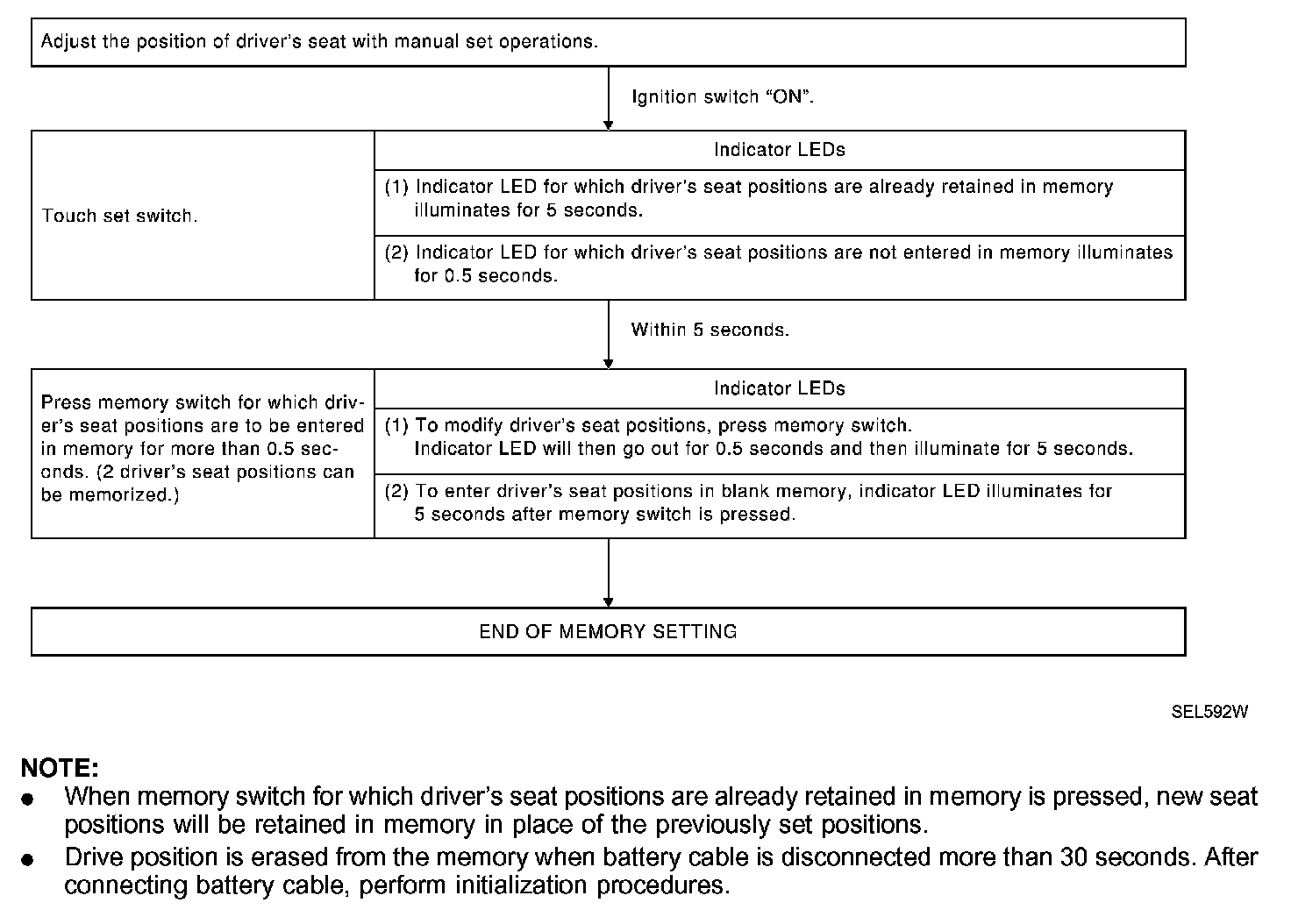

Procedure For Storing Memory:

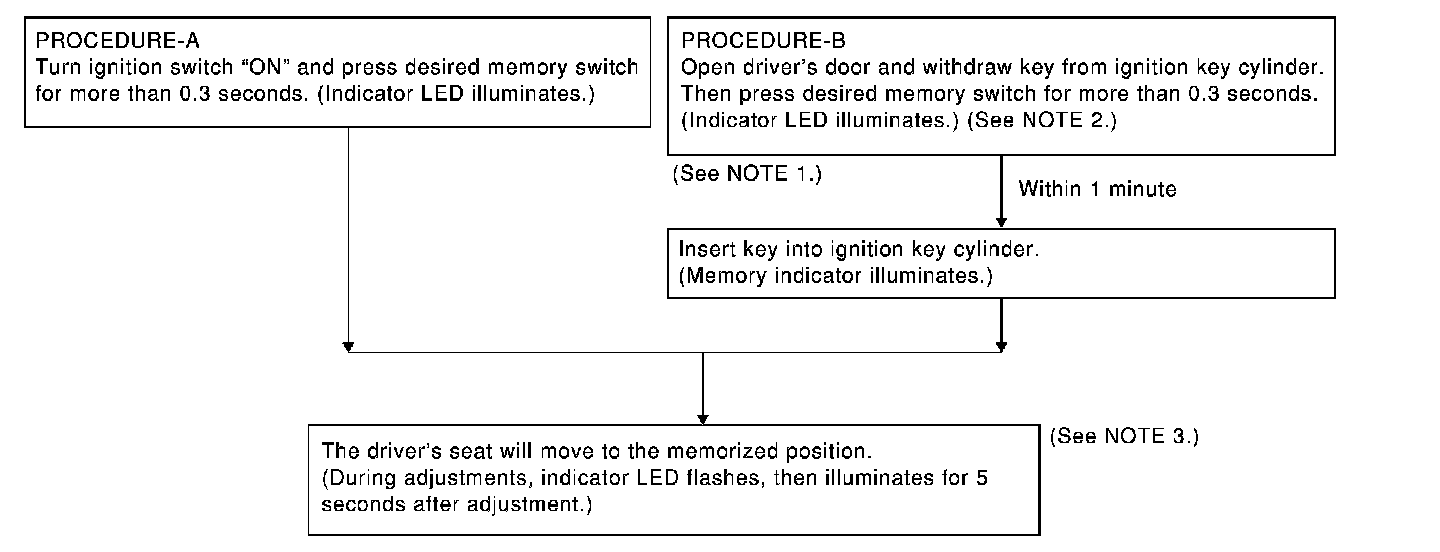

Selecting The Memorized Position:






NOTE: 1. Do not keep cancel switch pressed as it will not operate.
2. Automatic exiting setting will be performed.

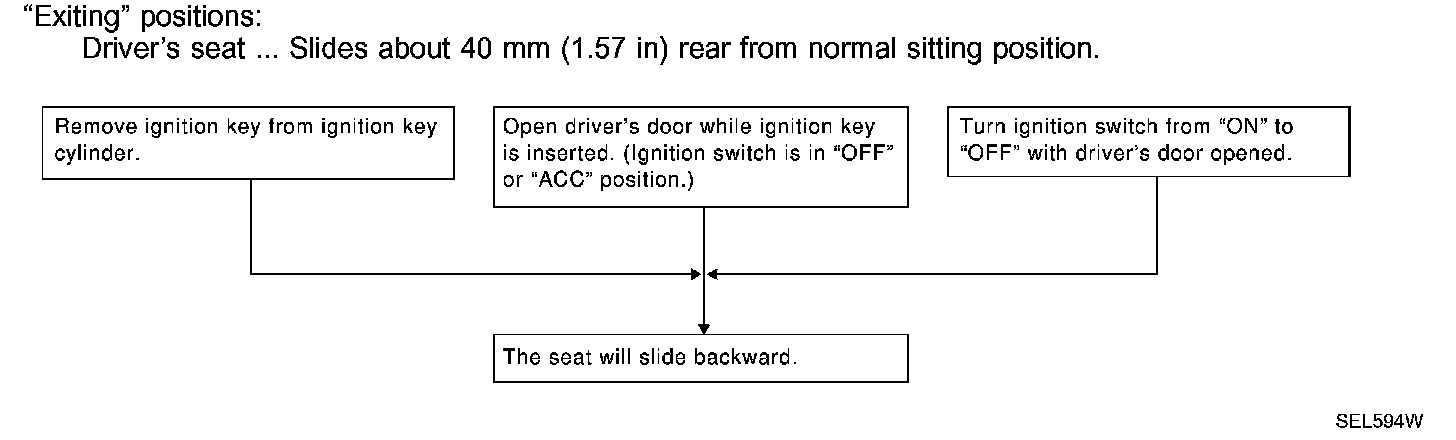

Automatic Exiting Setting:

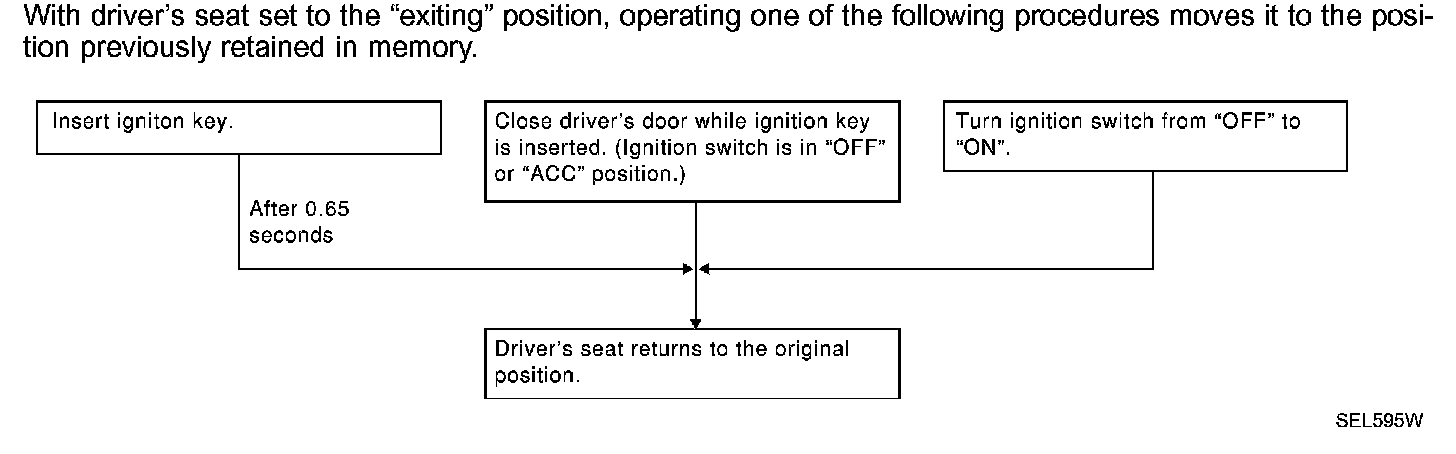

Automatic Set Return:

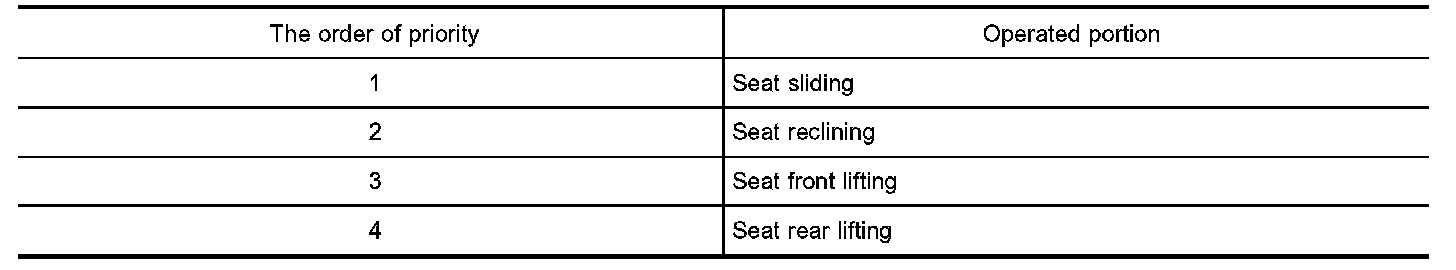

3. The driver's seat position (see the above Table) operates in the order of priority.
