Cruise Control Relay: Testing and Inspection

PARK/NEUTRAL POSITION (PNP) RELAY (FOR A/T MODELS)

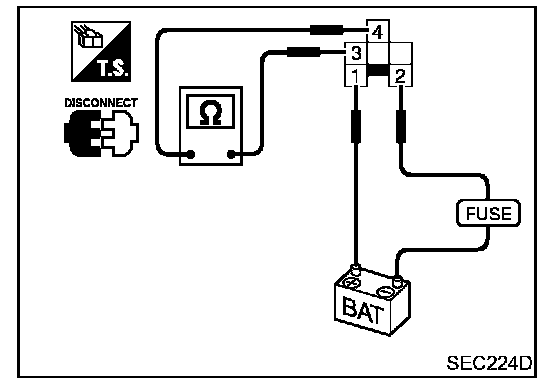

1. Apply 12 V direct current between park/neutral position relay terminals 1 and 2.

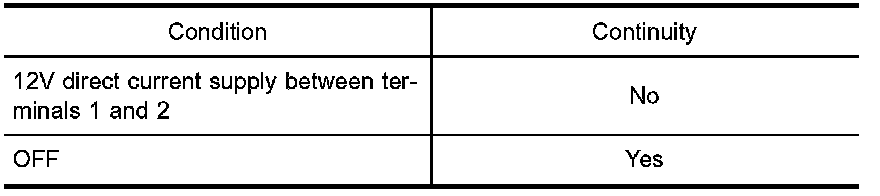

2. Check continuity between park/neutral position (PNP) Terminals 3 and 4.
