Modules/Control Units/Actuator

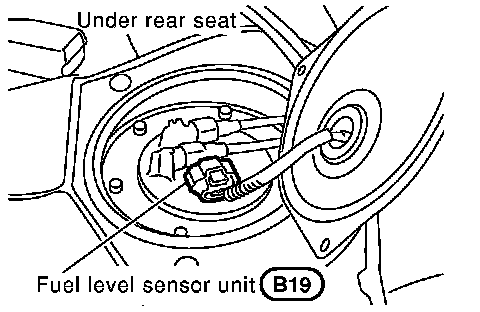

Under Rear Seal, Fuel Level Sensor Unit:

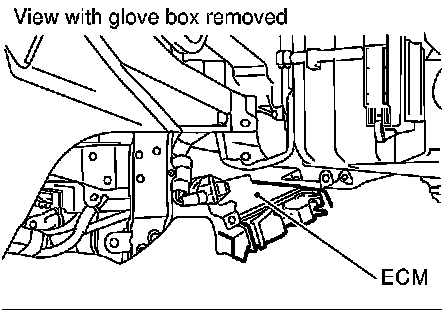

ECM:

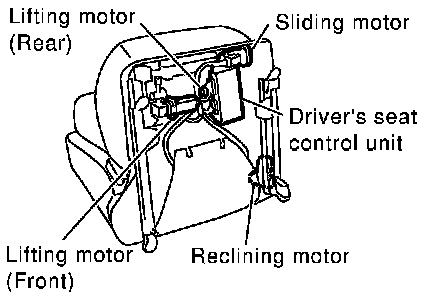

Lifting Motor (Rear, Front), Sliding Motor, Driver's Seat Control Unit, Reclining Motor:

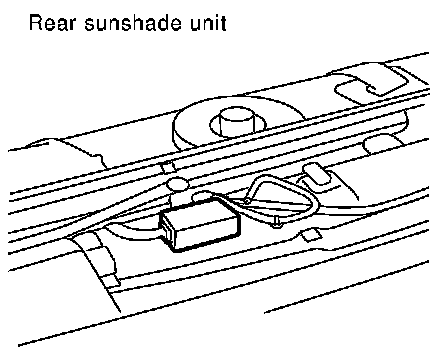

Rear Sunshade Unit:

Rear Sunshade Unit:

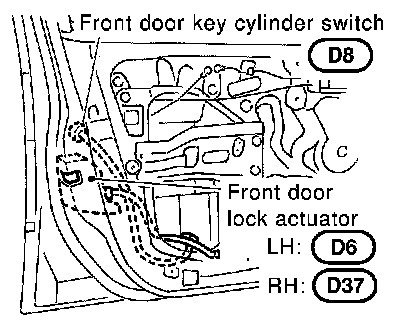

Front Door Key Cylinder Switch, Front Door Lock Actuator LH, RH:

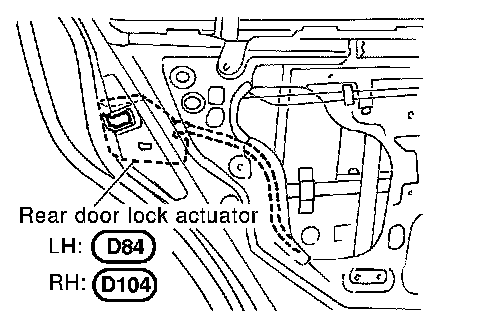

Rear Door Lock Actuator:

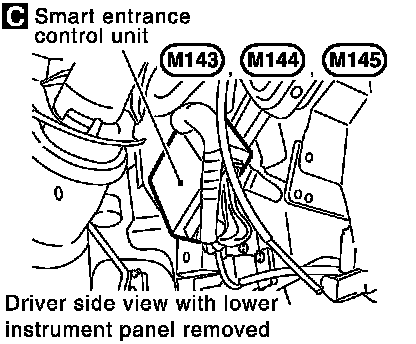

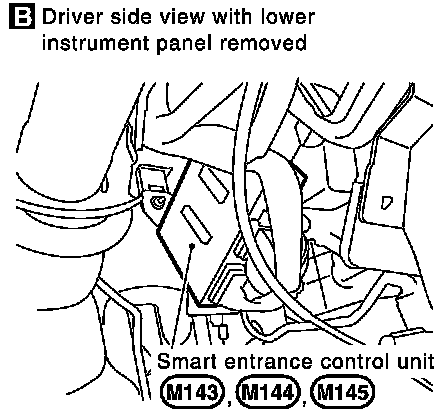

Smart Entrance Control Unit:

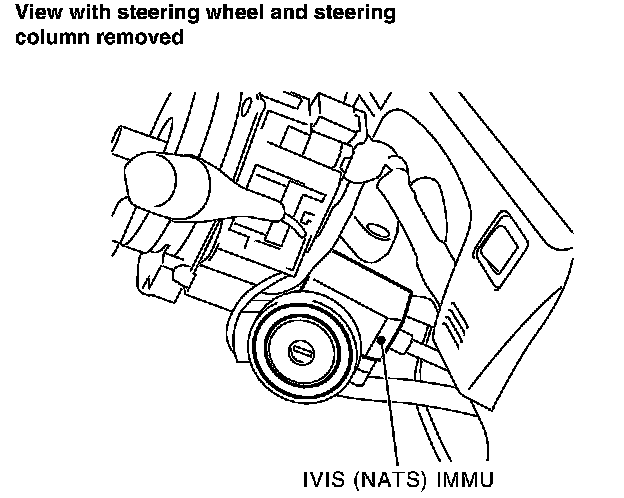

IVIS (NATS) IMMU:

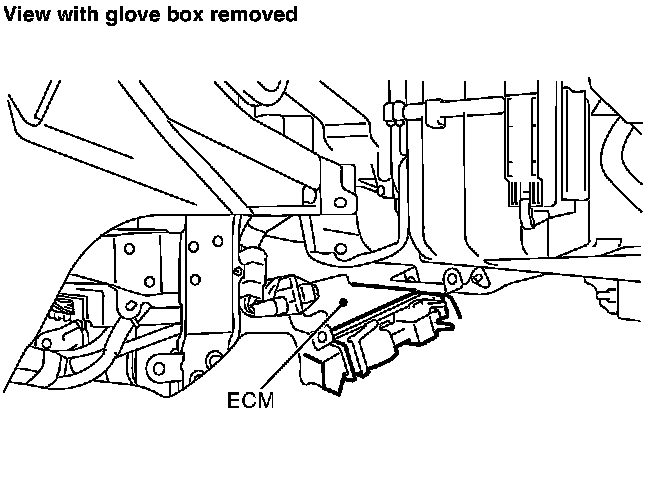

ECM:

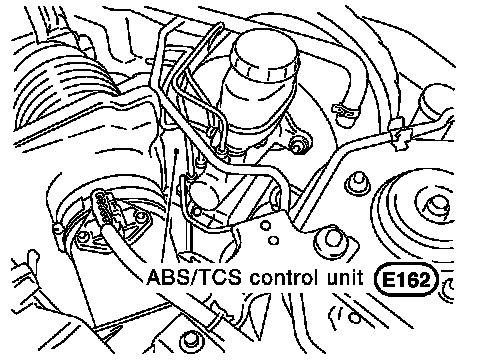

ABS/TCS Control Unit:

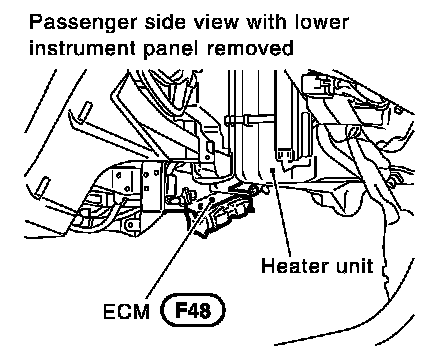

ECM, Heater Unit:

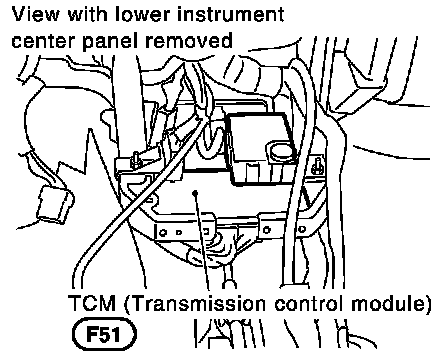

TCM (Transmission Control Unit):

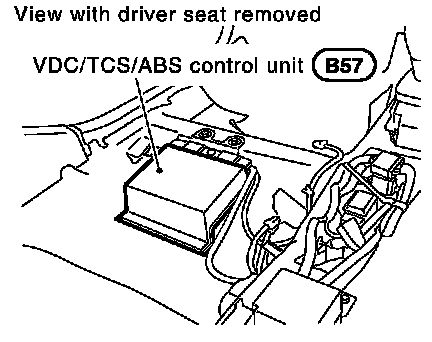

VDC/TCS/ABS Control Unit:

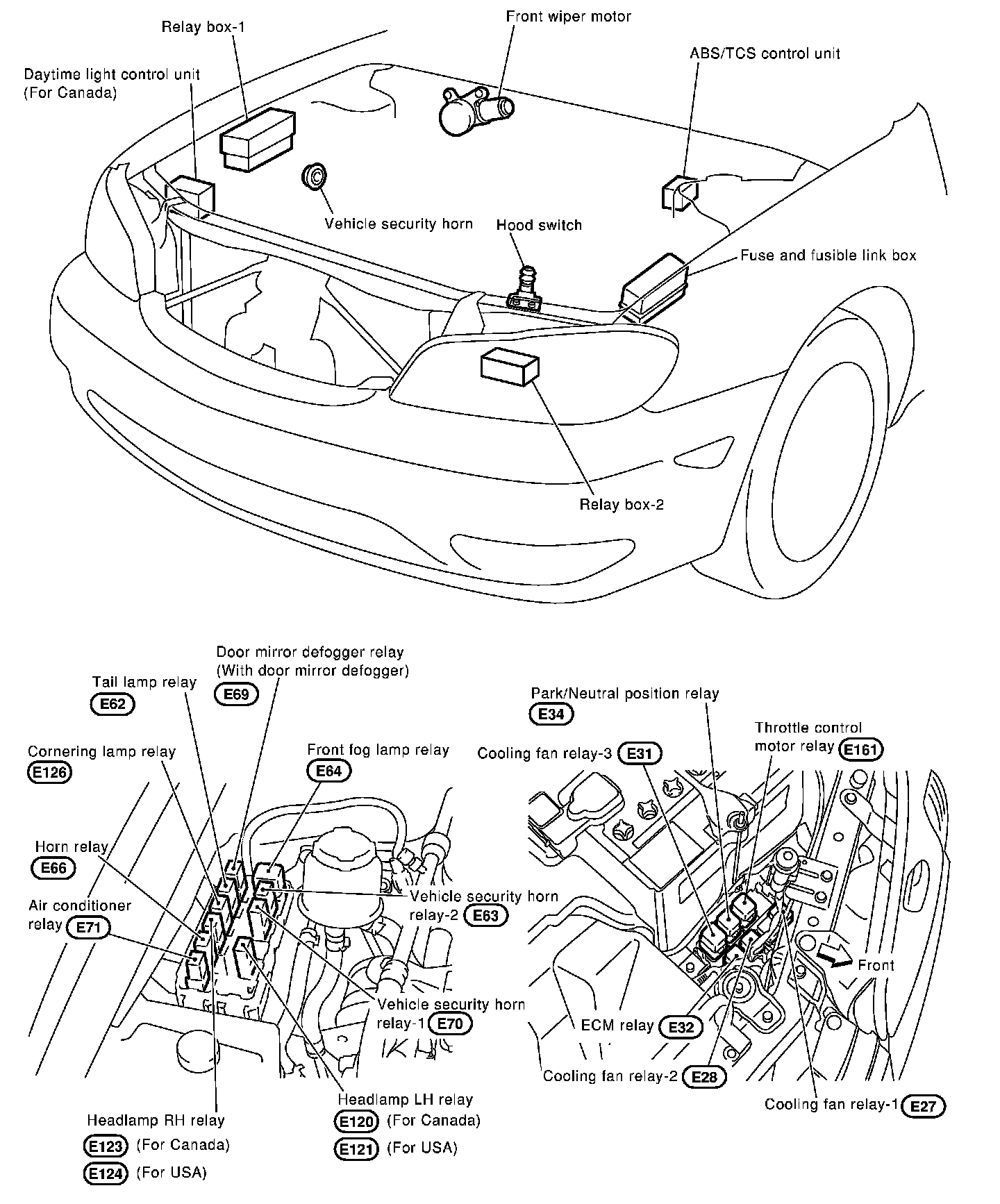

Engine Compartment:

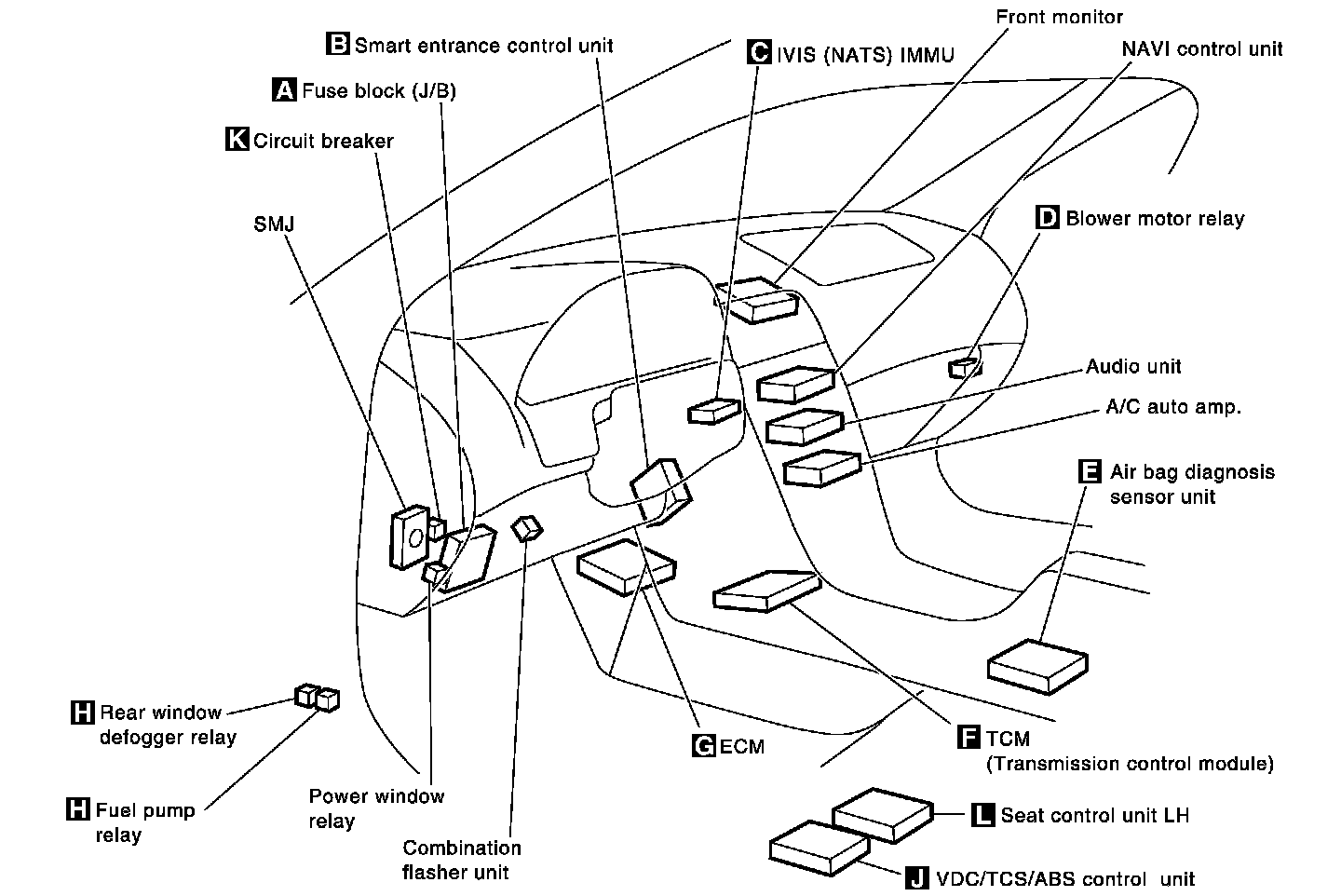

Passenger Compartment:

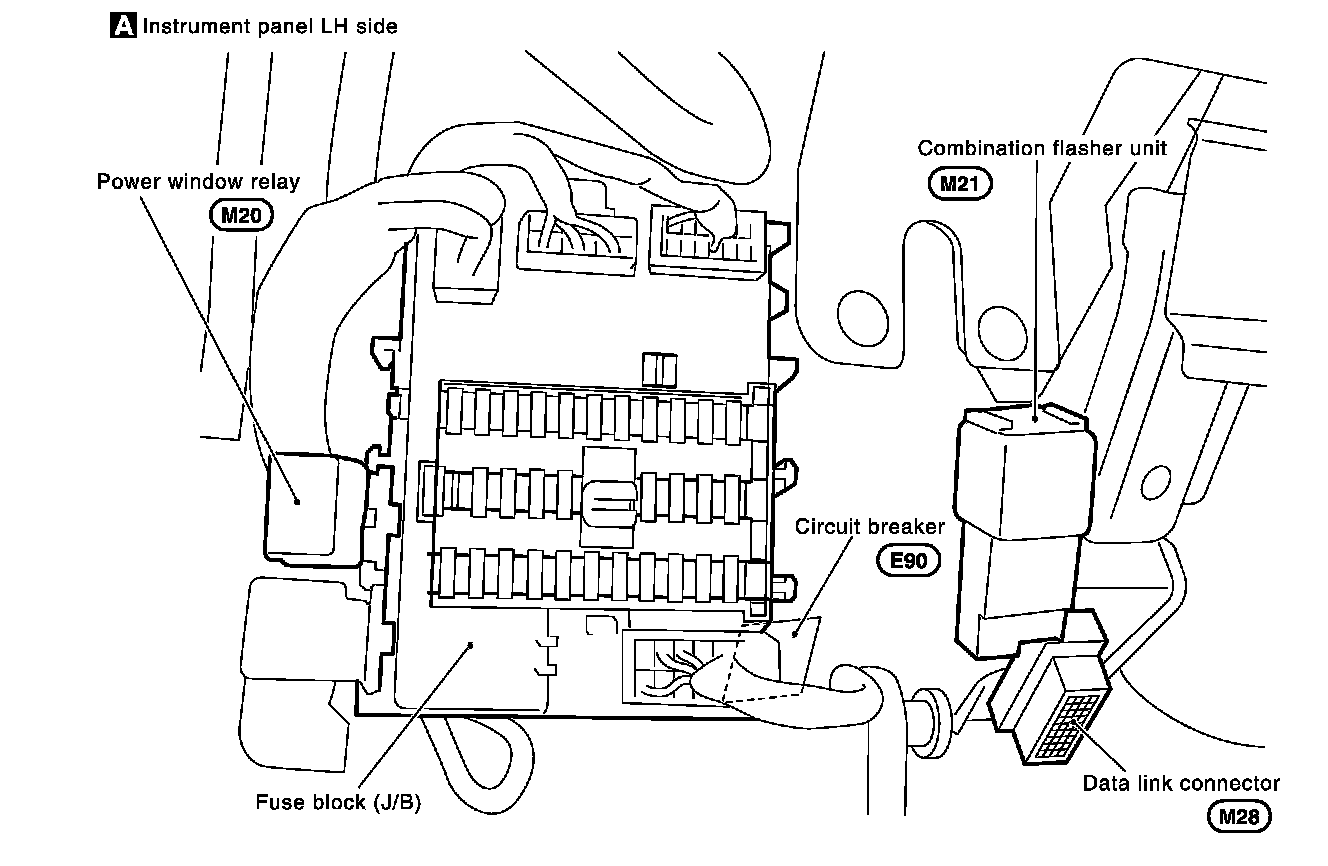

Power Window Relay, Fuse Block (J/B), Data Link Connector, Circuit Breaker, Combination Flasher Unit:

Smart Entrance Control Unit:

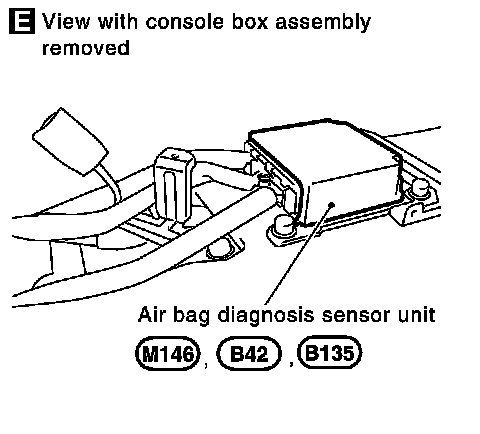

Air Bag Diagnosis Sensor Unit:

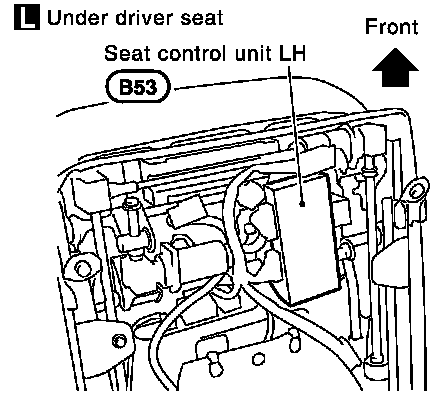

Seat Control Unit LH:

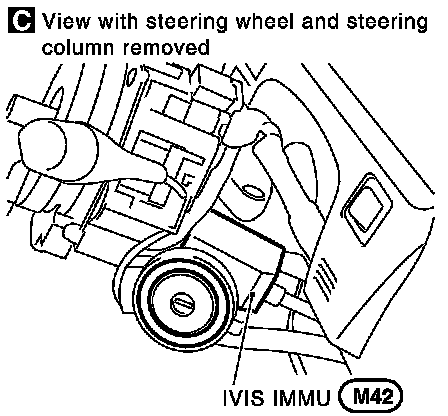

IVIS IMMU:

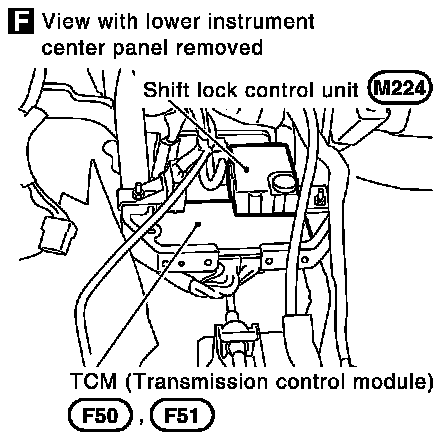

Shift Lock Control Unit, TCM (Transmission Control Module):

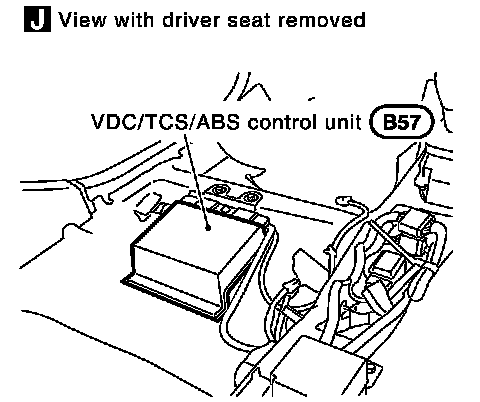

VDC/TCS/ABS Control Unit:

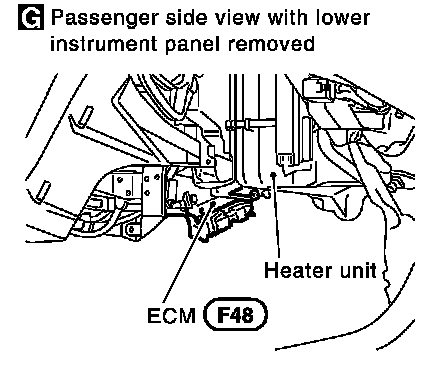

ECM, Heater Unit:

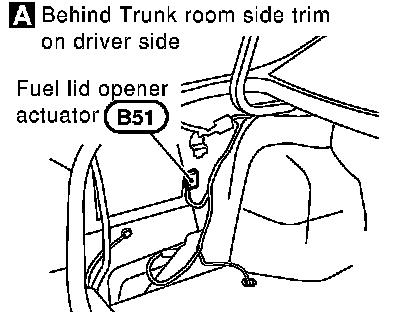

Fuel Lid Opener Actuator:

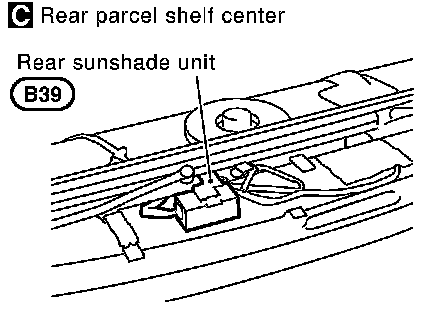

Rear Sunshade Unit:
