EL-Vehsec

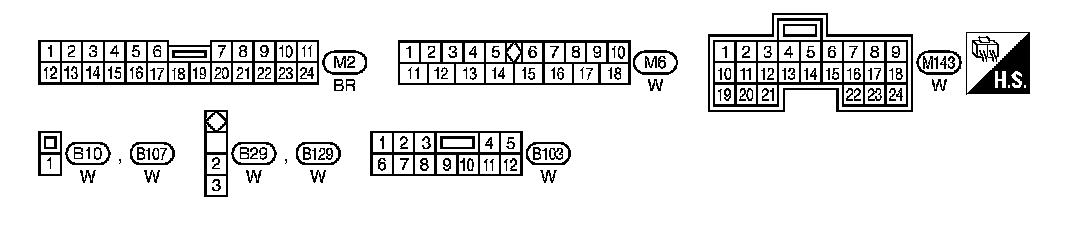

EL-VEHSEC-01 Connectors View:

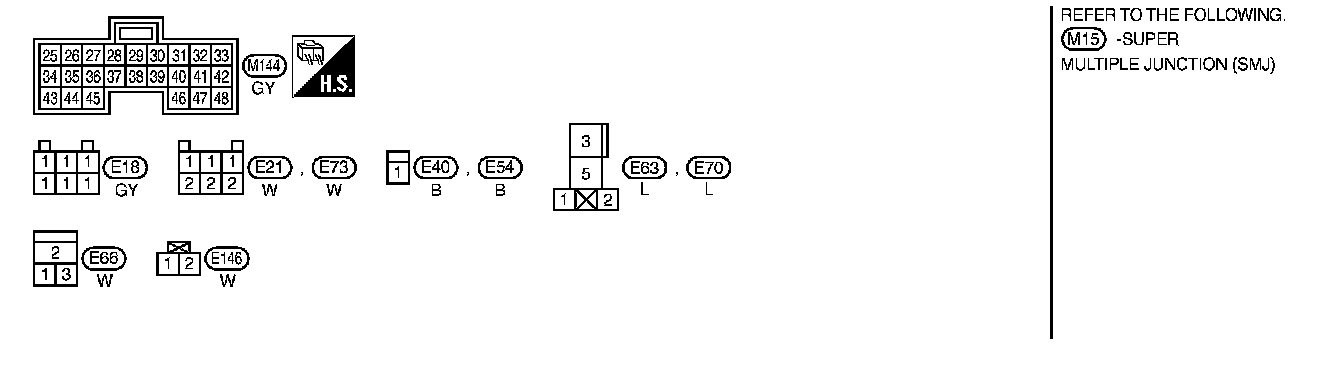

EL-VEHSEC-02 Connectors View:

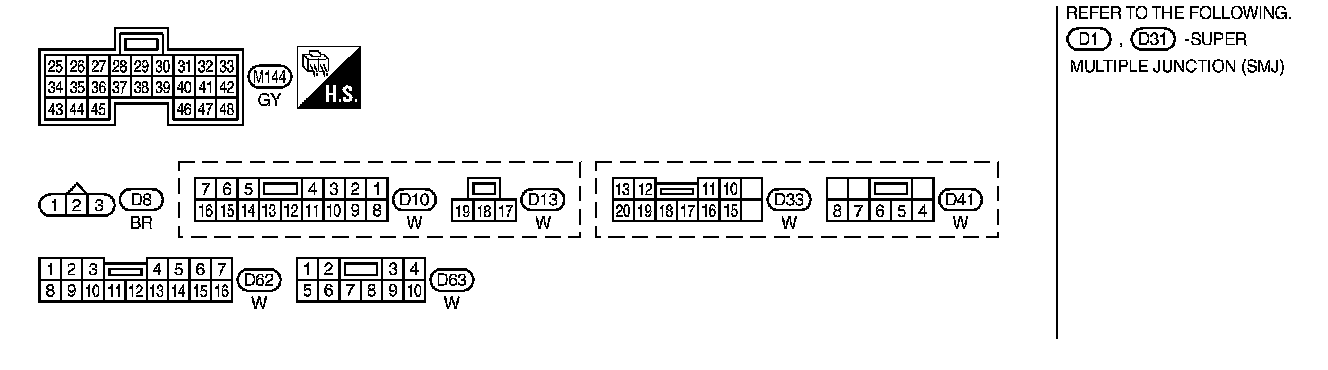

EL-VEHSEC-03 Connectors View:

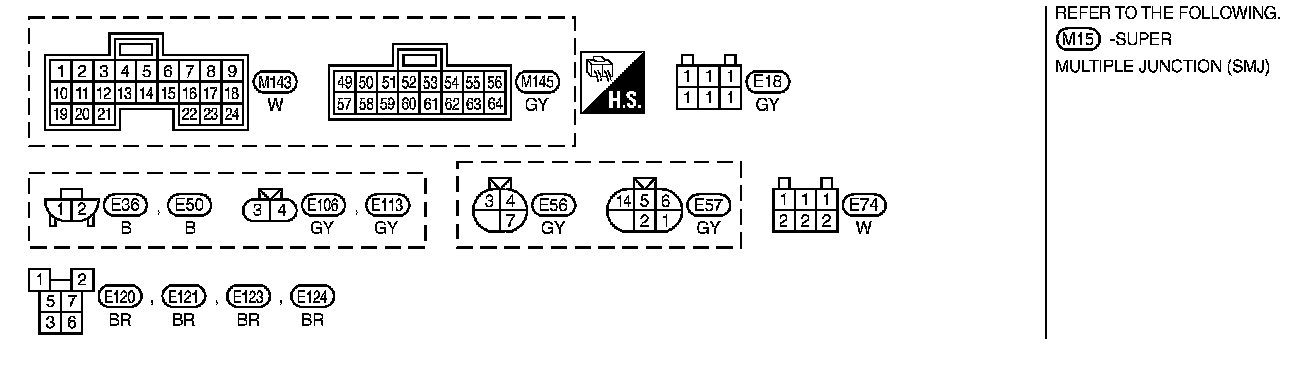

EL-VEHSEC-04 Connectors View:
EL-VEHSEC-05 Connectors View:

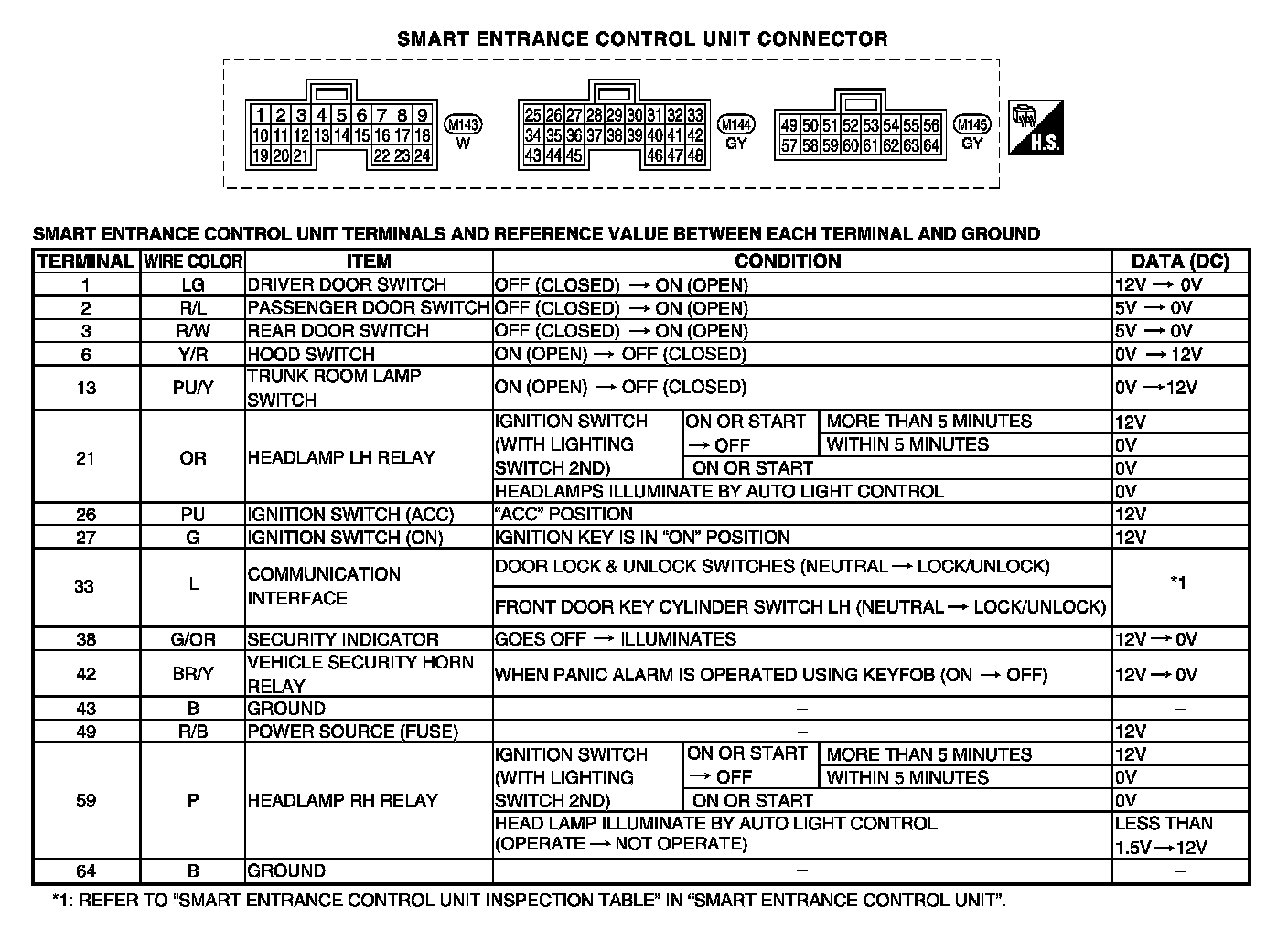

Smart Entrance Control Unit Connector:
