Keyless Entry
Keyless Entry

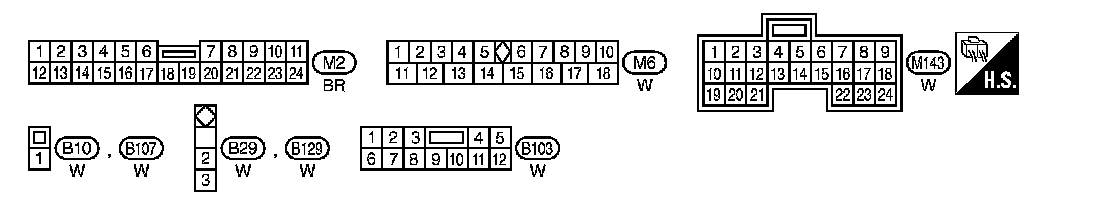

EL-KEYLESS-01 Connectors View:

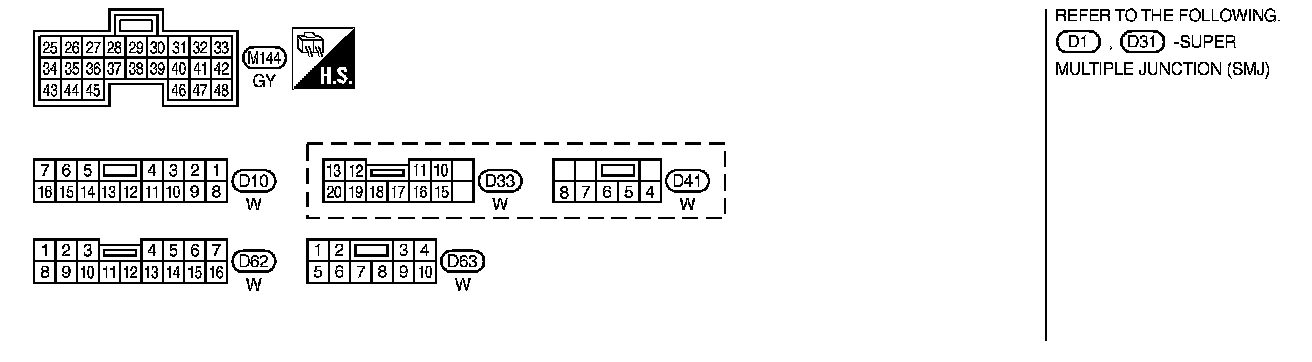

EL-KEYLESS-02 Connectors View:

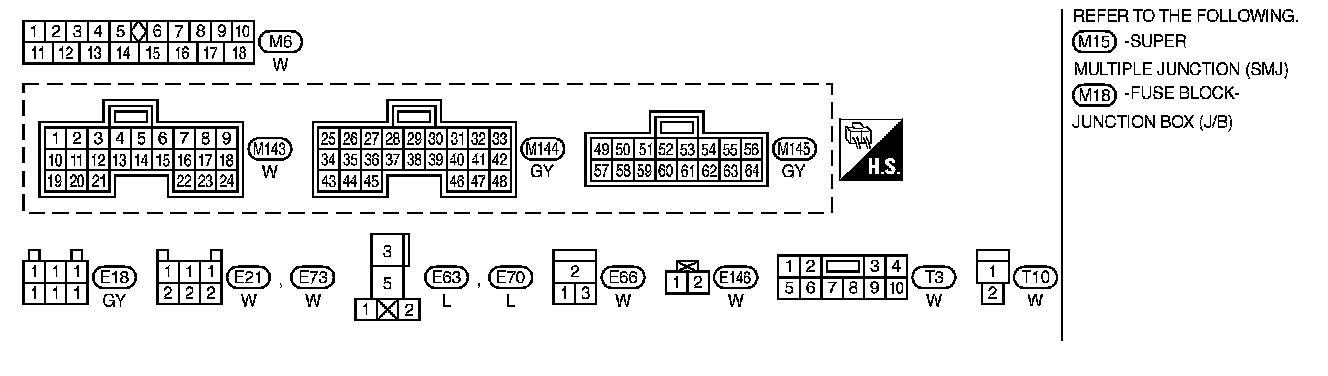

EL-KEYLESS-03 Connectors View:
EL-KEYLESS-04 Connectors View:

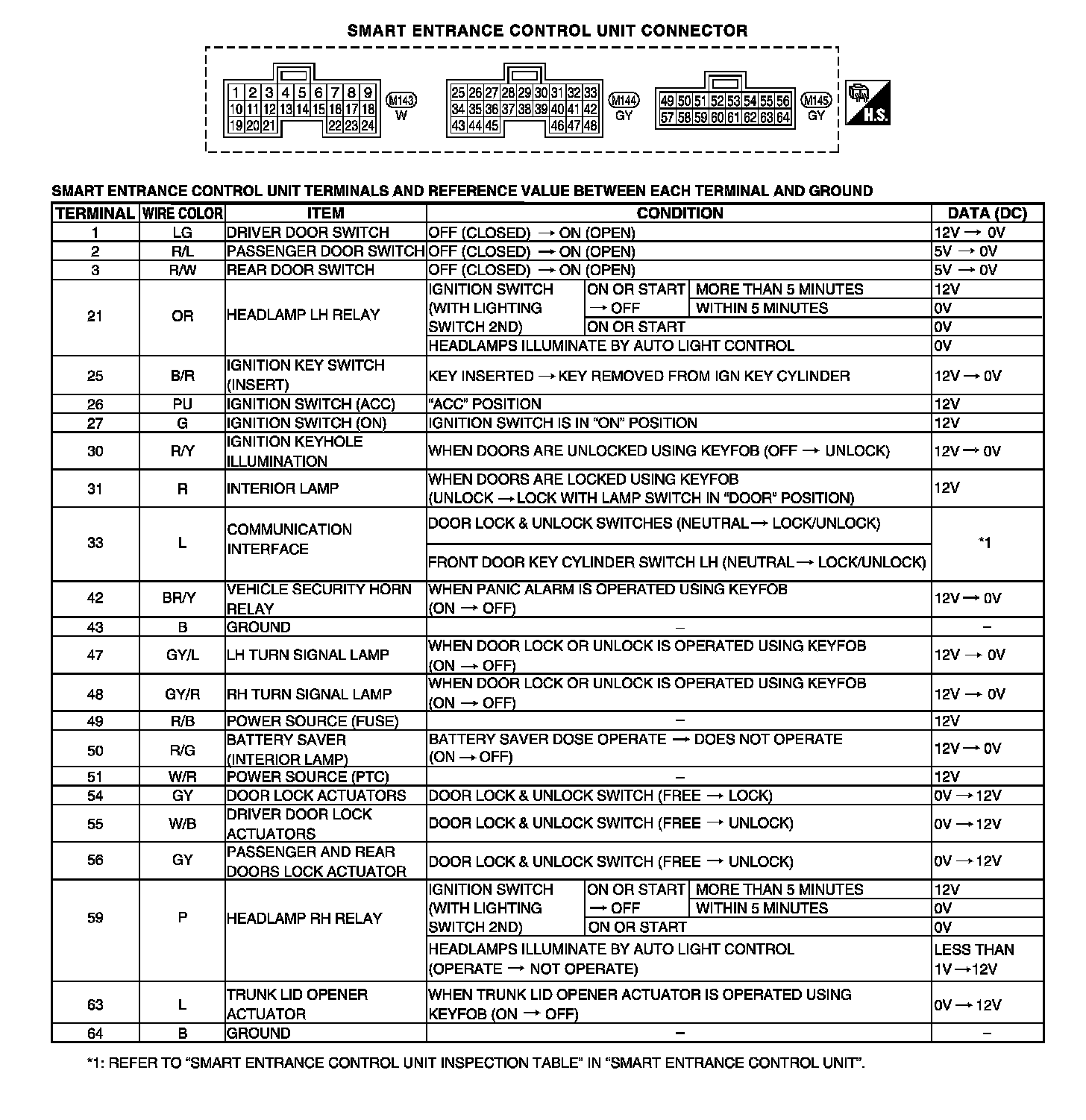

Smart Entrance Control Unit Connector:
