Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2002
>>
I35 V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Electric Load Sensor
>>
Diagrams
>>
Electrical Diagrams
>>
For CANADA
For CANADA

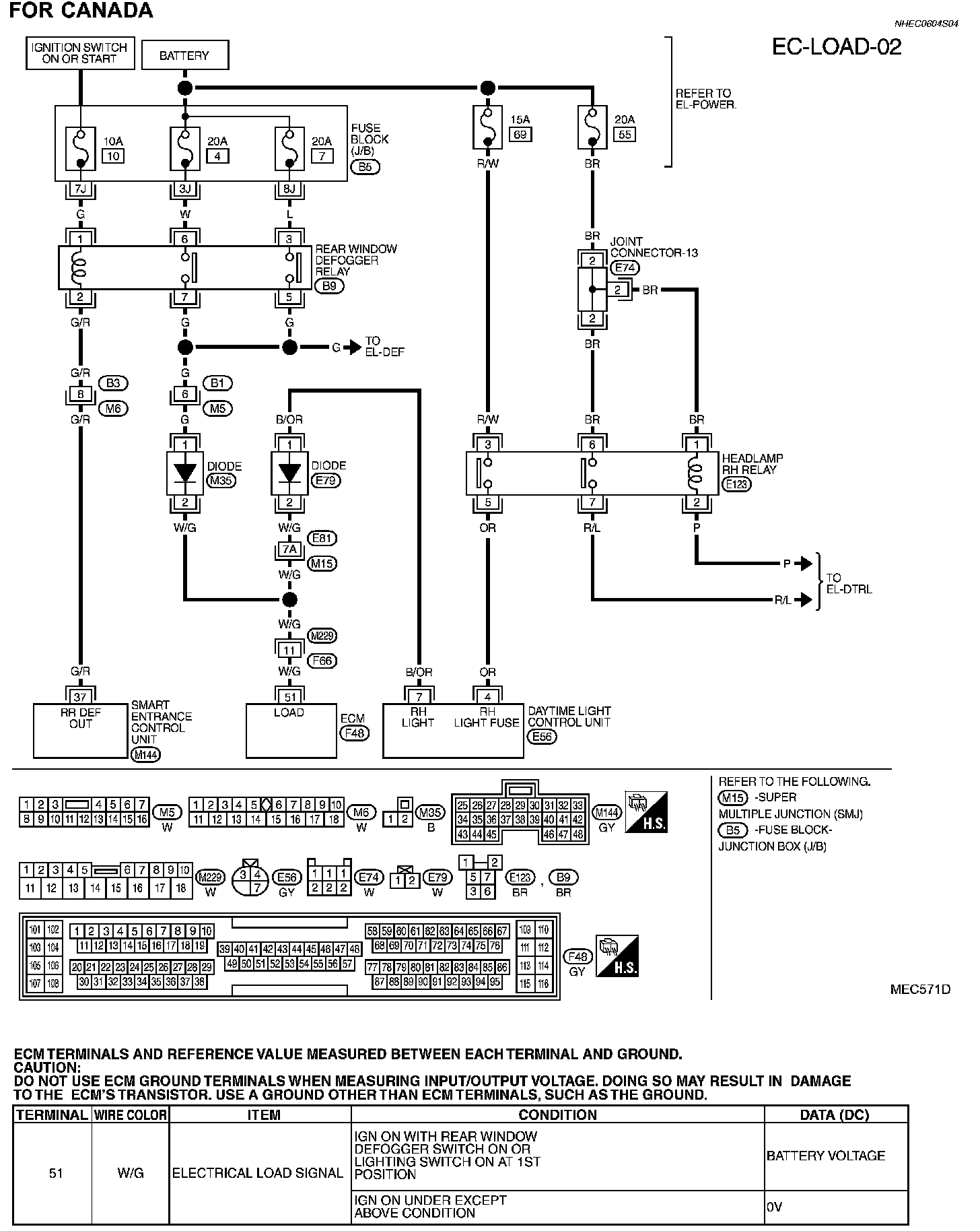

EC-LOAD-02:
