Information Bus: Service Precautions

Controller Area Network (CAN) Communication System

Precautions For Trouble Diagnosis / CAN SYSTEM
Do not apply voltage of 7.0 V or higher to the measurement terminals.

Use the tester with its open terminal voltage being 7.0 V or less.







Precautions For Harness Repair / CAN SYSTEM
Solder the repaired parts, and wrap with tape. [Frays of twisted line must be within 110 mm (4.33 in)]

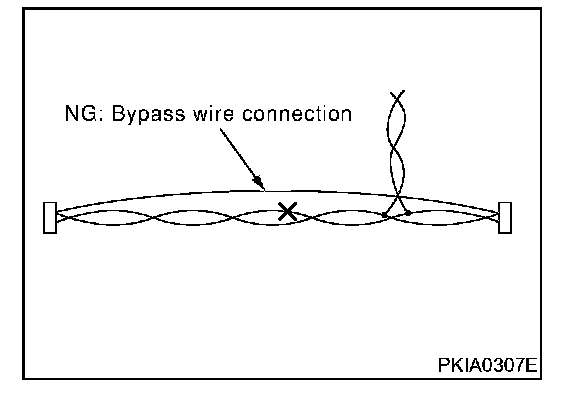

Do not perform bypass wire connections for the repair parts. (The spliced wire will become separated and the characteristics of twisted line will be lost.)
