ABS/TCS Control Unit Circuit Check

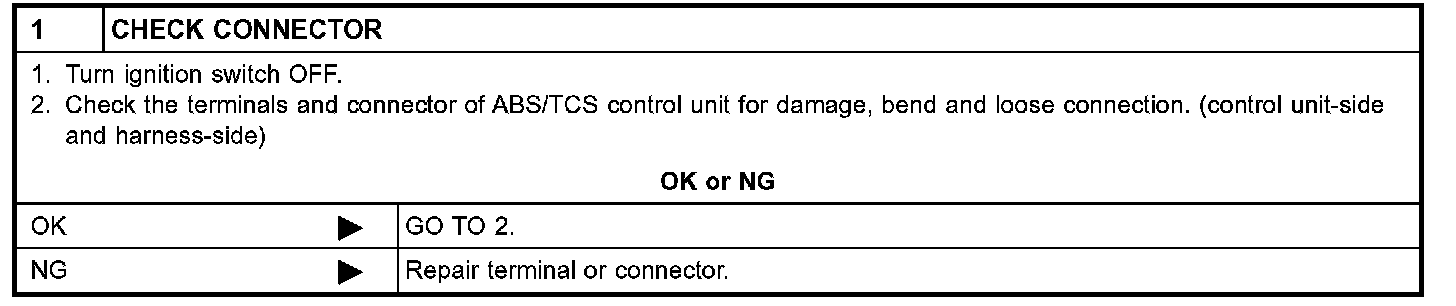

Step 1// ABS/TCS Control Unit Circuit Check / For TCS Models:

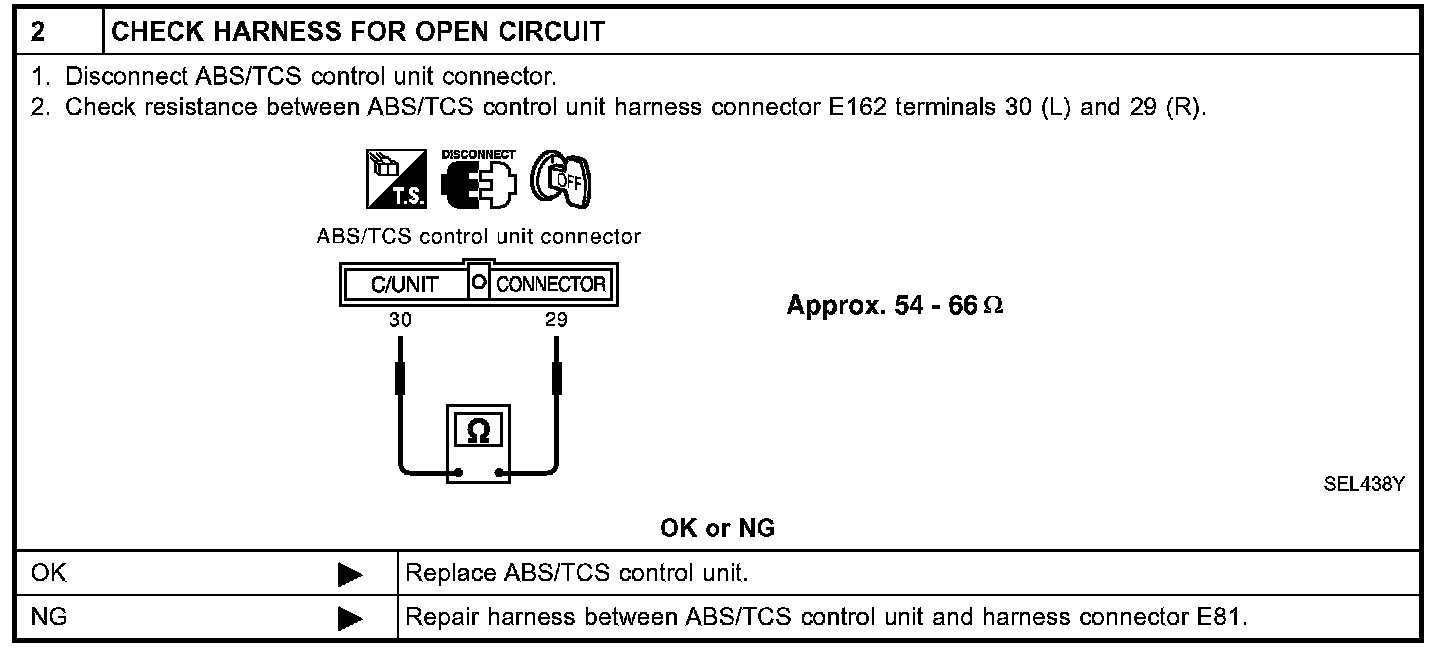

Step 2:
