Circuit Check VDC/TCS/ABS and Steering Wheel Angle Sensor

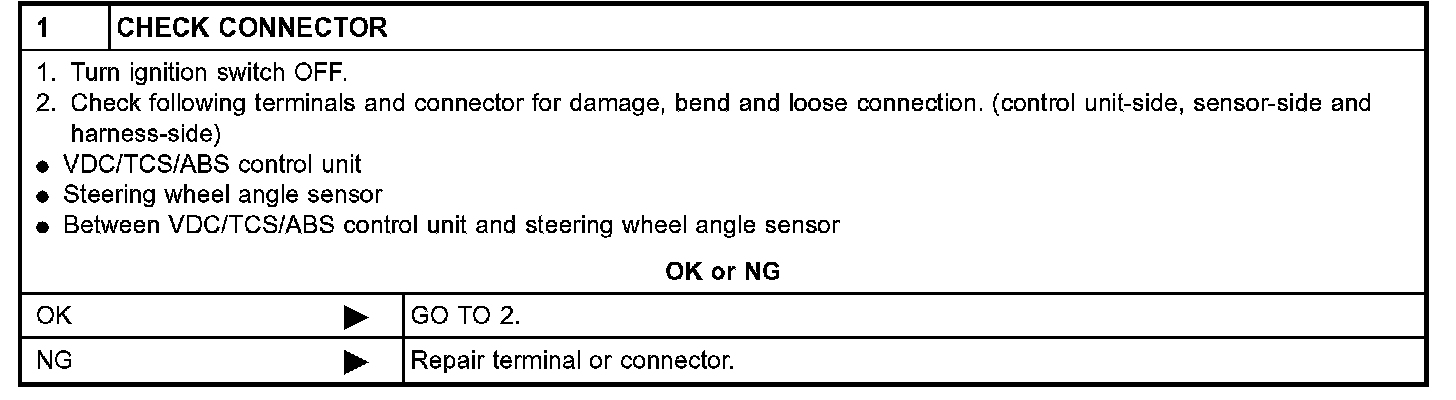

Step 1// Circuit Check Between VDC/TCS/ABS Control Unit and Steering Wheel Angle Sensor / For VDC Models:

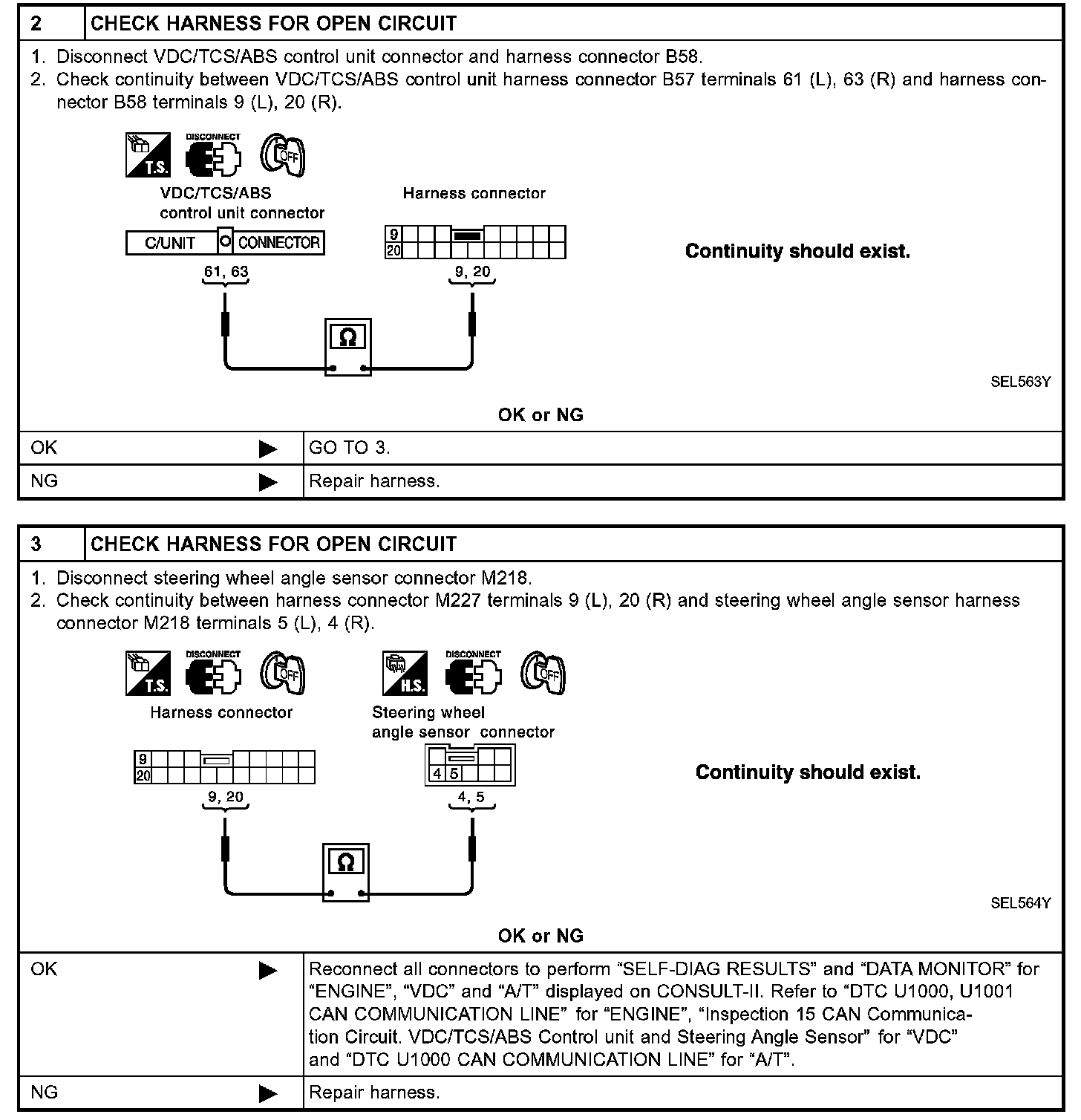

Step 2 - 3:
