Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2002
>>
I35 V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
CAN System For VDC Models
>>
Circuit Checks
>>

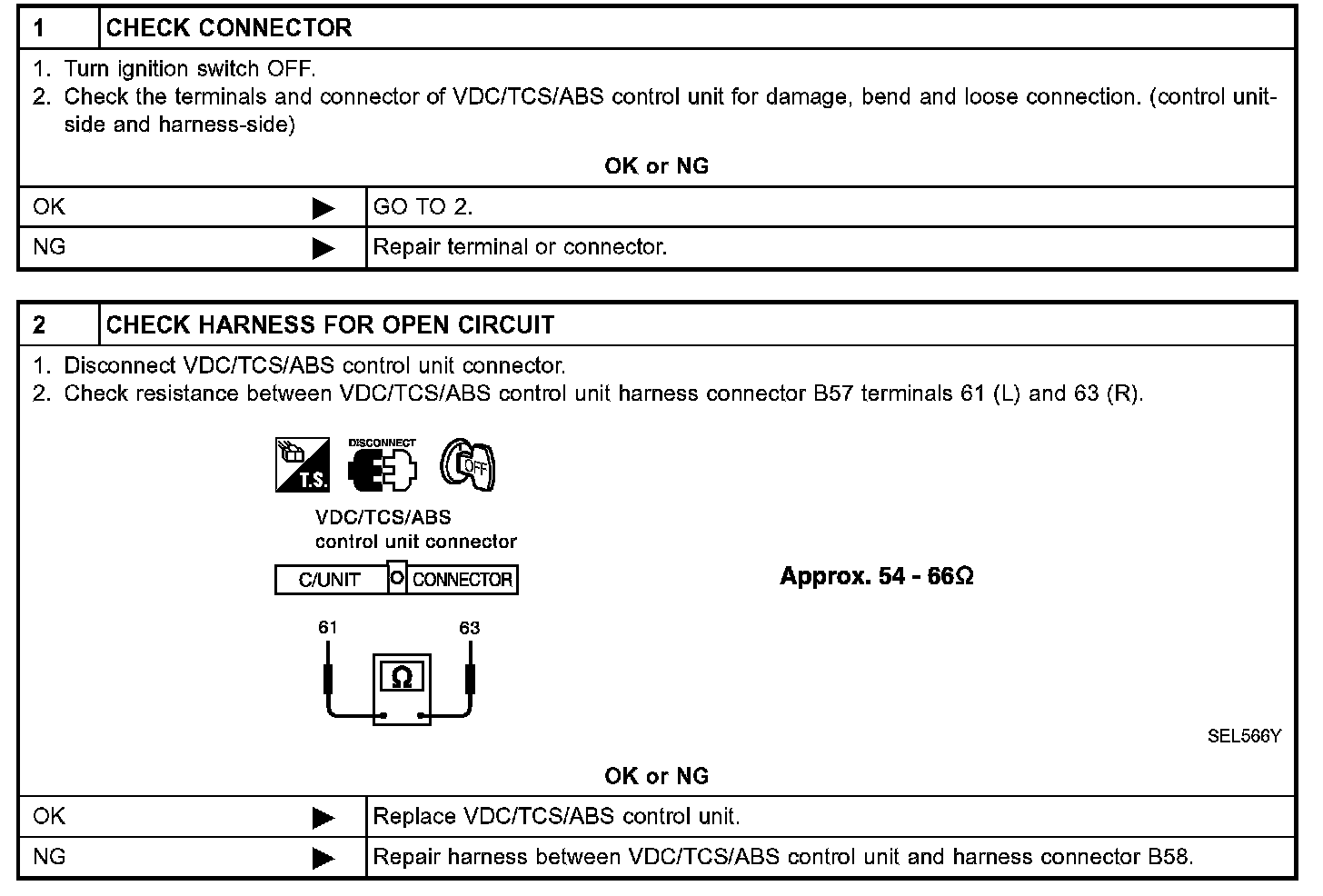

VDC/TCS/ABS Control Unit Circuit Check
VDC/TCS/ABS Control Unit Circuit Check
Step 1 - 2 / VDC/TCS/ABS Control Unit Circuit Check / For VDC Models:
