Oxygen Sensor
>>
Locations
>>
Component Locations
Component Locations

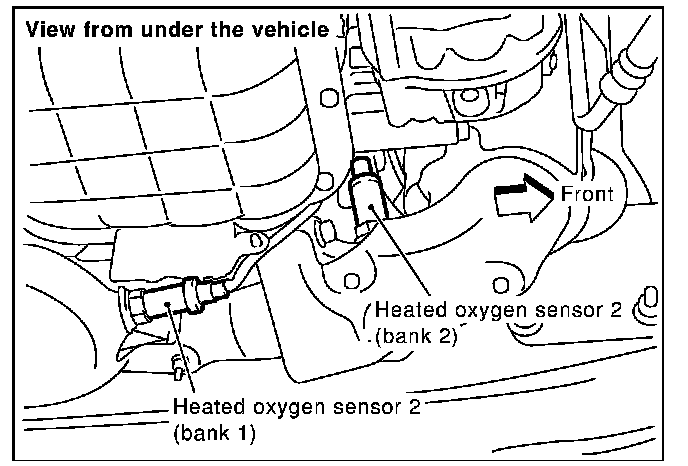

Heated Oxygen Sensor 2 (bank 2), Heated Oxygen Sensor 2 (bank 1):
Engine Control Component Parts Location:

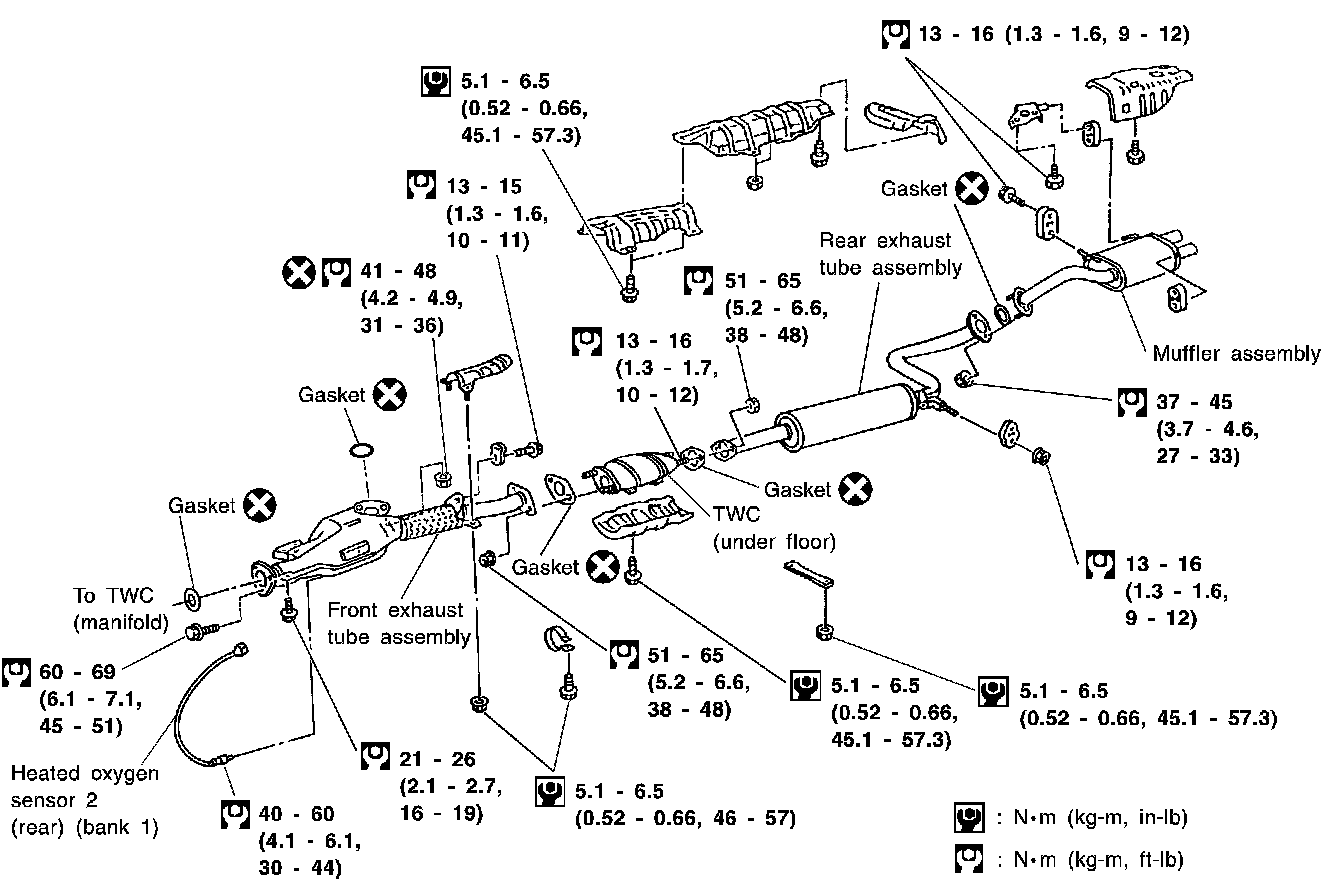

Exhaust System:
