Ignition Timing: Testing and Inspection

IGNITION TIMING
Any of following two methods may be used.




- Method A
a. Attach timing light to loop wire as shown.

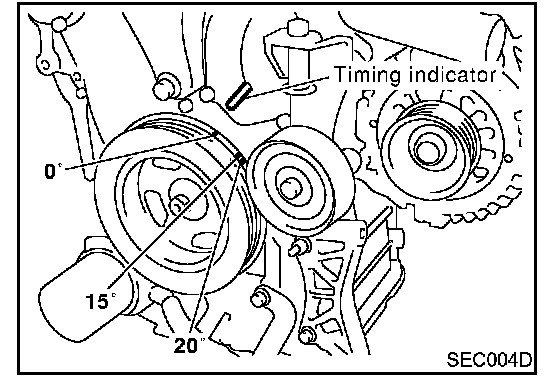

b. Check ignition timing.




- Method B

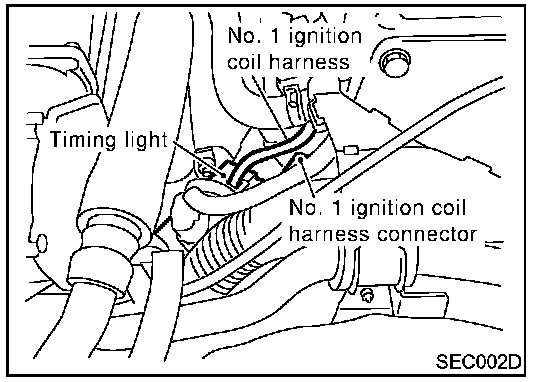

a. Attach timing light to No. 1 ignition coil harness as shown.




b. Check ignition timing.
