Traction Control Module: Service and Repair

VDC/TCS/ABS Control Unit






Removal and Installation

REMOVAL
1. Remove the front seat LH.

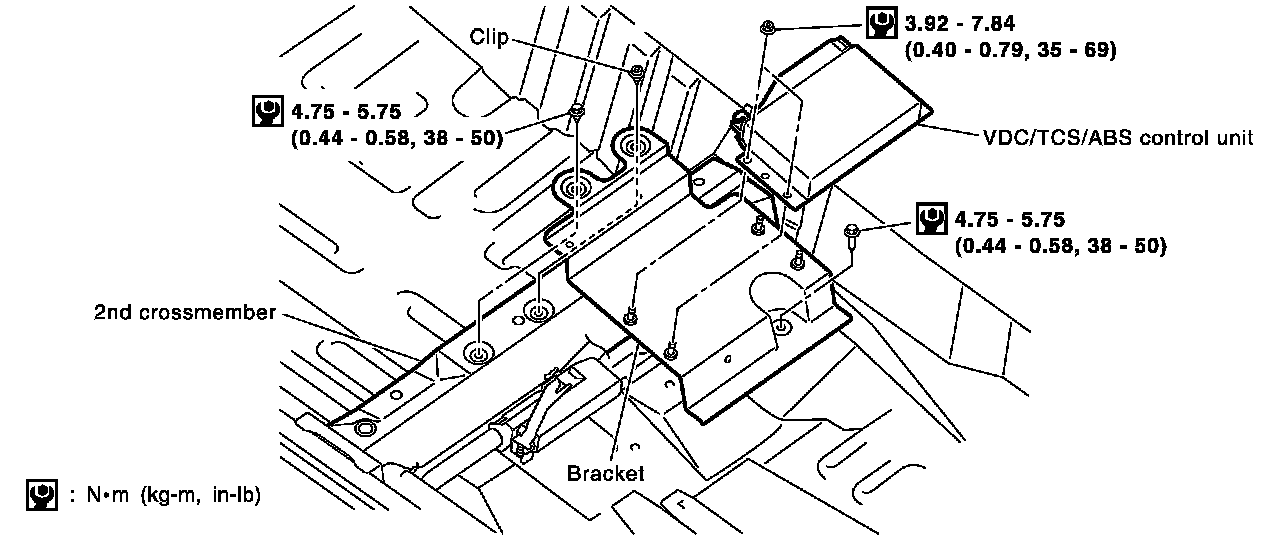

2. Remove the VDC/TCS/ABS control unit.

INSTALLATION
^ Installation is the reverse order of removal.
