Home >> Infiniti >> 2002 >> I35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications >> Camshaft Brackets

Camshaft Brackets

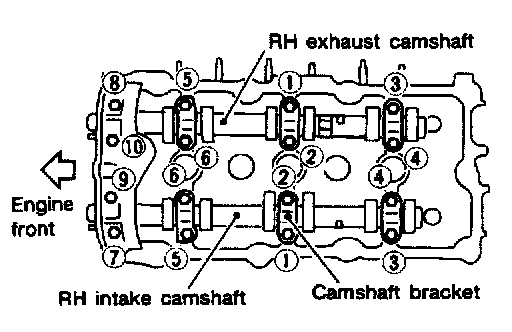

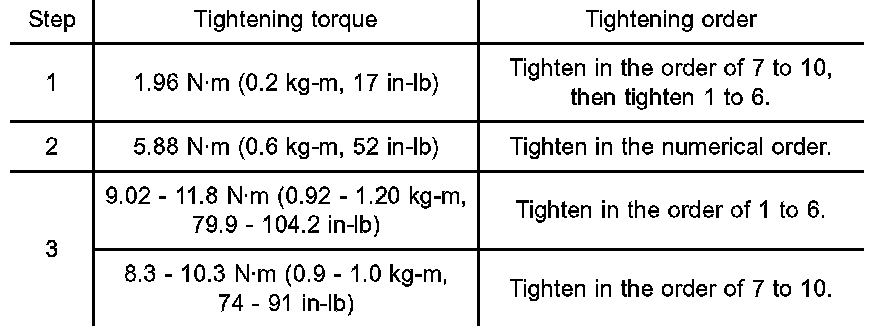

Tighten the camshaft brackets in the following steps.
