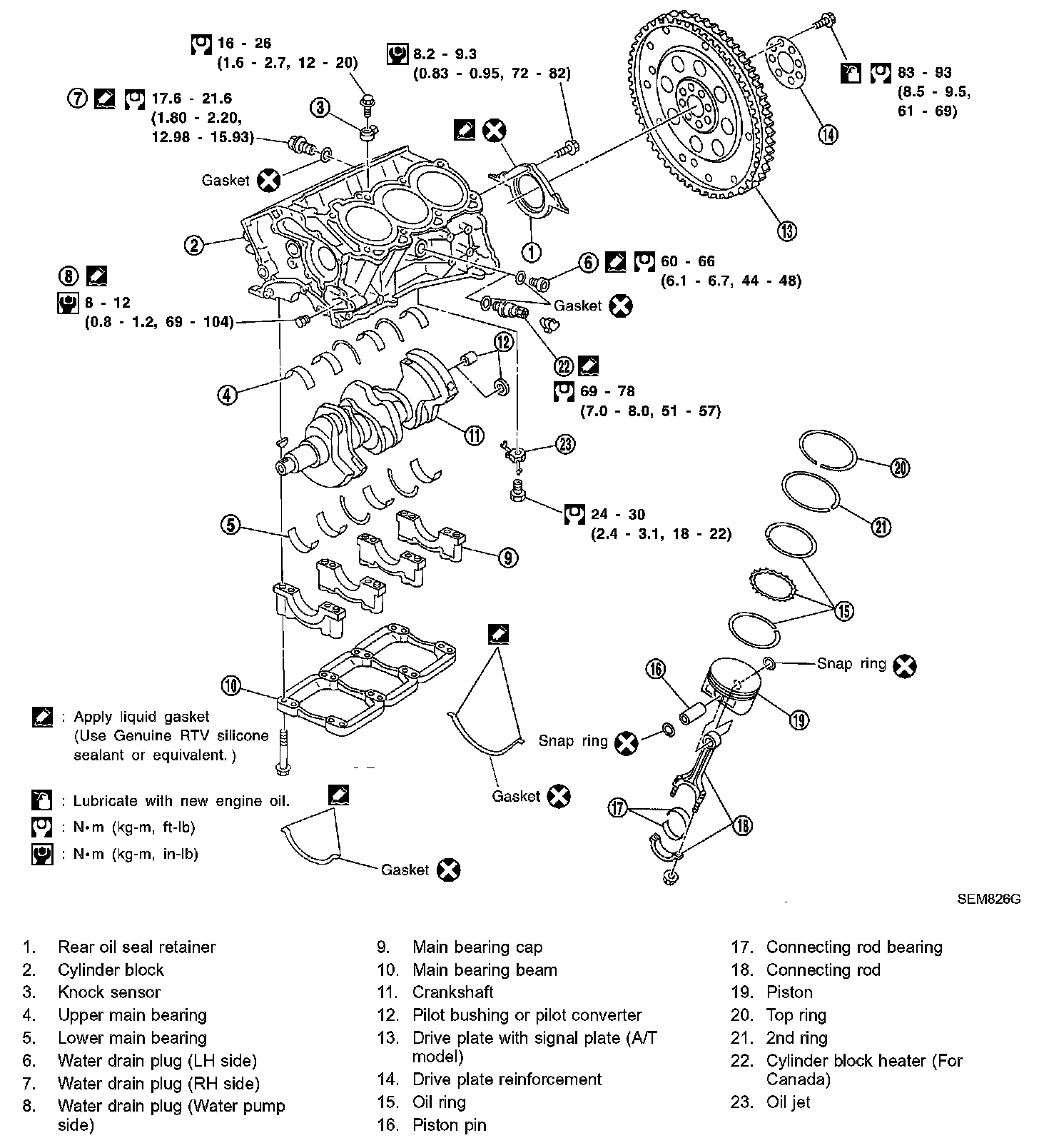

Cylinder Block

Cylinder Block

Cylinder Block:

Cylinder Block:

Tightening Sequence
Tighten all bolts to 32 to 38 Nm (3.3 to 3.9 kg-m, 24 to 28 ft. lbs.).
Turn all bolts 90 to 95 degrees clockwise with angle wrench.


Connecting rod cap bolts
Step 1 19 - 21 Nm
Step 2 90 - 95° clockwise
