Cylinder Head

Cylinder Head Assembly:

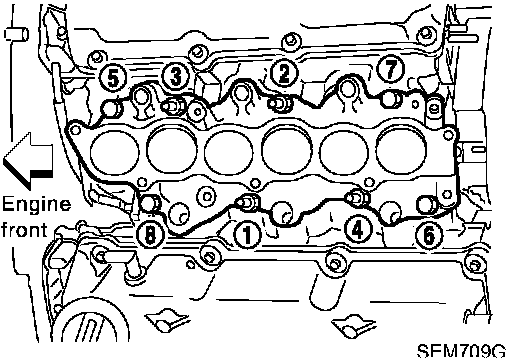

Intake Manifold / Torque Sequence:

Intake manifold
Step 1 4.9 - 9.8 Nm
Step 2 26.5 - 31.4 Nm

Exhaust manifold 0 - 32 Nm

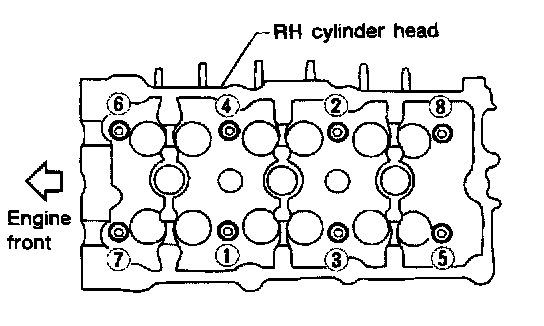

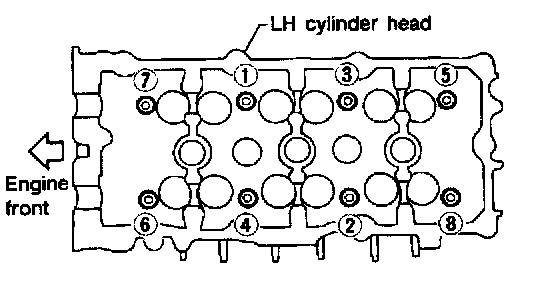

Cylinder head bolts
Step 1 98 Nm
Step 2 Loosen all bolts
Step 3 34.3 - 44.1 Nm
Step 4 90 - 95°
Step 5 90 - 95°
