Engine Assembly and Outer Parts
Engine Assembly and Outer Parts
OUTER COMPONENT PARTS

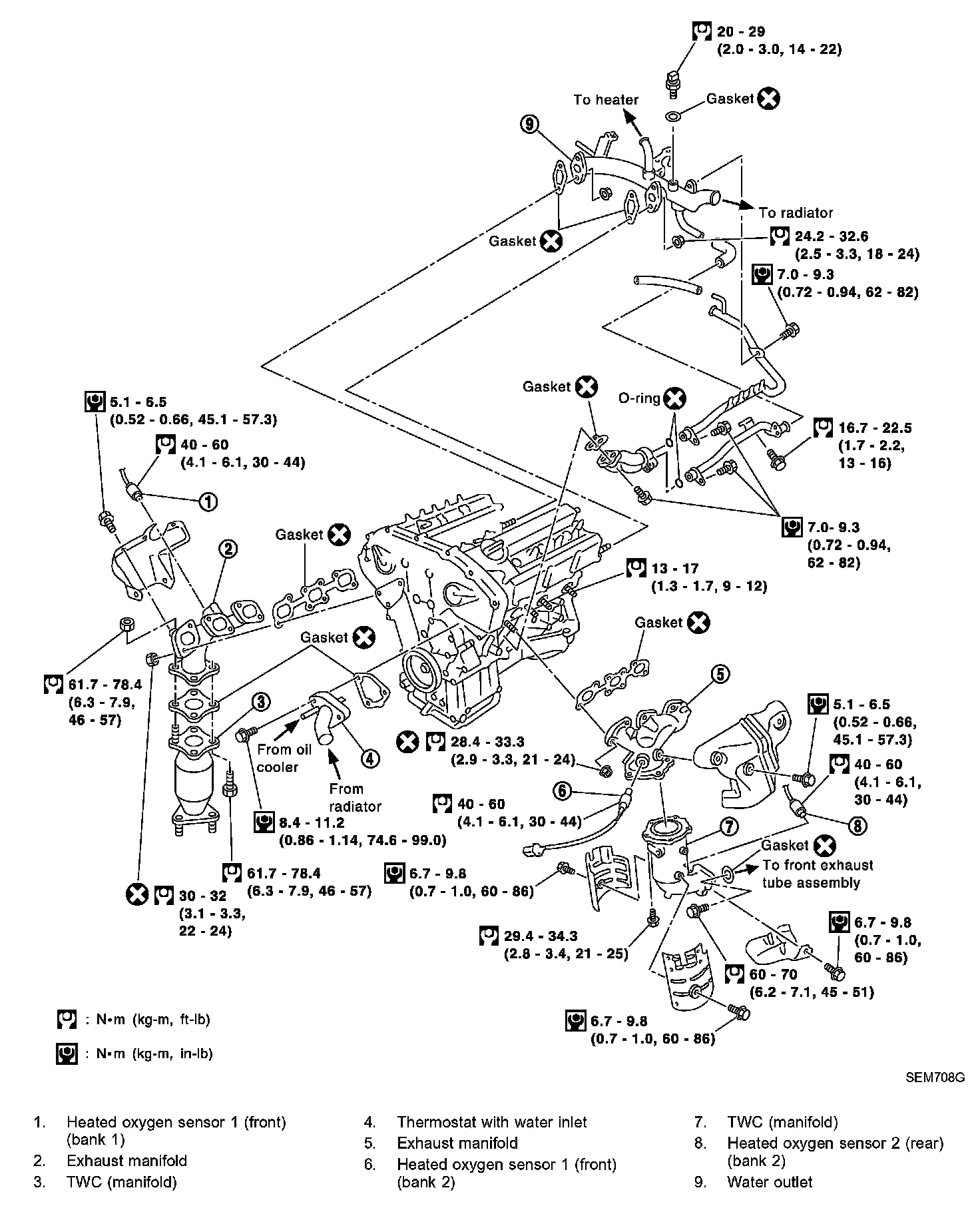

Engine Outer Components (1 Of 2):

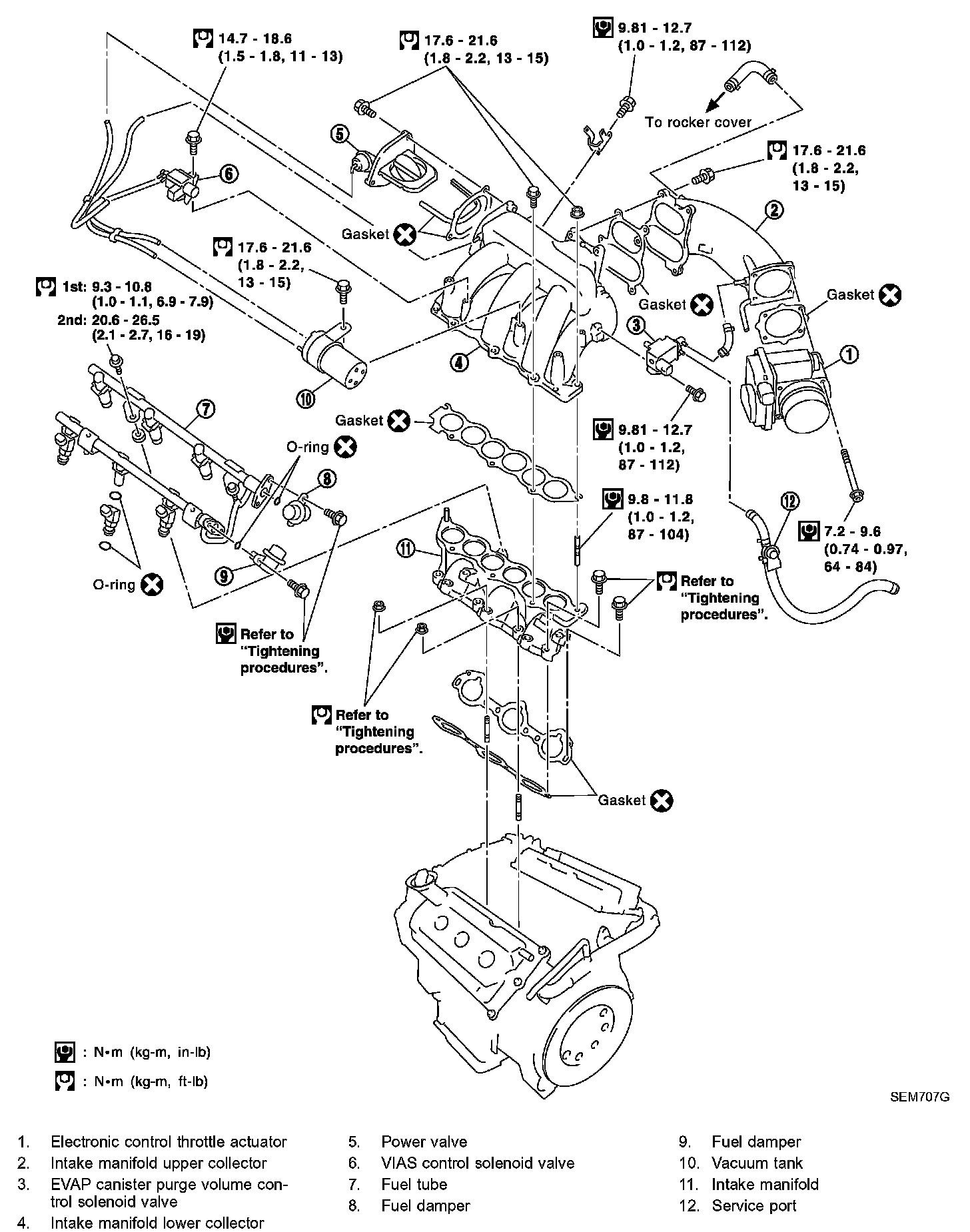

Engine Outer Components (2 Of 2):
