Navigation Module: Service and Repair

Removal and Installation of AV and NAVI Control Unit
1. Refer to "Precautions for AV and NAVI Control Unit Replacement". and Take a note of necessary items.
2. Remove the trunk compartment trim. "TRUNK ROOM TRIM & TRUNK LID FINISHER" .

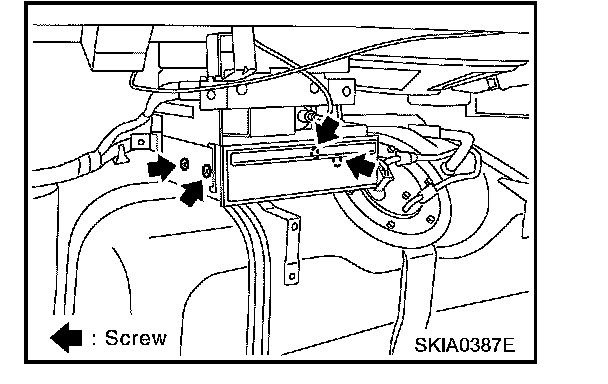

3. Remove the screws and remove the AV and NAVI control unit
