Oil Level

OIL LEVEL

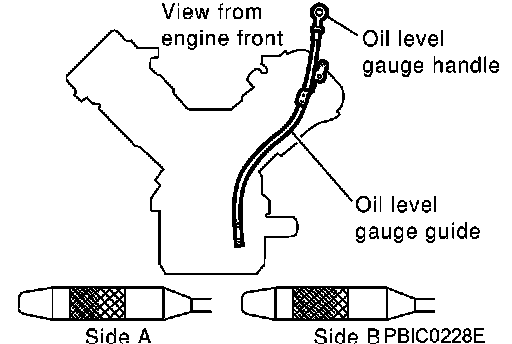

1. Insert gauge so circle of oil level gauge handle faces engine front side.
2. Amount of oil on oil level gauge may look different from each other as on side A or B (both sides with cross hatch) because of its inclination. Side A is upper face and side B is lower face. Check oil amount as on side A, which has less oil amount on oil level gauge.

NOTE: Before starting the engine, check the oil level. If the engine is already started, stop it and allow 15 minutes before checking.






Check that the oil level is within the range shown in the figure.

If it is out of range, adjust it.
