CAN Communication Circuit Check

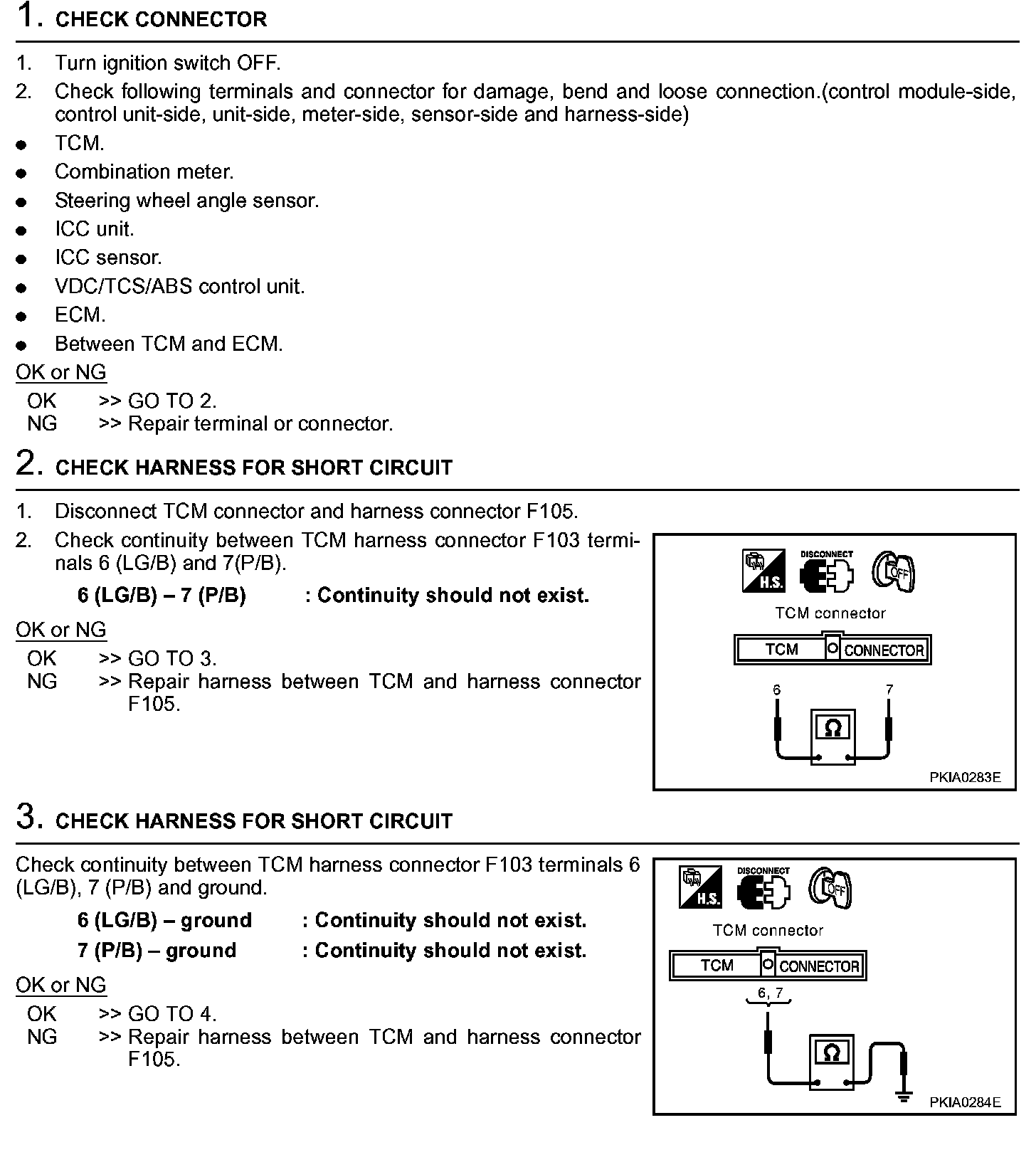

CAN Communication Circuit Check Step 1 - 3:

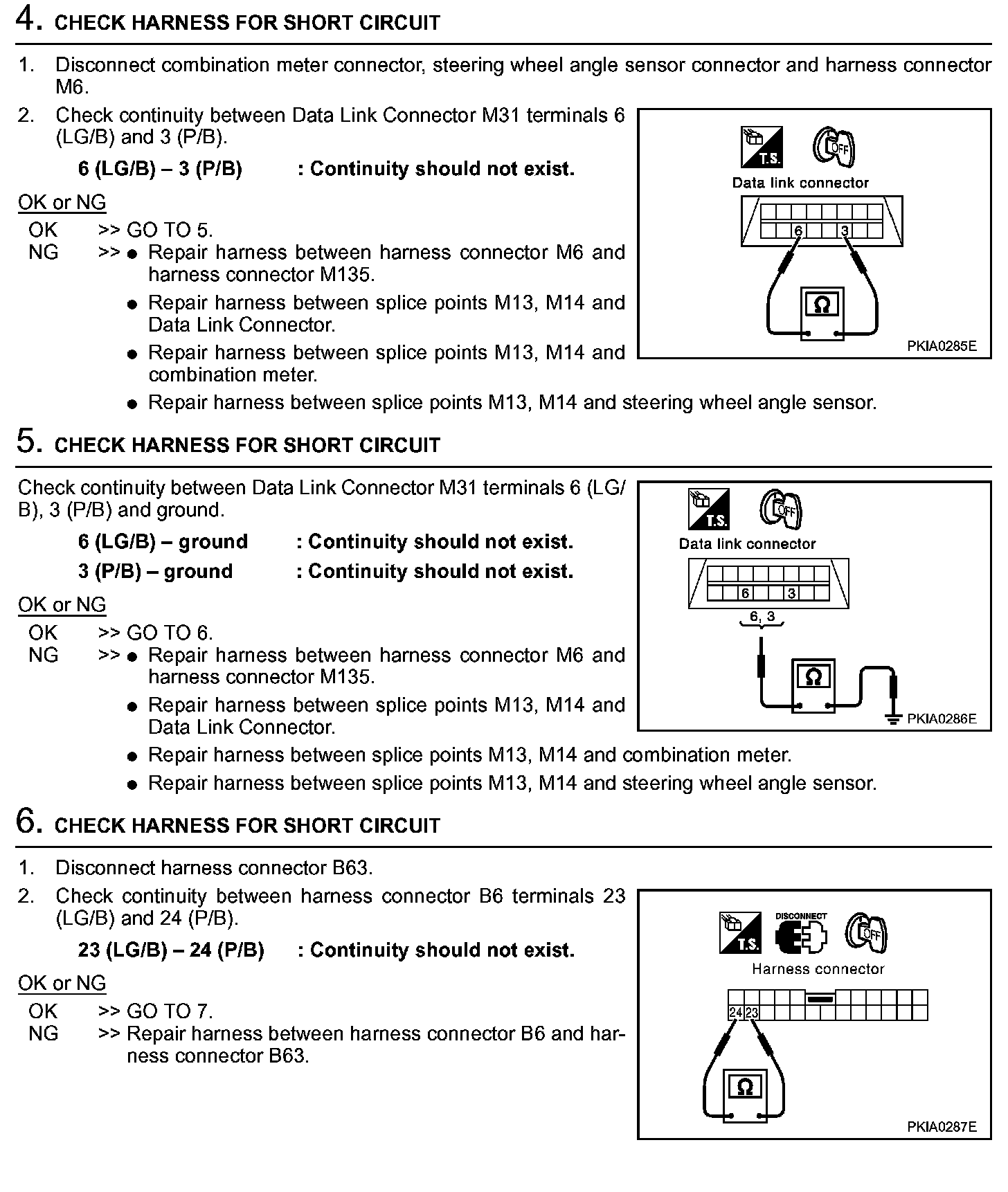

CAN Communication Circuit Check Step 4 - 6:

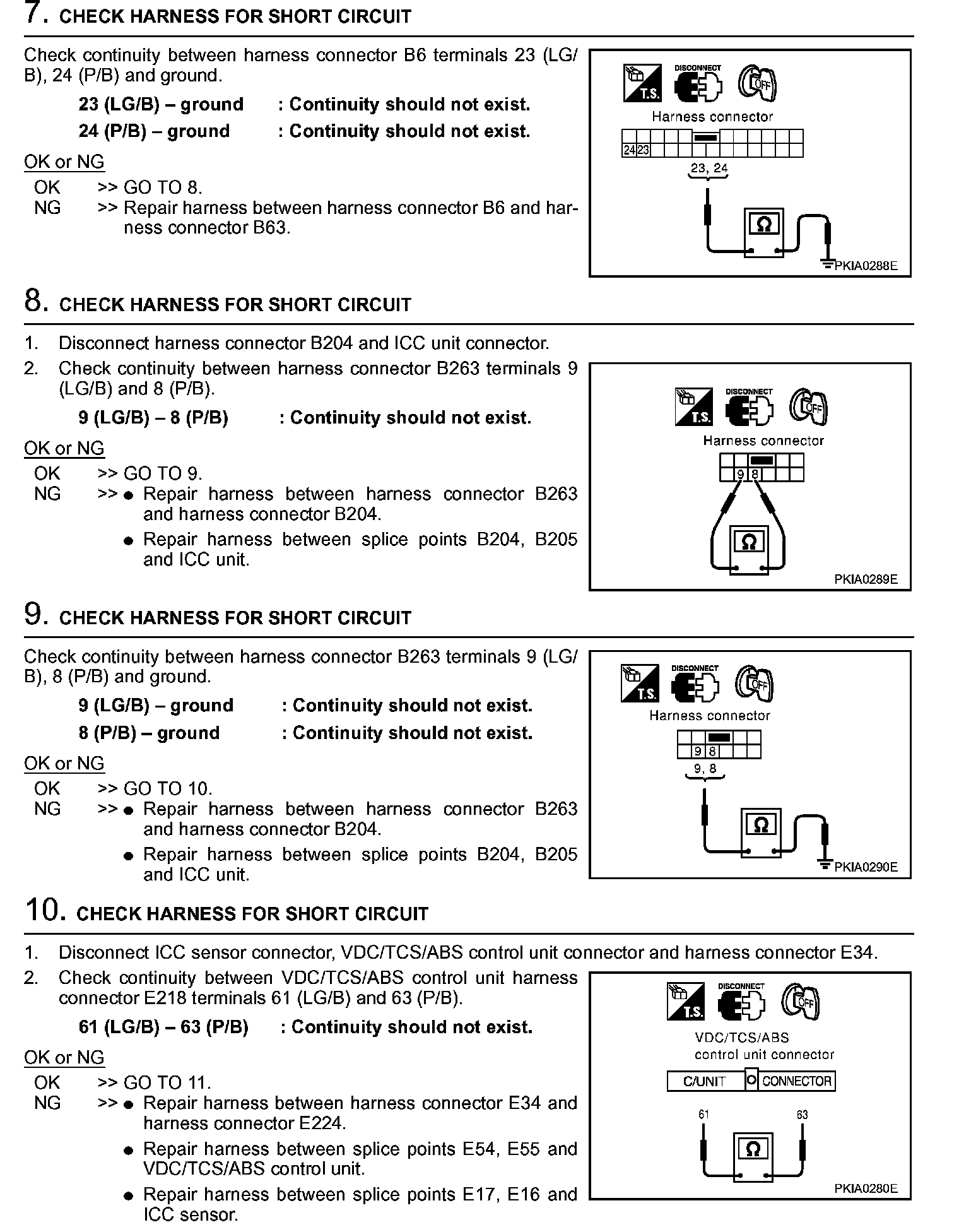

CAN Communication Circuit Check Step 7 - 10:

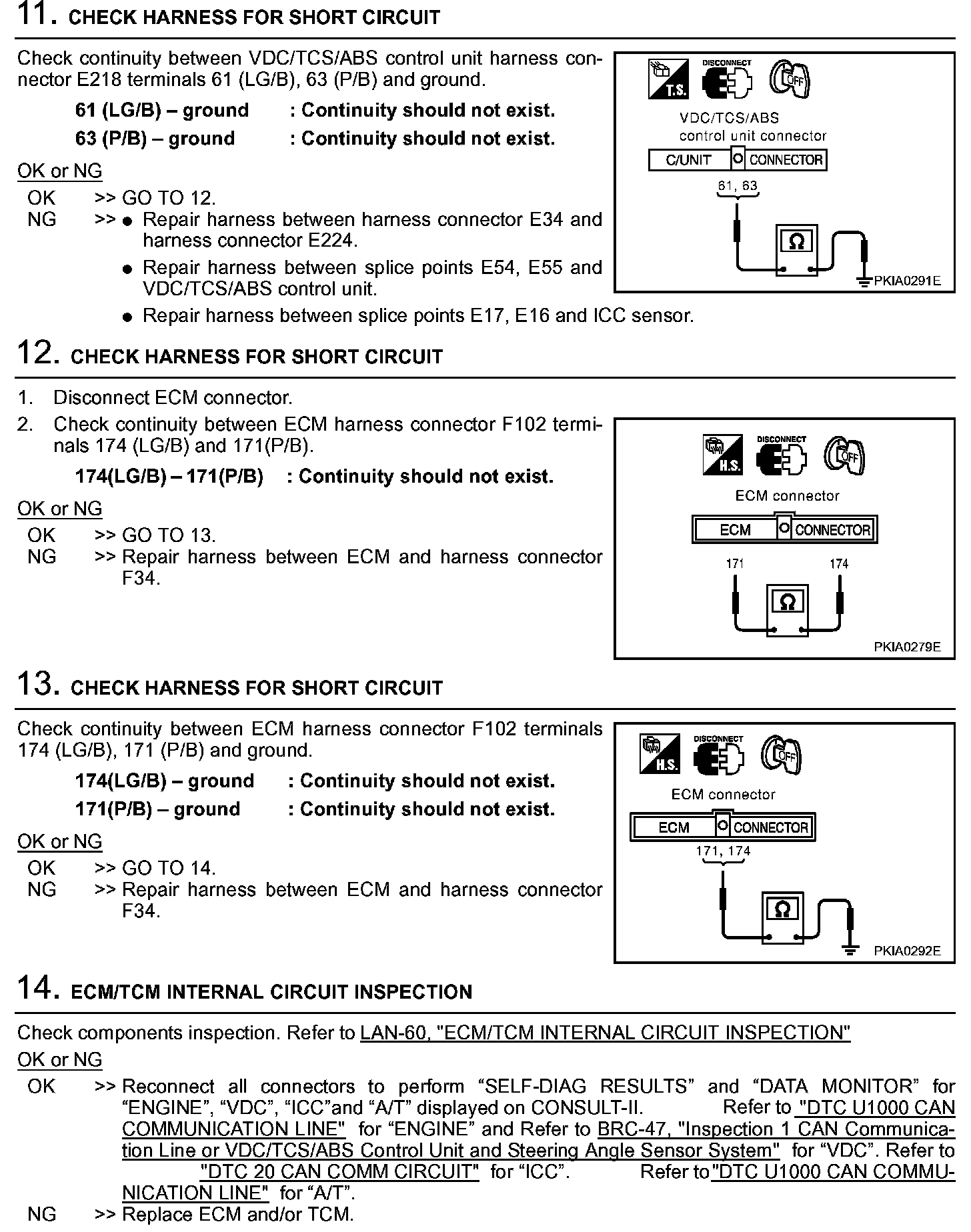

CAN Communication Circuit Check Step 11 - 14:
