Circuit Check Between ICC Sensor and ICC Unit
Circuit Check Between ICC Sensor and ICC Unit

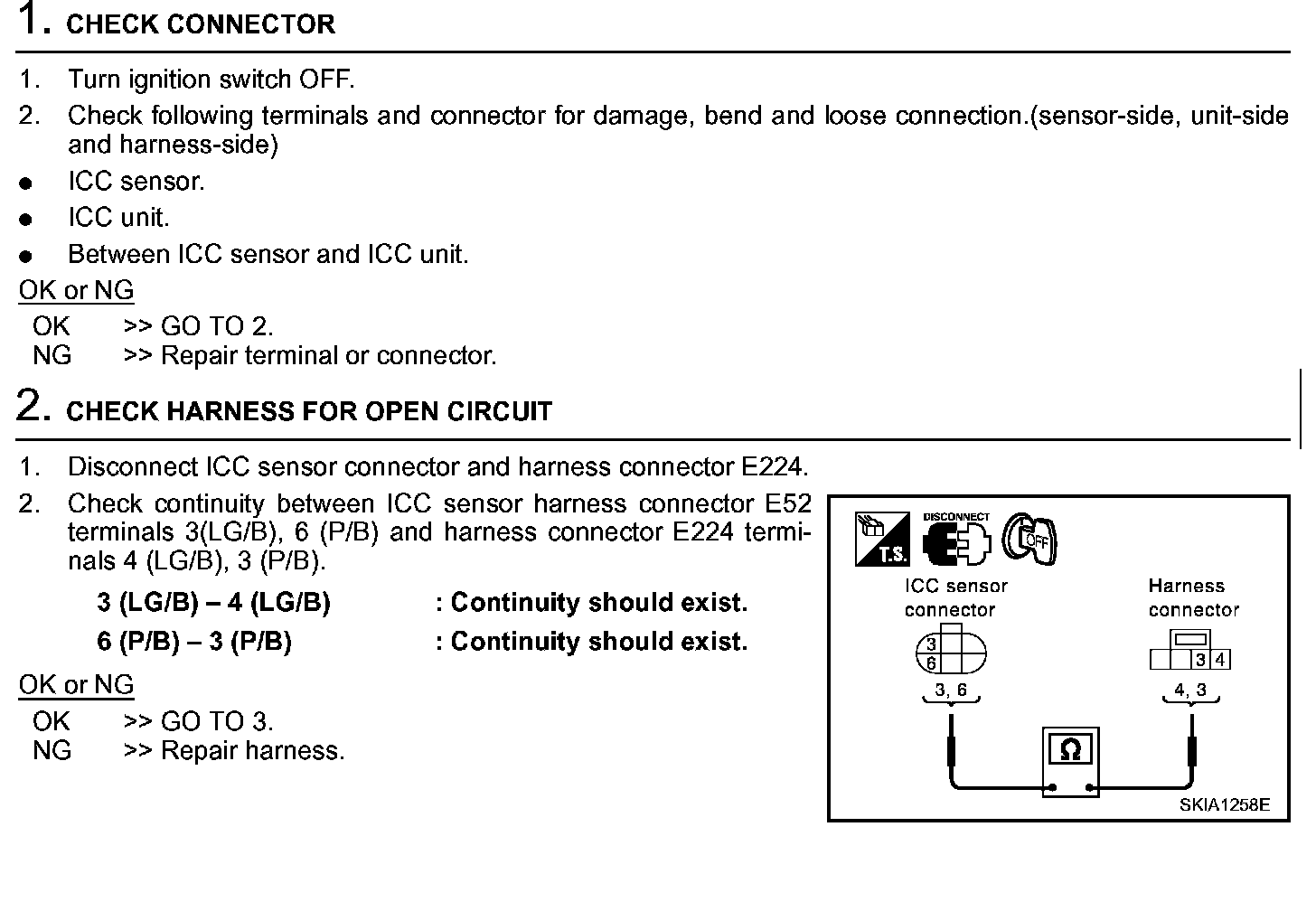

Circuit Check Between ICC Sensor And ICC Unit Step 1 - 2:

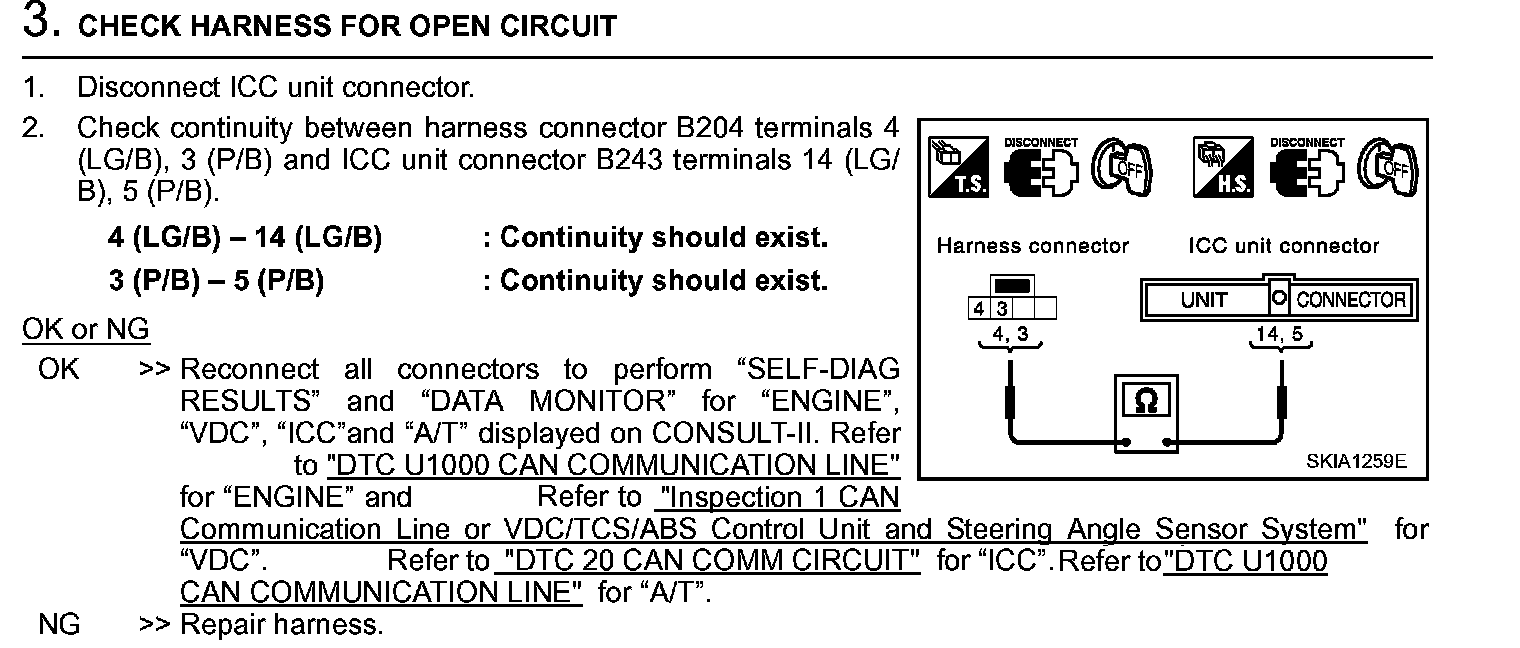

Circuit Check Between ICC Sensor And ICC Unit Step 3:
