Circuit Check Between ICC Unit and Steering Wheel Angle Sensor

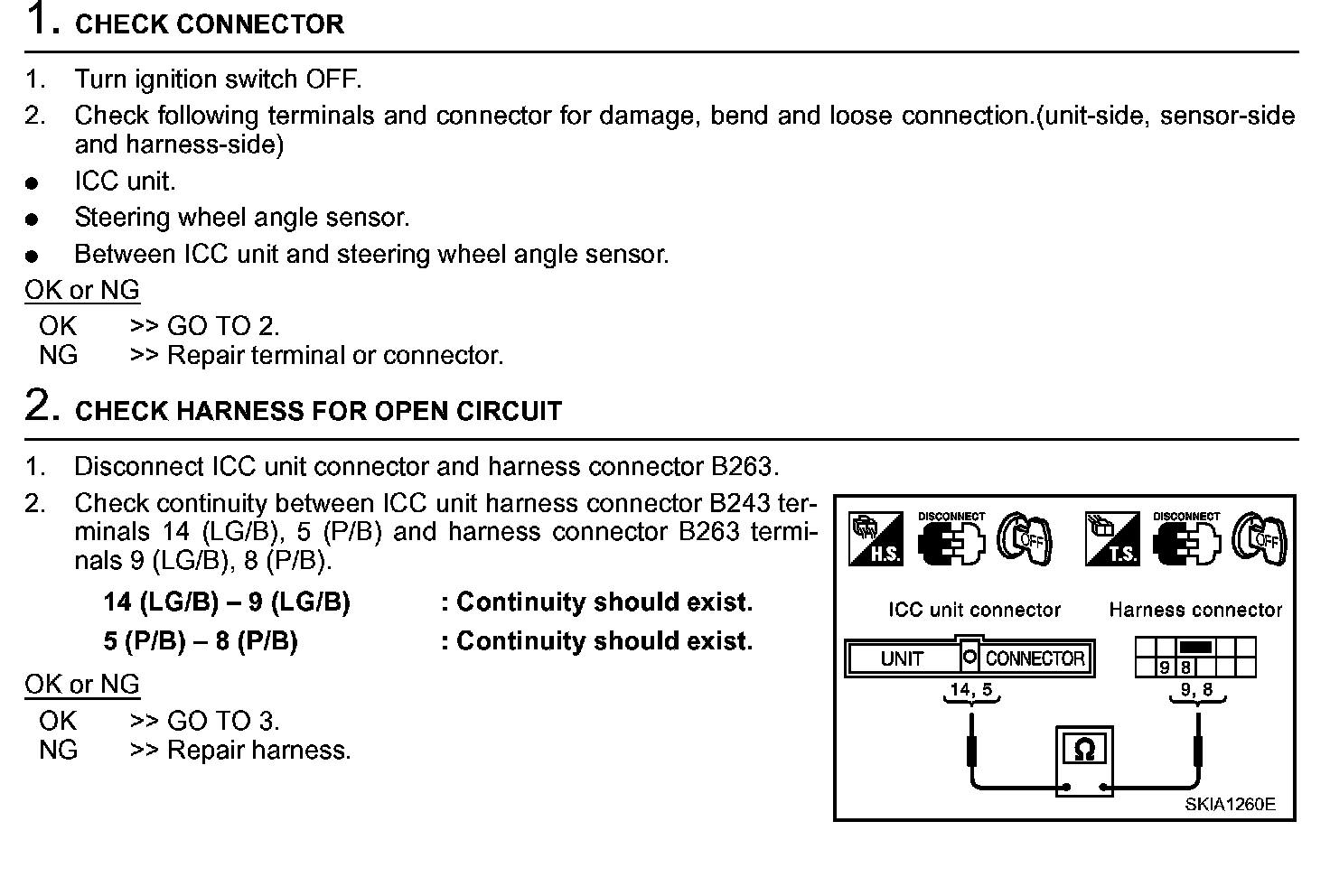

Circuit Check Between ICC Unit And Steering Wheel Angle Sensor Step 1 - 2:

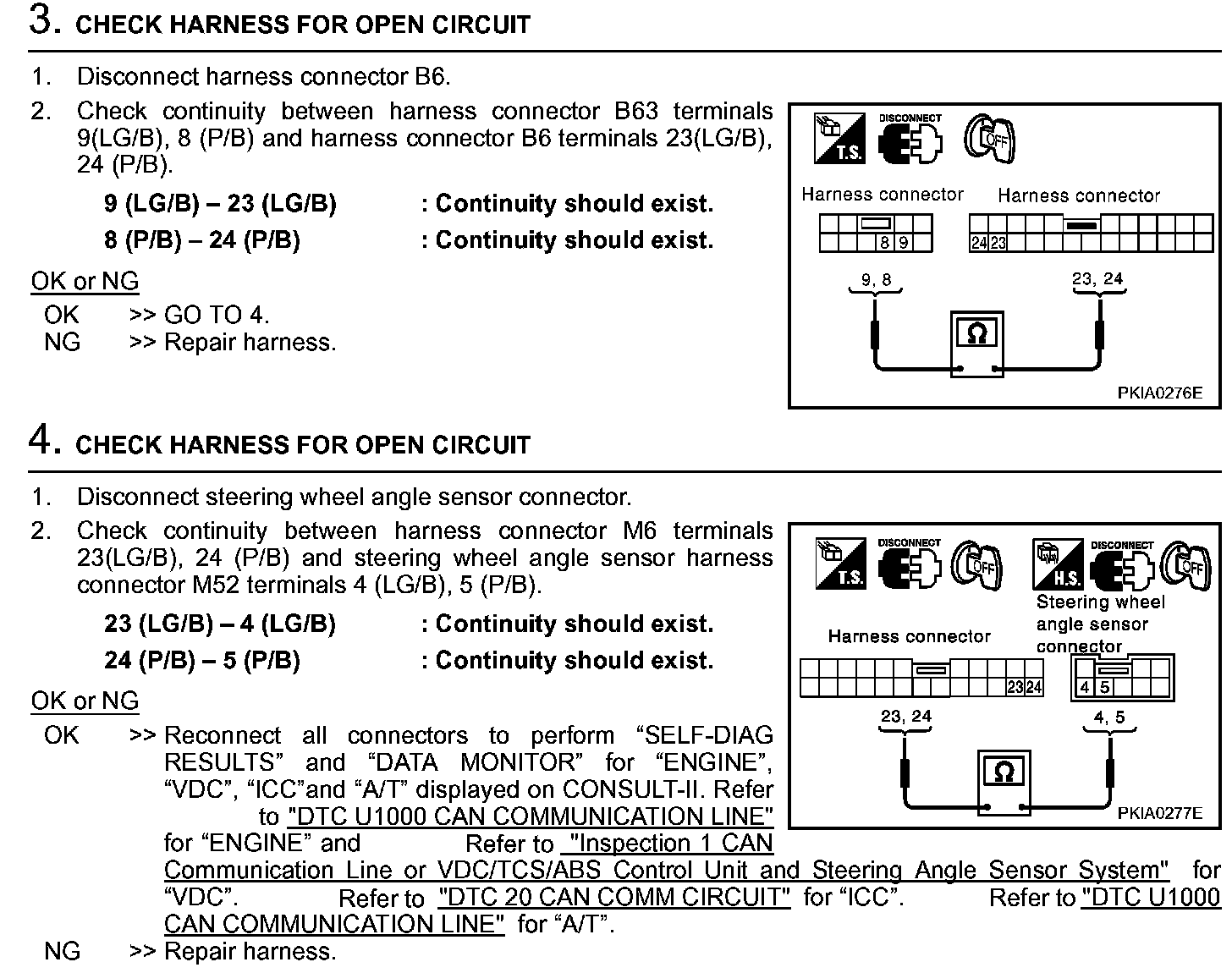

Circuit Check Between ICC Unit And Steering Wheel Angle Sensor Step 3 - 4:
