Circuit Check Steering Wheel Angle Sensor and Combination Meter

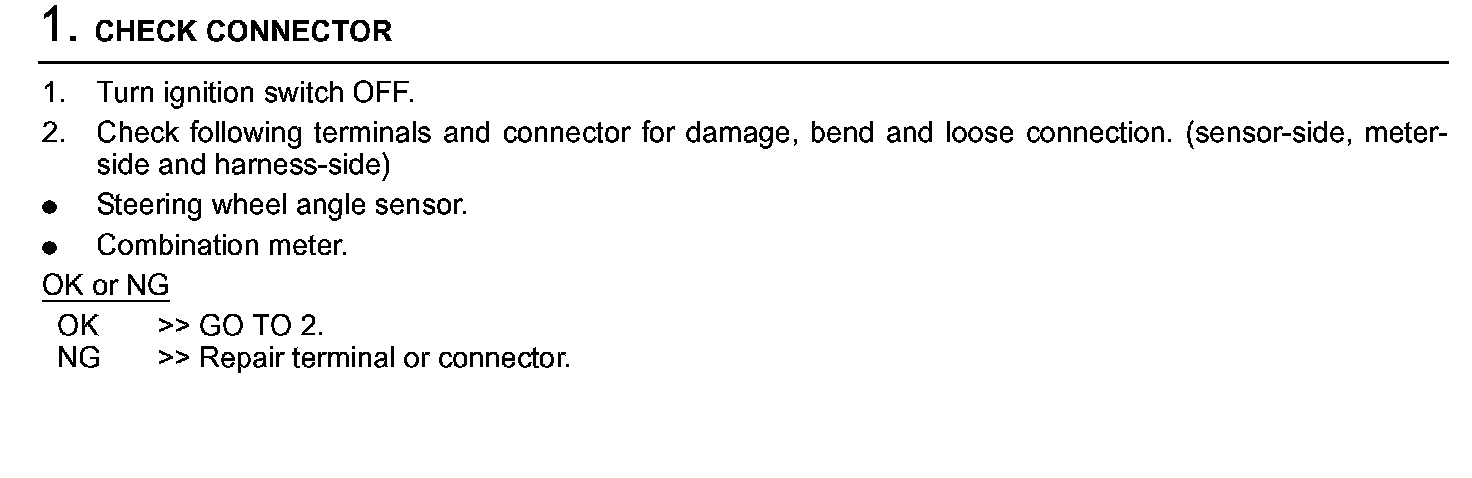

Circuit Check Between Steering Wheel Angle Sensor And Combination Meter Step 1:

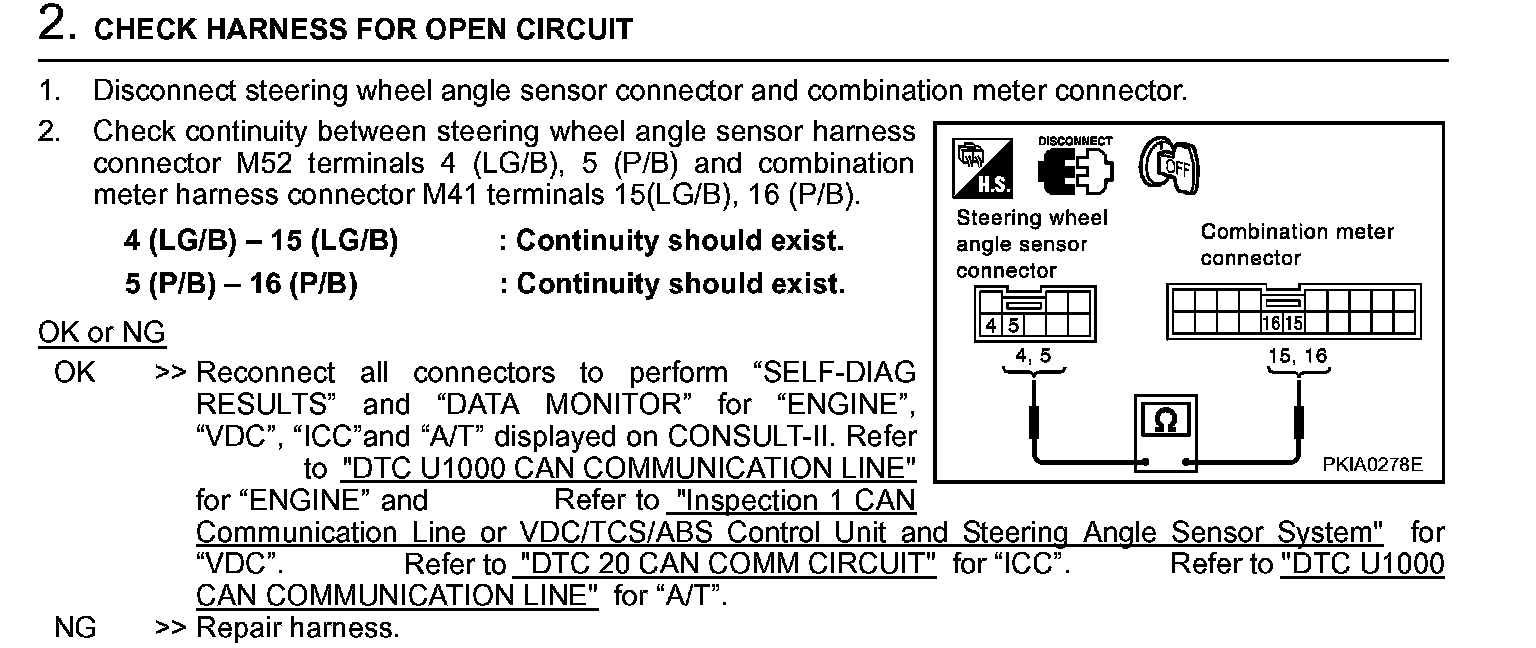

Circuit Check Between Steering Wheel Angle Sensor And Combination Meter Step 2:
