Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2002
>>
Q45 V8-4.5L (VK45DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
CAN System For ICC Models
>>
Circuit Checks
>>
Circuit Check VDC/TCS/ABS Control Unit and ICC Sensor
Circuit Check VDC/TCS/ABS Control Unit and ICC Sensor

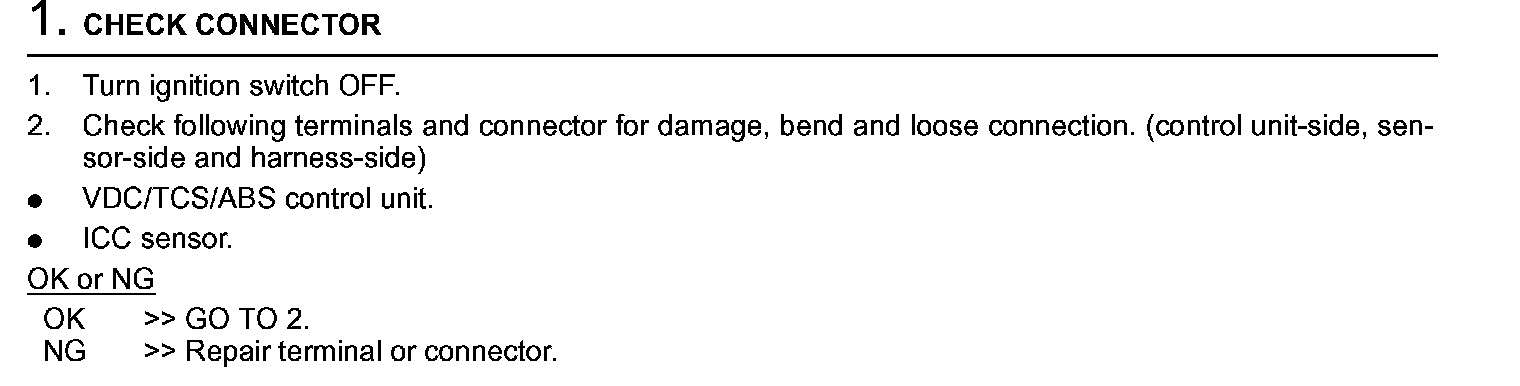

Circuit Check VDC/TCS/ABS Control Unit And ICC Sensor Step 1:

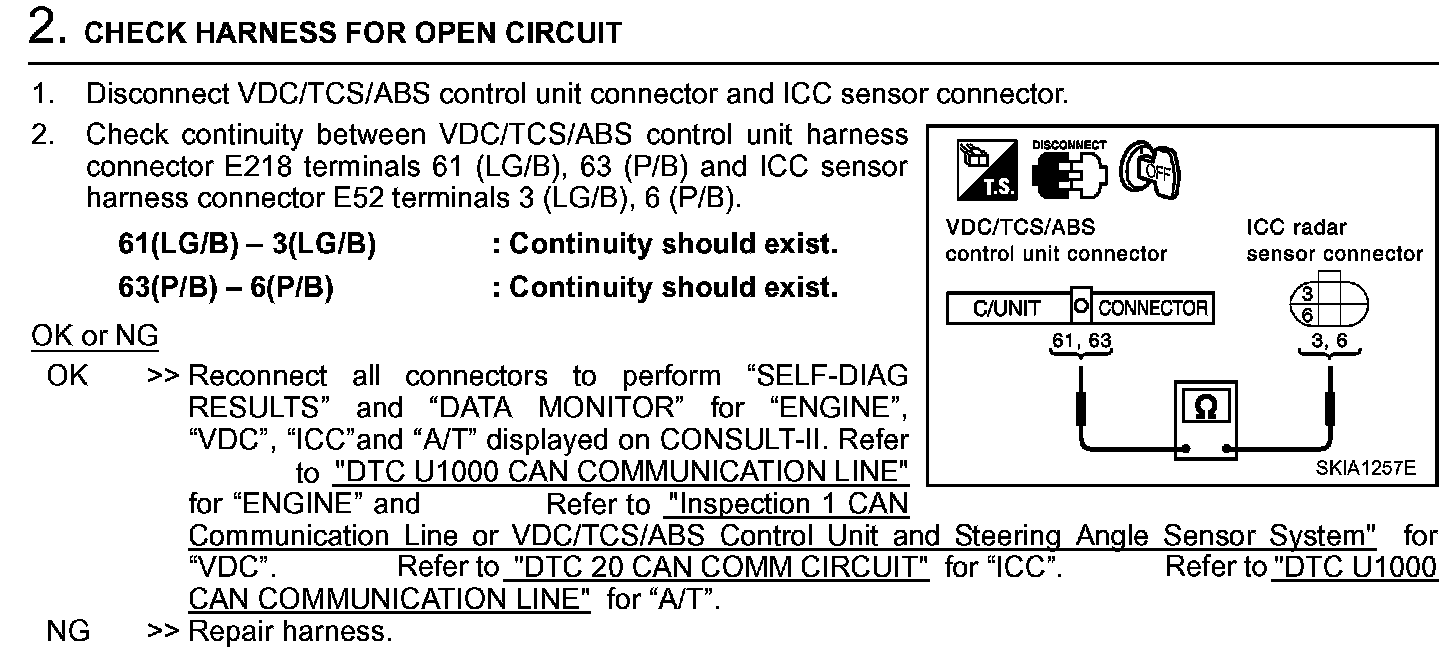

Step 2:
