ECM/TCM Internal Circuit Inspection

ECM/TCM Internal Circuit Inspection:

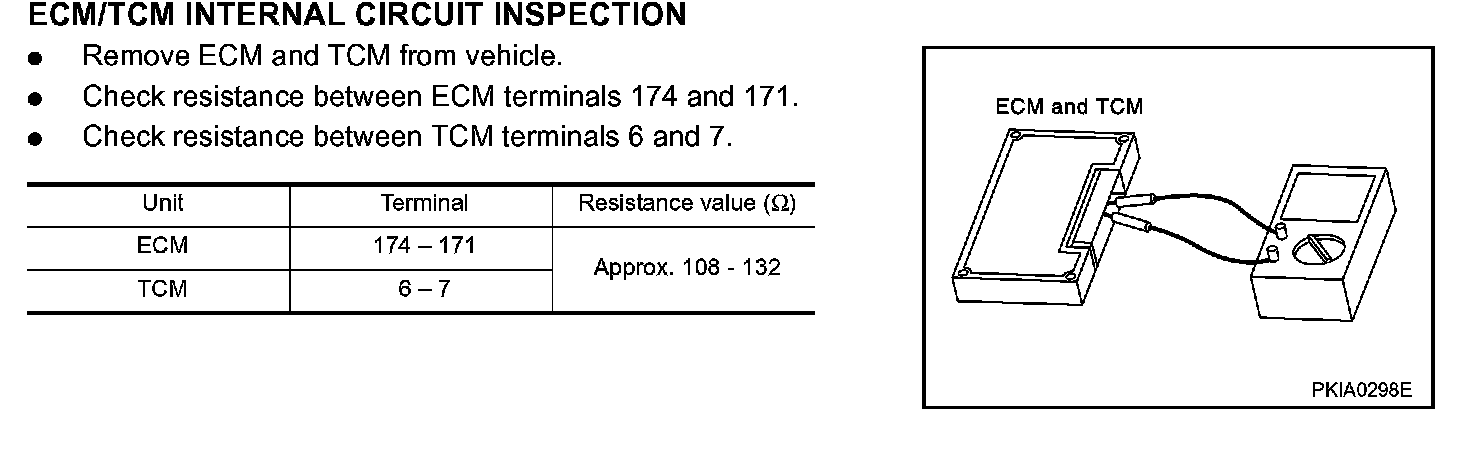

ECM/TCM INTERNAL CIRCUIT INSPECTION
- Remove ECM and TCM from vehicle.
- Check resistance between ECM terminals 174 and 171.
- Check resistance between TCM terminals 6 and 7.
