Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2002
>>
Q45 V8-4.5L (VK45DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
CAN System For ICC Models
>>
Circuit Checks
>>
VDC/TCS/ABS Control Unit Circuit Check
VDC/TCS/ABS Control Unit Circuit Check

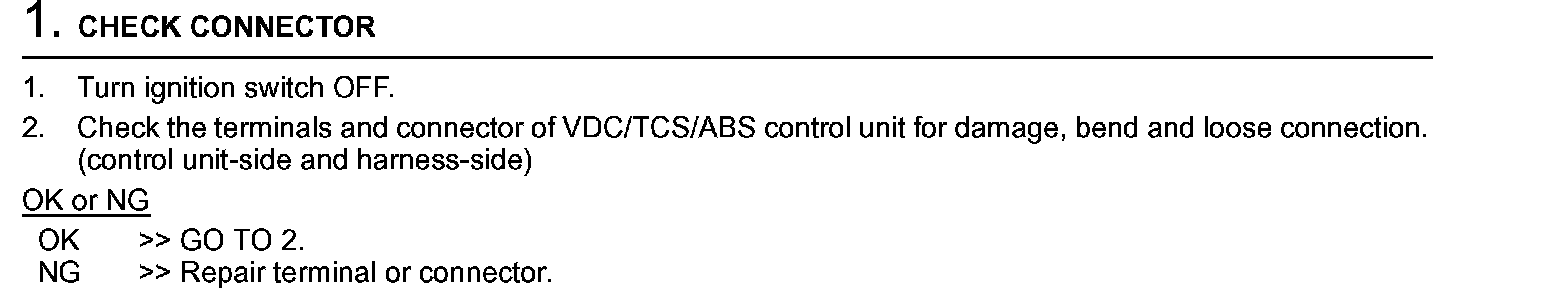

VDC/TCS/ABS Control Unit Circuit Check Step 1:

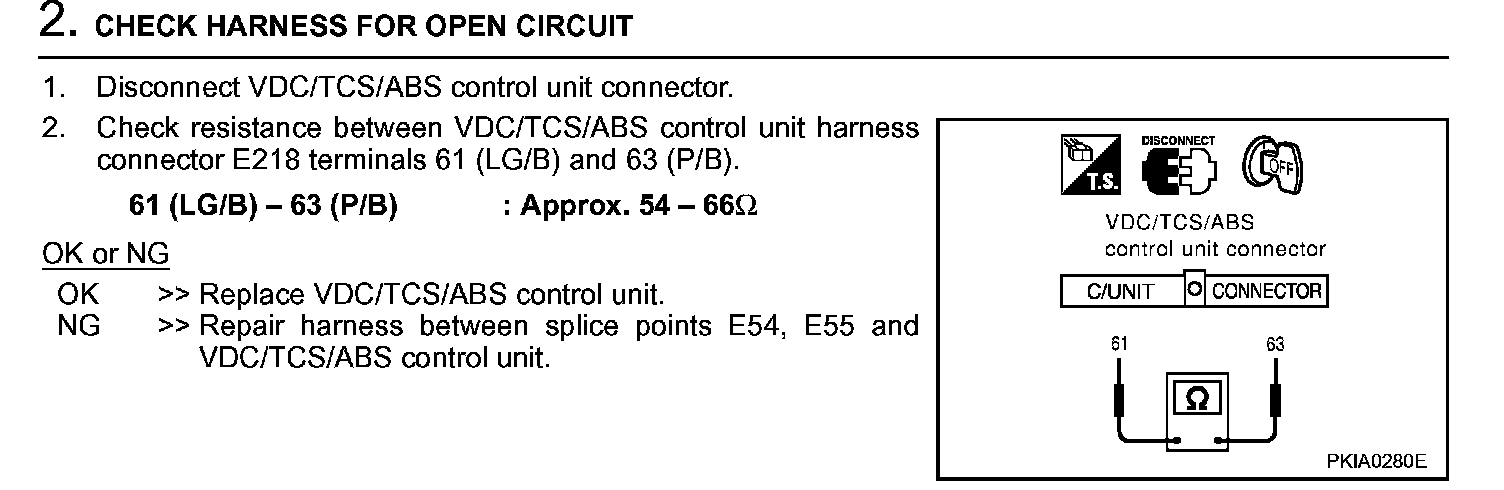

VDC/TCS/ABS Control Unit Circuit Check Step 2:
