CAN Communication circuit Check

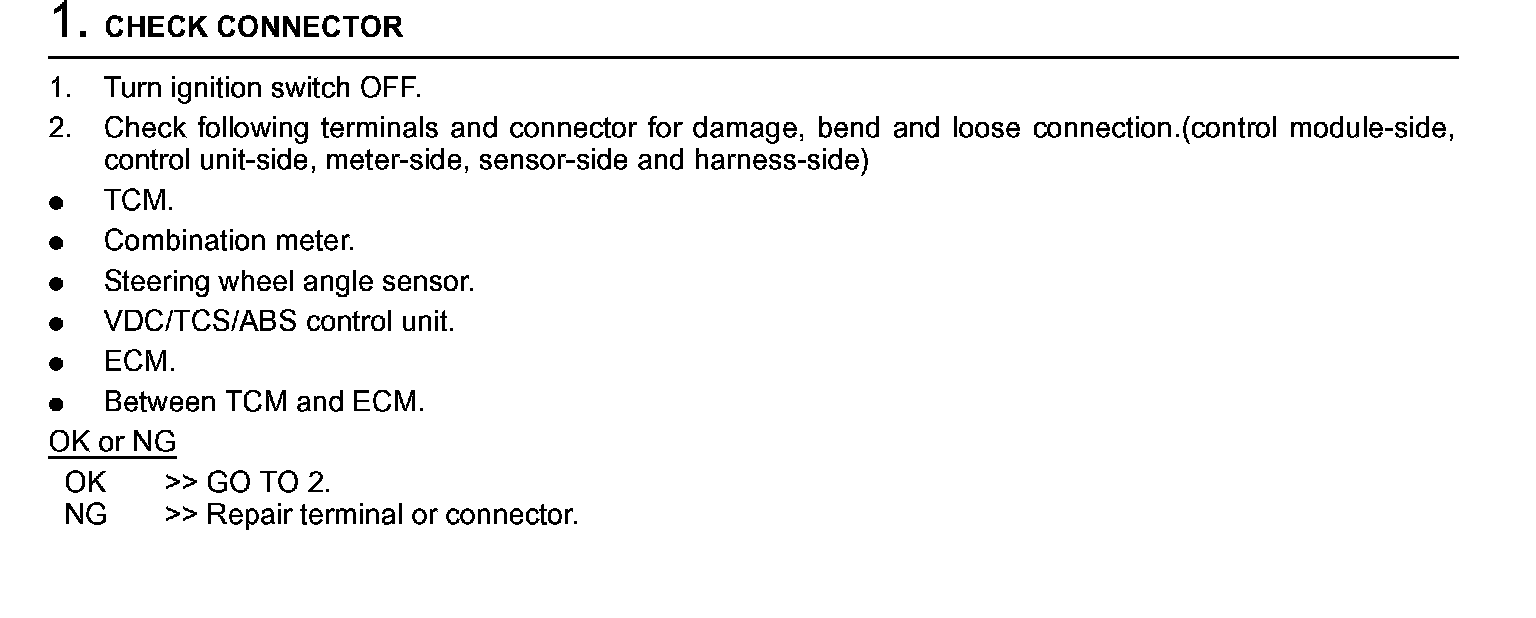

CAN Communication Circuit Check Step 1:

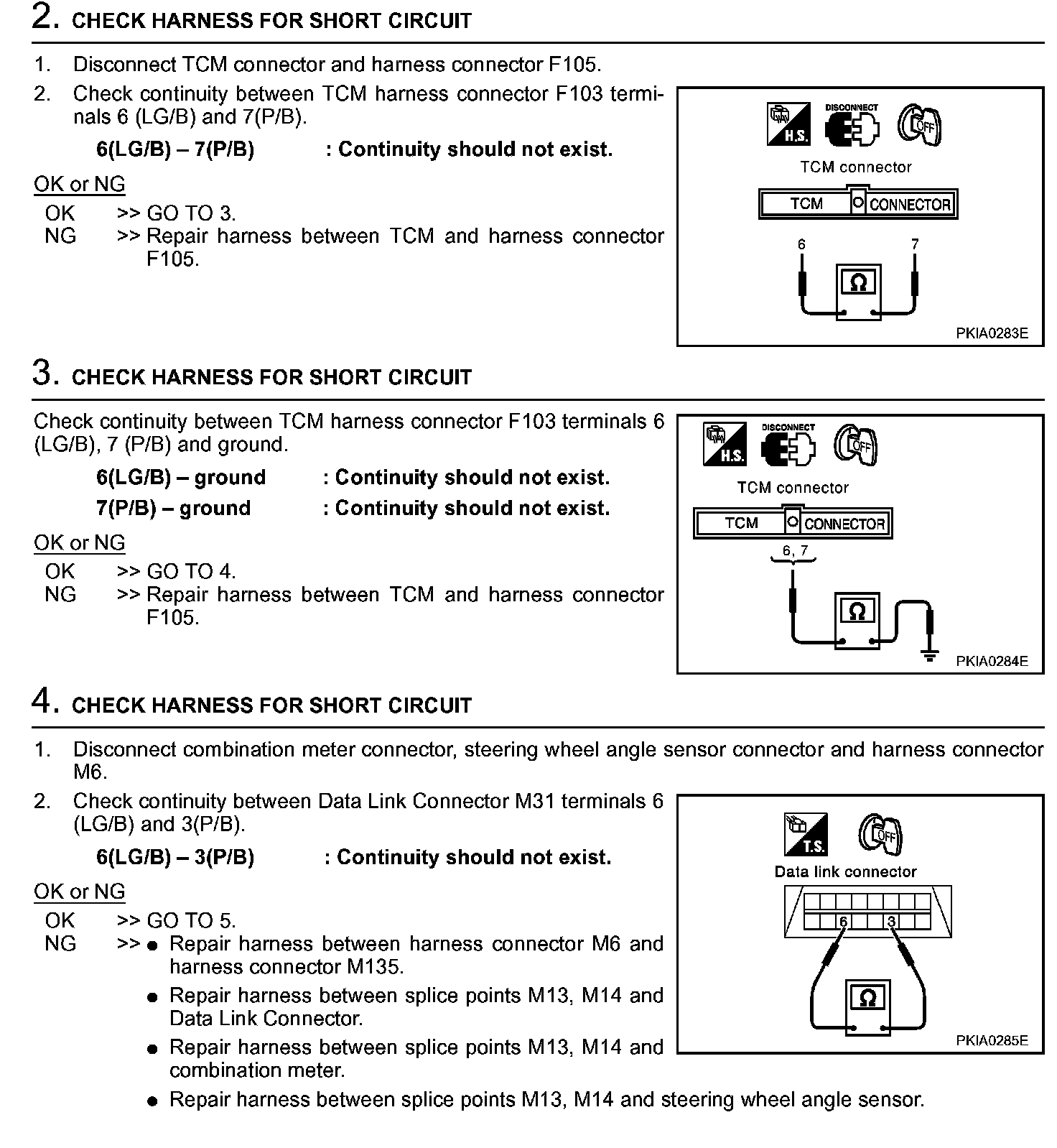

CAN Communication Circuit Check Step 2 - 4:



CAN Communication Circuit Check Step 5 - 7:

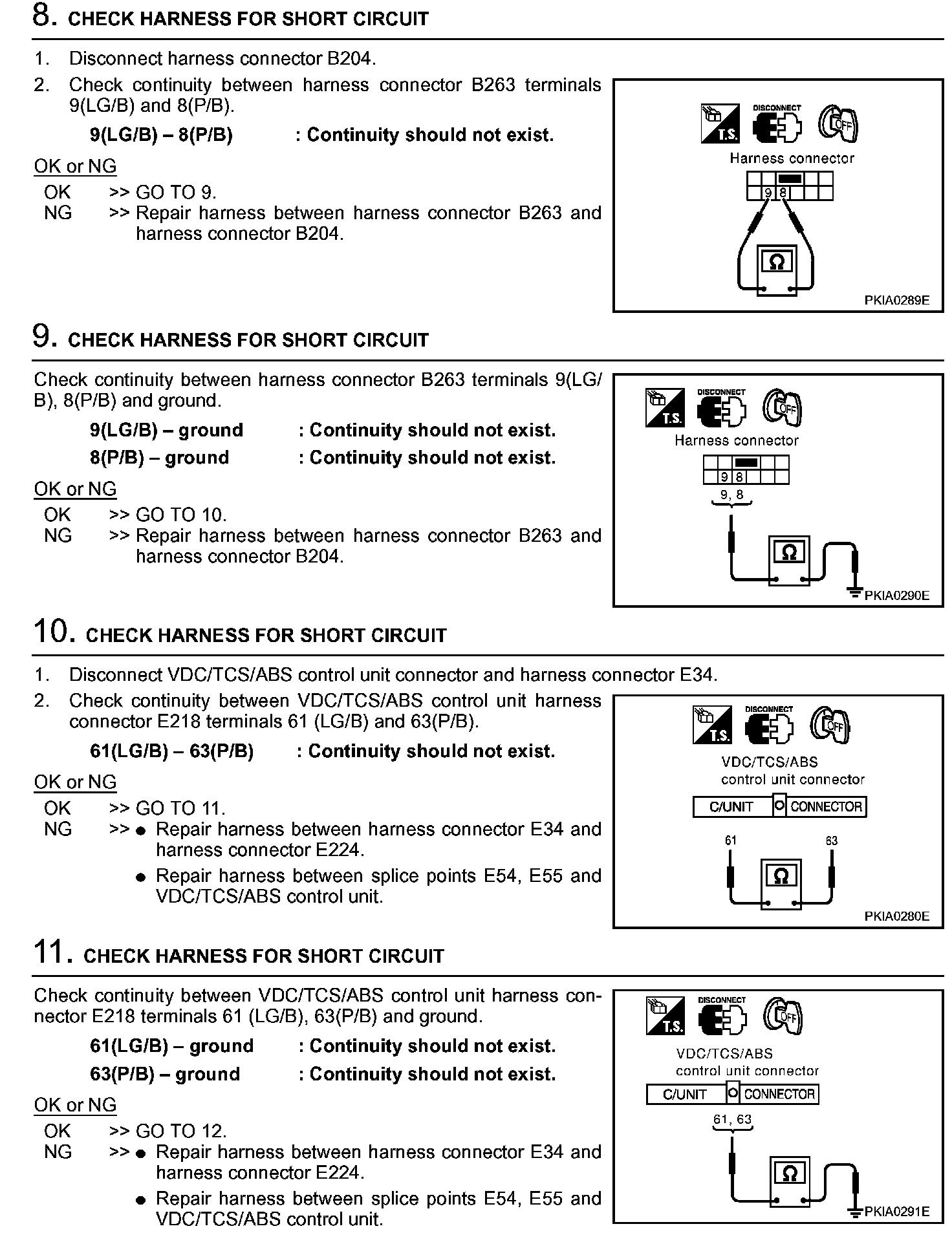

CAN Communication Circuit Check Step 8 - 11:

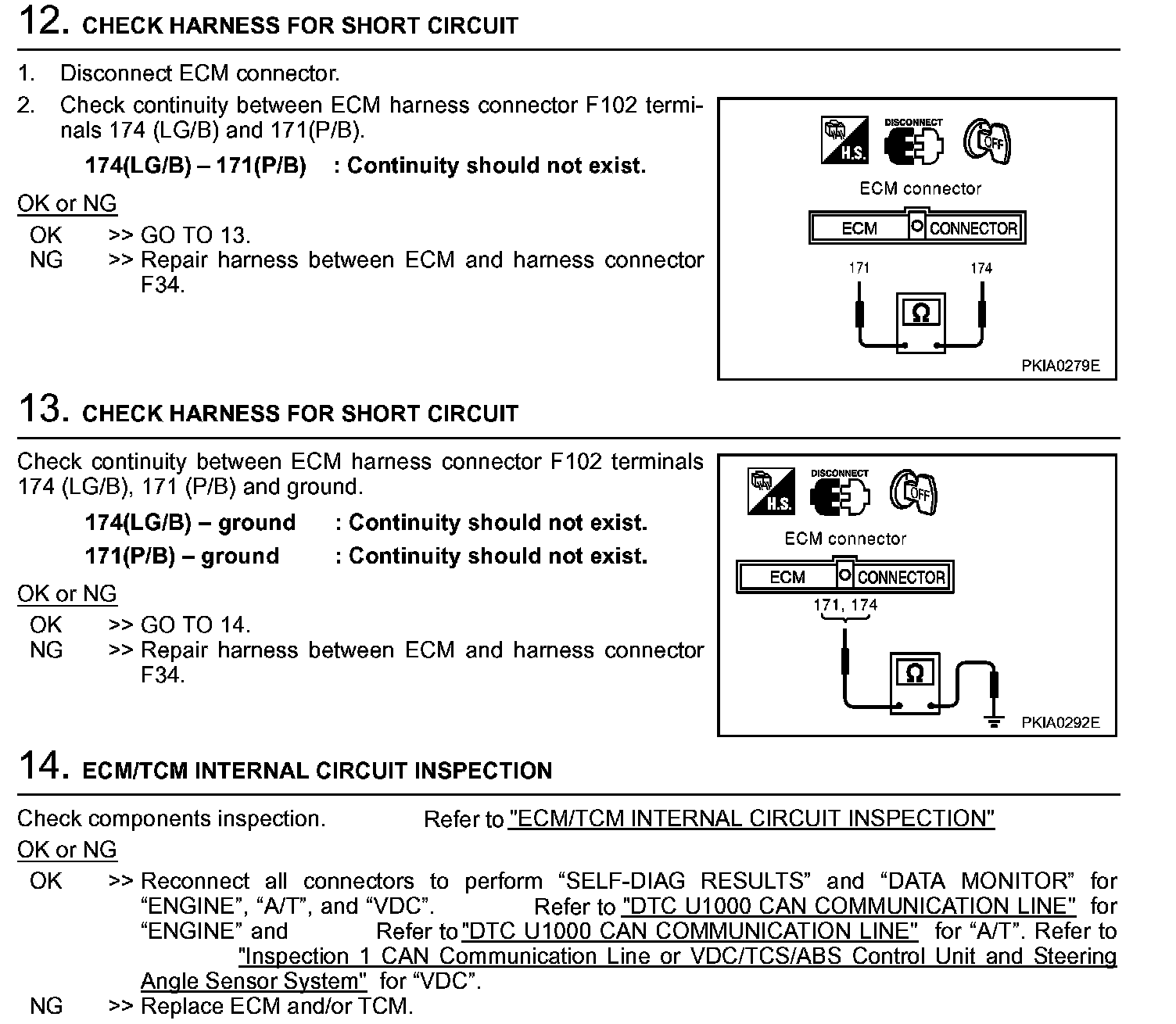

CAN Communication Circuit Check Step 12 - 14:
