VDC/TCS/ABS Control Unit and Steering Wheel Angle Sensor

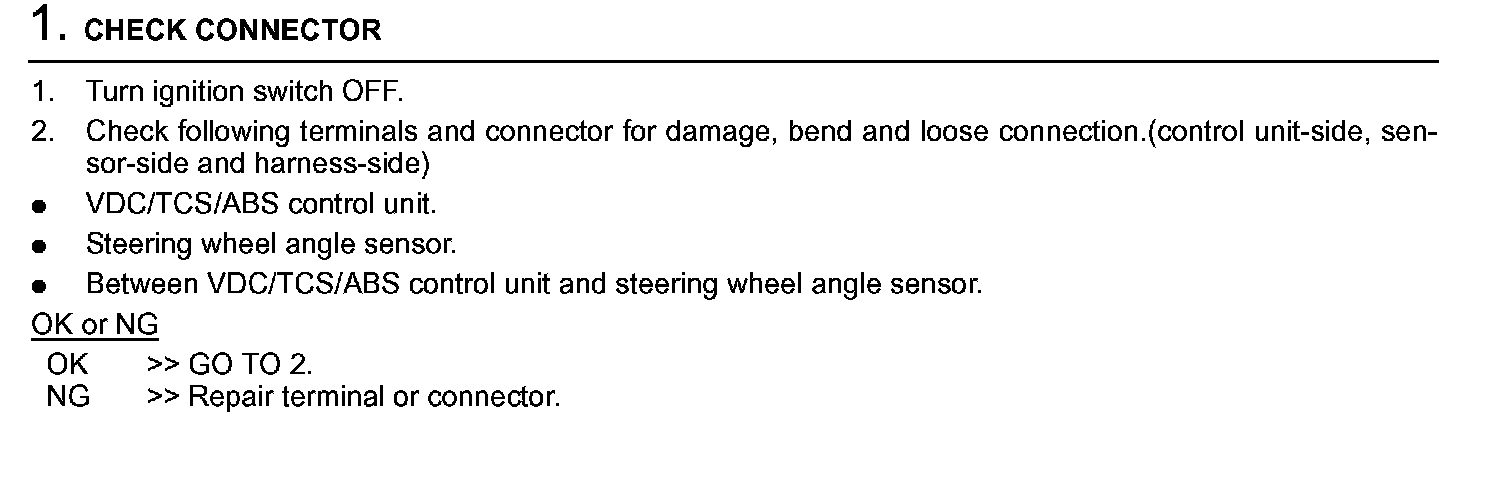

Circuit Check Between VDC/TCS/ABS Control Unit And Steering Wheel Angle Sensor Step 1:

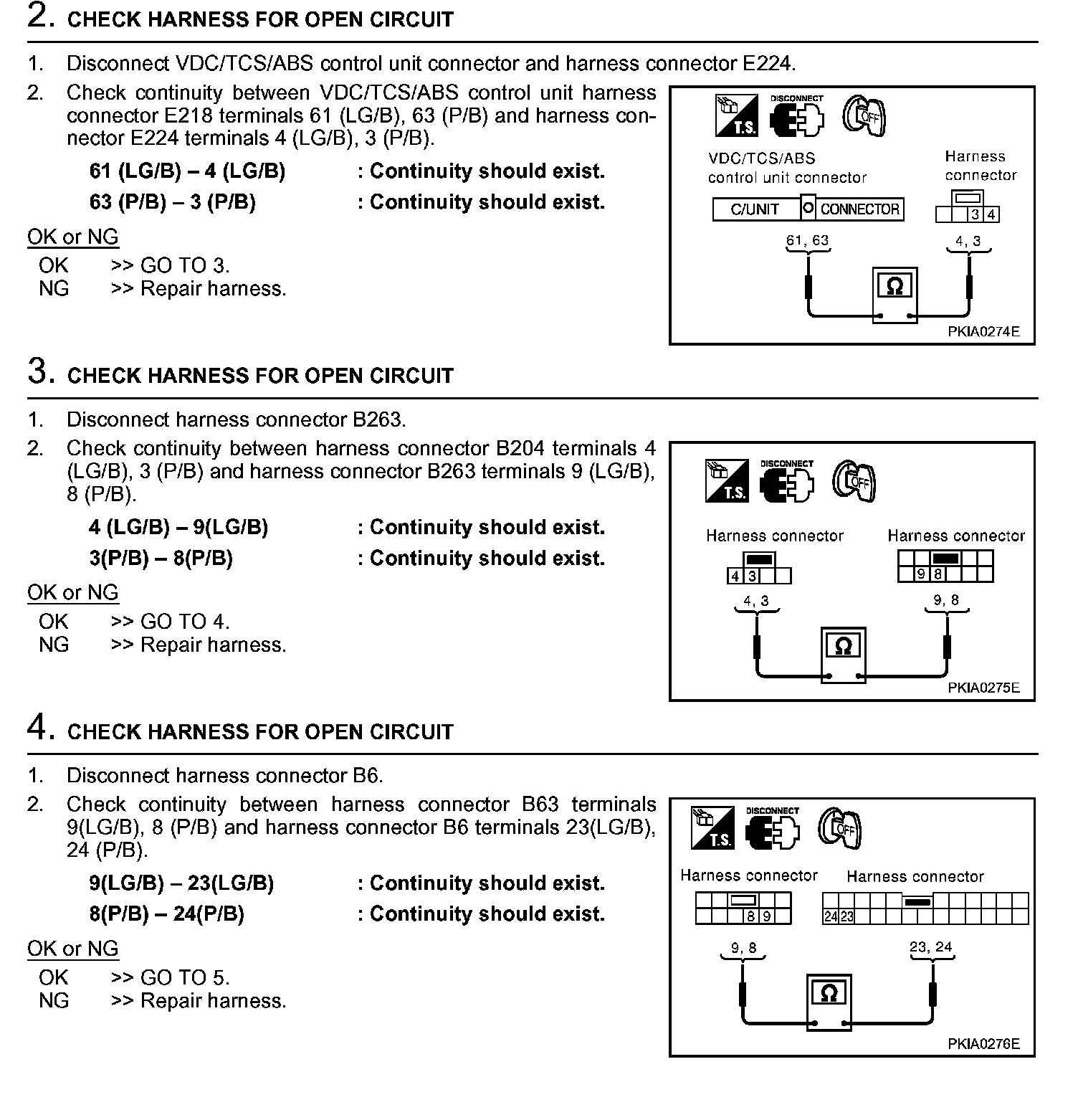

Circuit Check Between VDC/TCS/ABS Control Unit And Steering Wheel Angle Sensor Step 2 - 4:

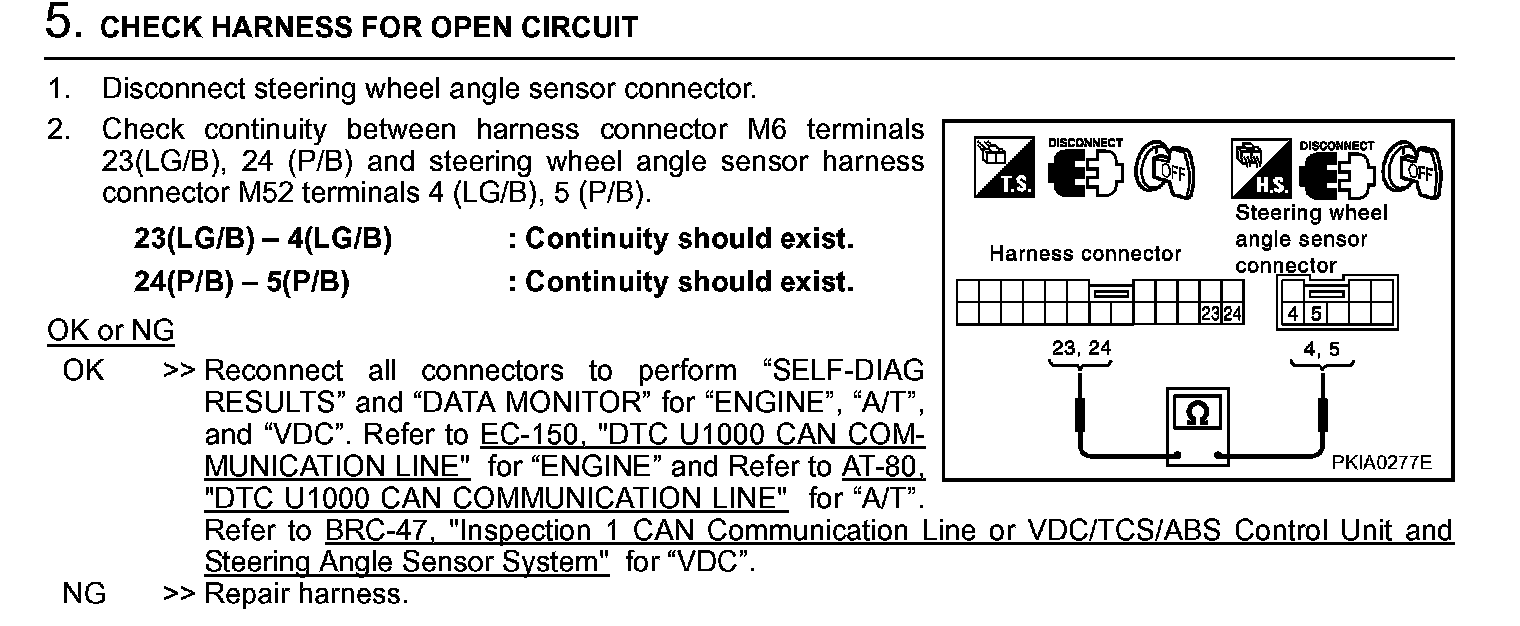

Circuit Check Between VDC/TCS/ABS Control Unit And Steering Wheel Angle Sensor Step 5:
