Work Flow

Work Flow
HOW TO PERFORM TROUBLE diagnosis FOR QUICK AND ACCURATE REPAIR
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.

In general, each customer feels differently about a problem. It is important to fully understand the symptoms or conditions for a customer complaint.

Make good use of the two sheets provided, "Information From Customer" and "Diagnostic Worksheet", to perform the best troubleshooting possible.

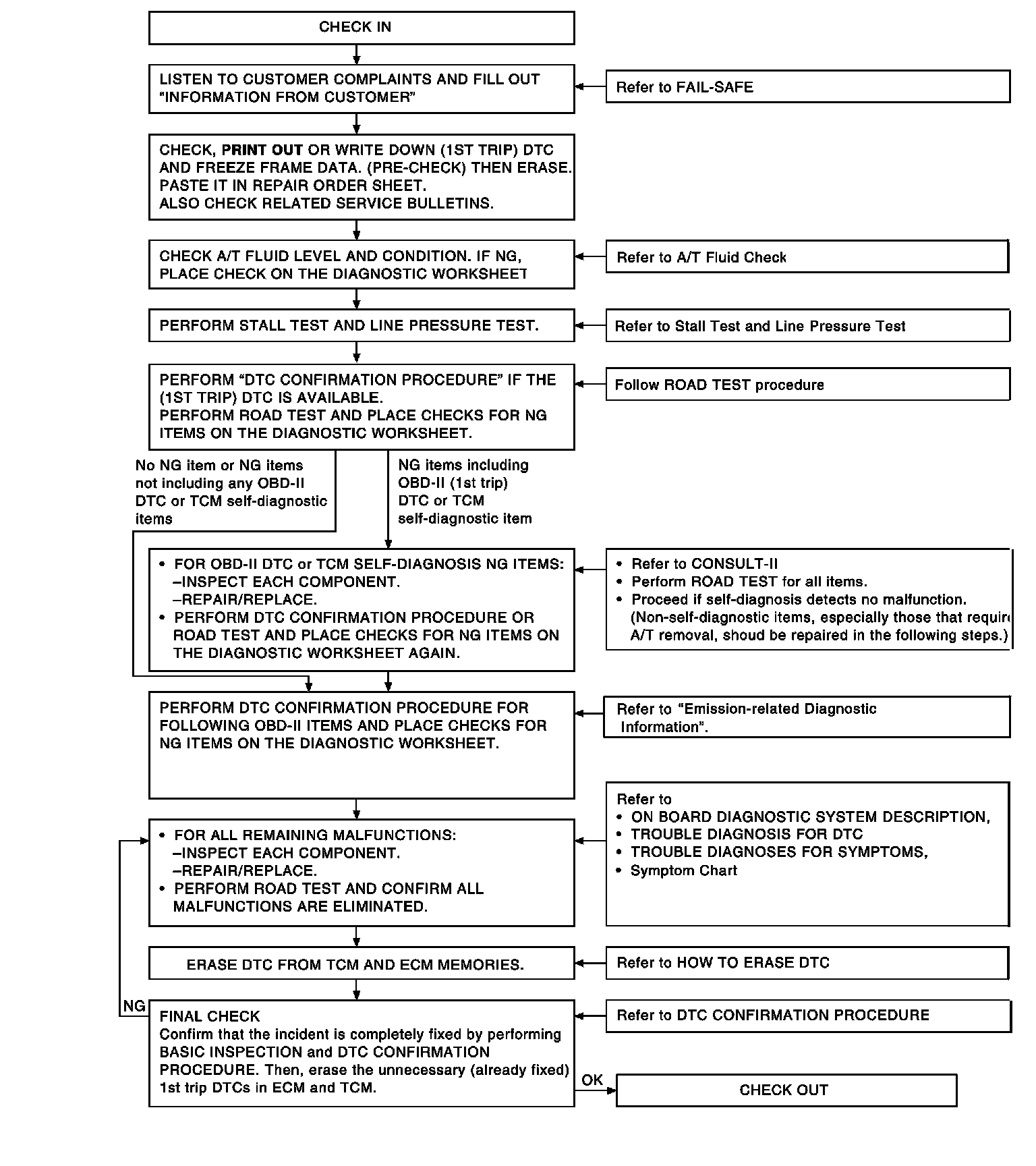

WORK FLOW CHART
